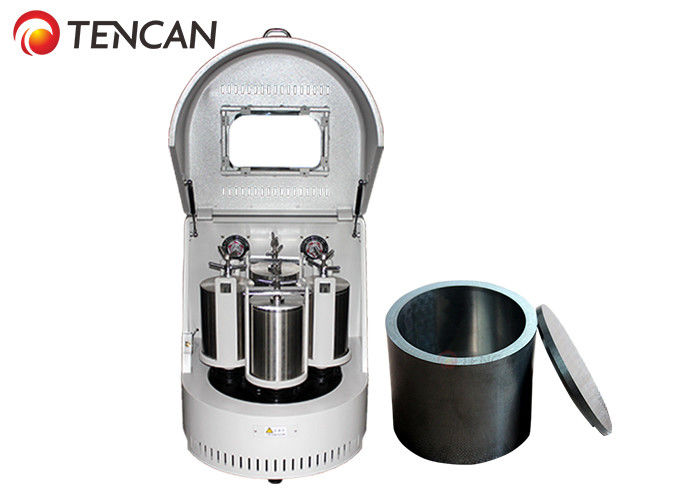

Semi - Circle 6l Laboratory Grinding Mill Compact Structure For Geology

Semi - Circle 6l Laboratory Grinding Mill Compact Structure For Geology

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-6A

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Carton+Foam or Plywood Case
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Lab Semi-circle Planetary Ball Mill Model No.: XQM-6A
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.75KW
Rotate Speed: 70-670 RPM Speed Control: Frequency Control
Total Volume: 6L Max Capacity: 1.98L
Highlight:

bench top mill

,

ball mill grinder

Product Description

Compact 6L Benchtop Planetary Ball Mill , Multi Application Fine Grinding Ball Mill



Overview



Semi-circle Planetary Ball Mill is a necessary machine used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle



Semi-circle Planetary Ball Mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



Applications



Semi-circle Planetary Ball Mill  is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Features



1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.





Technical Features



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc



Technical Parameters



Main Parameters of 6L 110 - 220v Semi-circle Planetary Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
Rotation
Speed
(rpm)
XQM-1A 0.75 220V-50Hz 750*470*590 35-335 70-670
XQM-2A 0.75 220V-50Hz 750*470*590 35-335 70-670
XQM-4A 0.75 220V-50Hz 750*470*590 35-335 70-670
XQM-6A 0.75 220V-50Hz 750*470*590 35-335 70-670





Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.



Semi - Circle 6l Laboratory Grinding Mill Compact Structure For Geology 0

Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



References for Matchable Jar Sizes with Semi-circle Round Planetary Ball Mill
Model No. Total Volume
(L)
Matchable Jar
Sizes
Matchable Jars
Quantity
Matchable Vacuum
Jar Sizes
XQM-0.2S 0.2L 50ml 2pcs or 4pcs 25ml
XQM-0.4A 0.4L 50ml, 100ml 2pcs or 4pcs 50ml
XQM-1A 1.0L 50ml, 100ml, 250ml 2pcs or 4pcs 50ml, 100ml
XQM-2A 2.0L 250ml, 500ml 2pcs or 4pcs 50ml, 100ml, 250ml
XQM-4A 4.0L 250ml, 500ml,1000ml 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml
XQM-8A 8.0L 1L, 2L 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml, 1L, 1.5L
XQM-10A 10.0L 1L, 2L, 2.5L 2pcs or 4pcs 1L, 1.5L, 2L
XQM-12A 12.0L 1L, 2L, 2.5L, 3L 2pcs or 4pcs 1L, 1.5L, 2L
XQM-16A 16.0L 2L, 3L, 4L 2pcs or 4pcs 1L, 1.5L, 2L, 3L











Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



Semi - Circle 6l Laboratory Grinding Mill Compact Structure For Geology 1



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
