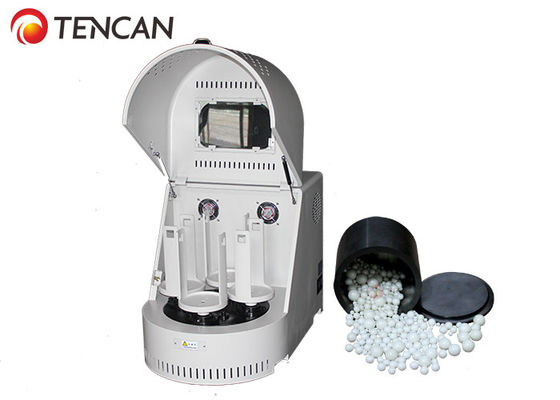

1.5KW Vertical Laboratory Ball Mill Machine , Variable Speed Laboratory Jar Mill

1.5KW Vertical Laboratory Ball Mill Machine , Variable Speed Laboratory Jar Mill

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-12A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Semi-circle Round Laboratory Ball Mill Model No.: XQM-12A
Total Volume: 12L Max Capacity: 3.96L
Rotate Speed: 70-580 Rpm Speed Control: Frequency Control
Voltage: 110V-60Hz Or 220V-50Hz Power: 1.5KW
High Light:

lab ball mill

,

laboratory ball mill machine

,

Vertical Laboratory Ball Mill

Product Description

4*3L Mill Jars 220V - 50Hz Vertical Laboratory Ball Mill With Variable Speed for fine powder milling



Overview

Vertical Laboratory Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.

Working Principle

Vertical Laboratory Ball Mill has four working positions which can be loaded with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.

Applications

Vertical Laboratory Ball Mill is widely used in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Features

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc


Technical Parameters


Main Parameters of 12.0L Vertical Semi-circle Round Laboratory Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)
RotationSpeed
(rpm)
XQM-0.4A 0.25 220V-50Hz
110V-60Hz
530*300*340 45-435 90-870
XQM-1A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-2A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-4A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-6A 0.75 220V-50Hz
110V-60Hz
750*470*590 35-335 70-670
XQM-8A 1.5 220V-50Hz
110V-60Hz
900*600*640 35-290 70-580
XQM-10A 1.5 220V-50Hz
110V-60Hz
900*600*640 35-290 70-580
XQM-12A 1.5 220V-50Hz
110V-60Hz
900*600*640 35-290 70-580


Accessories of Mill Jars & Balls

Available Mill Jars Matching with XQM-10A



Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.


1.5KW Vertical Laboratory Ball Mill Machine , Variable Speed Laboratory Jar Mill 0



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar





References for Matchable Jar Sizes with Semi-circle Round Planetary Ball Mill
Model No. Total Volume
(L)
Matchable Jar
Sizes
Matchable Jars
Quantity
Matchable Vacuum
Jar Sizes
XQM-0.2S 0.2L 50ml 2pcs or 4pcs 25ml
XQM-0.4A 0.4L 50ml, 100ml 2pcs or 4pcs 50ml
XQM-1A 1.0L 50ml, 100ml, 250ml 2pcs or 4pcs 50ml, 100ml
XQM-2A 2.0L 250ml, 500ml 2pcs or 4pcs 50ml, 100ml, 250ml
XQM-4A 4.0L 250ml, 500ml,1000ml 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml
XQM-8A 8.0L 1L, 2L 2pcs or 4pcs 50ml, 100ml, 250ml, 500ml, 1L, 1.5L
XQM-10A 10.0L 1L, 2L, 2.5L 2pcs or 4pcs 1L, 1.5L, 2L
XQM-12A 12.0L 1L, 2L, 2.5L, 3L 2pcs or 4pcs 1L, 1.5L, 2L
XQM-16A 16.0L 2L, 3L, 4L 2pcs or 4pcs 1L, 1.5L, 2L, 3L


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.

1.5KW Vertical Laboratory Ball Mill Machine , Variable Speed Laboratory Jar Mill 1




References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable




Lab roll ball mill/ planetary ball mill/ Sitrred ball mill
