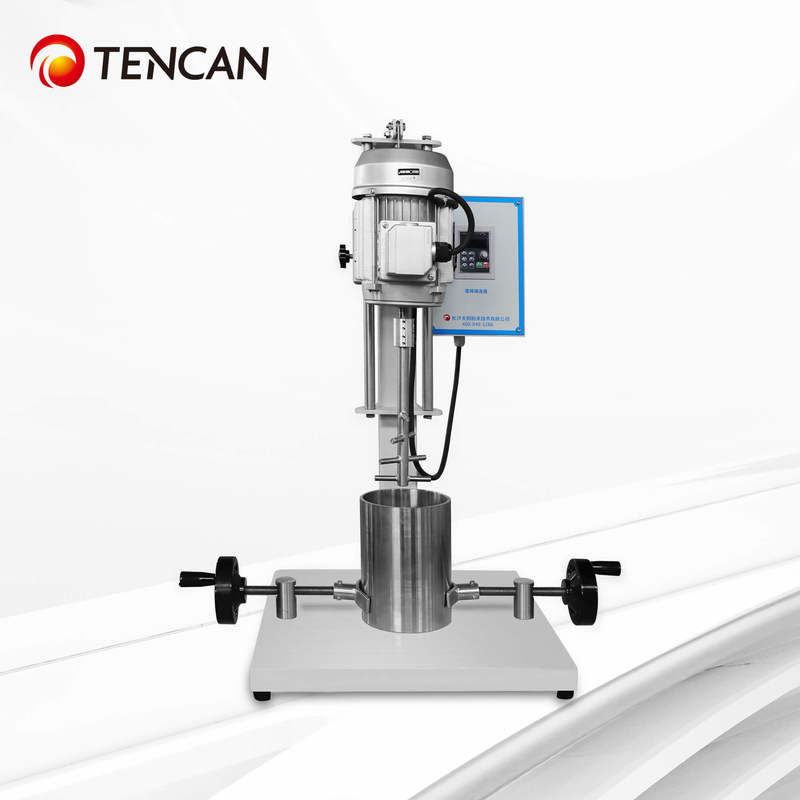

30L Heavy Stirred Ball Mill with Electric Lifting for Safe and Efficient Operation
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | JM-30L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Light Type Stirred Ball Mill | Model No.: | JM-30 |
|---|---|---|---|
| Voltage: | 3PH 380V-50Hz | Power: | 3.0KW |
| Rotate Speed: | 60-310 Rpm | Speed Control: | Frequency Control |
| Total Volume: | 30L | Max Capacity: | 10L |
| Highlight: | 30L electric lifting stirred ball mill,heavy stirred ball mill with warranty,efficient operation stirred ball mill |
||
Product Description
30L Heavy Type Stirred Ball mill Humanized Design for Operation & Electric Lifting & Falling
Overview
The Heavy Stirred Ball Mill is a high-efficiency grinding system designed for small-batch material processing, fine powder production, and laboratory research.
The mill consists of:
-

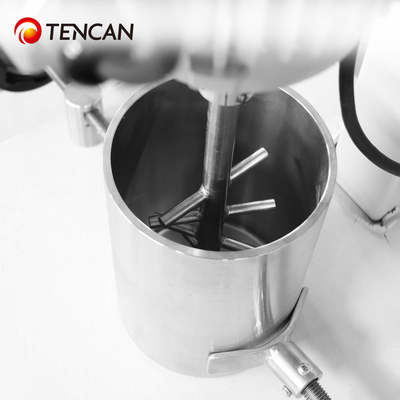

A jar with internal grinding media
-
A stirring mechanism
-
Auxiliary devices including a material recycling system, cooling unit, programmable timer, and speed controller
This stirred ball mill provides uniform particle size, high energy efficiency, and precise granularity, making it ideal for universities, research centers, and industrial laboratories engaged in new material development, coating research, and experimental powder preparation. Its compact design, low power consumption, and cost-effectiveness make it especially suitable for small-batch operations.
Working Principle
During operation:
-
The main axis rotates at high speed, causing the grinding media to move irregularly inside the jar
-
The material is subjected to impact, shear, and friction forces, reducing it to fine powder
-
Grinding results depend on the size, shape, and ratio of the grinding media
-
Generally, larger media produce coarser powders, while smaller media yield finer powders
-
Optimizing the media combination and rotation speed ensures uniform and high-quality particle size
Applications
Heavy Stirred Ball Mill is widely used in fields of zirconia silicate, zirconia, alumina oxide, ceramic, chemical, electronic material, magnetic material, paper-making, painting, non-metal minerals, new materials, coating, graphite, calcium carbonate, medicine, and so on.
Features
1. High utilization rate of energy, saving energy.
2. Granularity is adjustable by adjusting grinding time.
3. Less vibration, low noise.
4. Simple structure, easy operation.
5. Meet requirements of various processes, realize continuous or intermittent production.
6. Jar with jacket, easy to control the grinding temperature .
7. Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8. A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.
Technical Parameters
| Technical Parameters of Tencan HeavyType Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-30L | 60-310 | 30 | 10.50 | 380V/3.0KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤10mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-50L | 60-140 | 50 | 17.50 | 380V/4.0KW | ≤10mm | ≤1μm | ||
| JM-100L | 60-140 | 100 | 35.00 | 380V/7.50KW | ≤20mm | ≤1μm | ||
| JM-200L | 60-110 | 200 | 70.00 | 380V/11KW | ≤20mm | ≤1μm | ||
| JM-300L | 60-110 | 300 | 100.00 | 380V/15KW | ≤20mm | ≤1μm | ||
| JM-500L | 60-90 | 500 | 170.00 | 380V/18.50KW | ≤20mm | ≤1μm | ||
| JM-600L | 60-90 | 600 | 200.00 | 380V/22KW | ≤20mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
