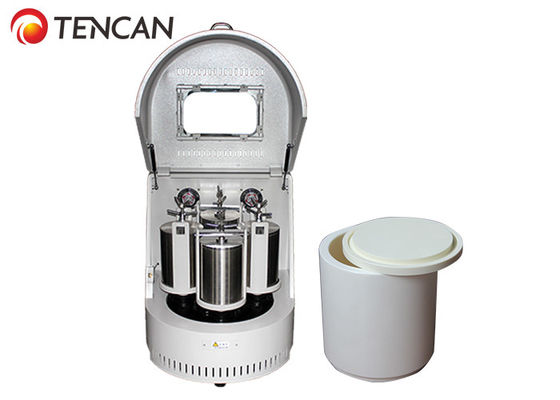

Vertical Laboratory Ball Mill with Variable Speed Control for Stable and Uniform Grinding

4*3L Mill Jars 220V - 50Hz Vertical Laboratory Ball Mill With Variable Speed for fine powder milling

Overview

The Vertical Laboratory Ball Mill is an advanced milling system designed for high-tech material processing, including fine grinding, powder mixing, nano-powder preparation, new material development, and small-batch production.

This TENCAN planetary ball mill features a compact footprint, high efficiency, low noise, and full functionality, making it an ideal choice for R&D institutions, universities, and corporate laboratories.

Equipped with four independent working positions, the mill allows up to four samples to be processed simultaneously. When paired with vacuum grinding jars, it also supports vacuum or inert atmosphere milling, enabling safe handling of moisture- or oxygen-sensitive materials.

Working Principle

The Vertical Laboratory Ball Mill consists of four jar positions mounted on a rotating turntable. During operation:

• The turntable rotates, while each jar simultaneously performs high-speed planetary motion

• Grinding media inside the jars generate intense impact, friction, and shear forces, crushing and mixing the materials

• The system supports both dry and wet grinding methods, accommodating a wide range of materials

• Minimum particle size can reach 0.1 μm or nano-scale powders, delivering uniform and reproducible results

This design ensures efficient energy transfer, preventing material sedimentation and promoting consistent grinding for advanced material research and laboratory applications.


Applications

Vertical Laboratory Ball Mill is widely used in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Features

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features


Technical Parameters


Accessories of Mill Jars & Balls

Available Mill Jars Matching with XQM-10A

Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
