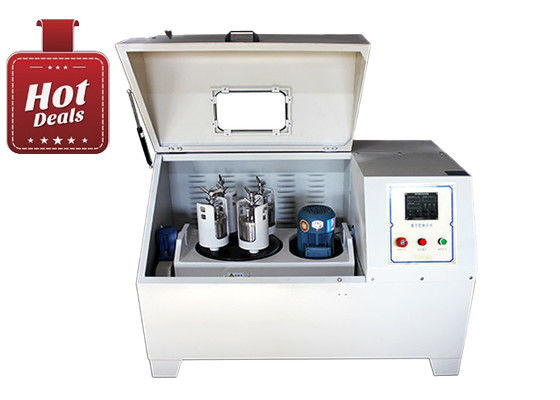

Full-Directional Laboratory Ball Mill for Nano Powder Preparation with Multi-Jar Grinding

Features

1. 360° Omnidirectional Planetary Motion
   Eliminates grinding dead zones, producing finer and more uniform powders.

2. Gear Transmission System
   Ensures excellent consistency, stability, and repeatability of experimental results.

3. Four-Station Simultaneous Processing
   Enables preparation of up to four different samples in one operation.

4. Intelligent Control System
   Variable frequency drive and programmable control for flexible operation.

5. Anti-Sedimentation Design
   Effectively prevents material sinking and sticking to the jar walls.

6L Full-directional laboratory ball mill For Nano powder Making With 4*1.5L Mill Jars

Overview

The Full-directional Laboratory Ball Mill is an advanced milling system designed for high-tech material processing, including fine grinding, powder mixing, nano-powder preparation, new material development, and small-batch production.

This TENCAN planetary ball mill features a compact footprint, high grinding efficiency, low noise operation, and comprehensive functionality, making it an ideal solution for R&D institutions, universities, and enterprise laboratories.

Equipped with four independent working stations, the mill allows up to four samples to be processed simultaneously, significantly improving laboratory efficiency. When fitted with vacuum grinding jars, the system also supports vacuum or inert atmosphere milling, enabling safe processing of oxygen- or moisture-sensitive materials.

Working Principle

The Full-directional Laboratory Ball Mill is equipped with four grinding jars mounted on a rotating turntable. During operation:

• The turntable rotates, driving each grinding jar to revolve around its own axis

• Simultaneously, each jar performs a 360° omnidirectional rotation

• Grinding media inside the jars generate high-energy impact, friction, and shear forces

This complex planetary motion enables efficient grinding and mixing of materials using dry or wet milling methods. The system can process materials of varying hardness and particle sizes, achieving a minimum particle size down to 0.1 μm.

Due to its uniform energy distribution and absence of dead zones, the mill delivers highly consistent and repeatable grinding results.

Advantages:
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.,

Technical Features

Technical Parameters

Accessories of Mill Jars & Balls

Available Mill Jars:

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.

Available Mill Balls:

304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.

TENCAN Planetary ball mills are available in different versions.
