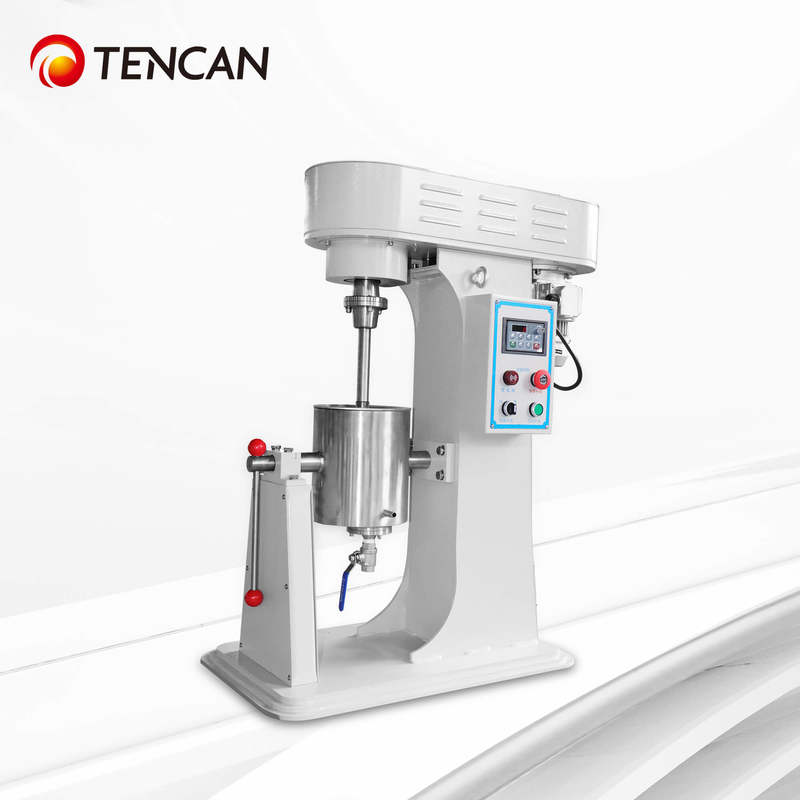

TENCAN JM Chocolate Ball Mill with Water Cooling Low Noise Design for Smooth Cocoa Processing
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | JM-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Light Type Stirred Ball Mill | Model No.: | JM-50 |
|---|---|---|---|
| Voltage: | 380V-50Hz | Power: | 4.0KW |
| Rotate Speed: | 60-140 Rpm | Speed Control: | Frequency Control |
| Total Volume: | 50L | Max Capacity: | 17.5L |
| Highlight: | water-cooled chocolate ball mill,low noise cocoa ball mill,TENCAN JM stirred ball mill |
||
Product Description
TENCAN JM-50 Chocolate Ball Mill – 50L with Water Cooling Jacket, Low Noise <60 dB, OEM Available
Overview

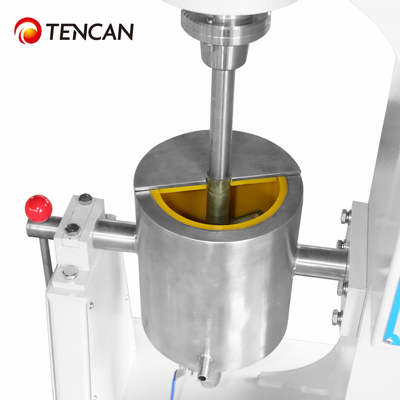

The TENCAN JM-50 Chocolate Ball Mill is a high-efficiency grinding system designed for ultra-fine particle size reduction in industrial applications. It consists of a grinding chamber with internal media, a stirring mechanism, and auxiliary systems such as a material recirculation system, temperature control jacket, programmable timer, and variable speed drive.
Its compact design, energy-efficient operation, and low-noise performance make it suitable for academic research, corporate R&D, and industrial laboratories, especially for material development, coating research, and specialty powder processing.
Working Principle
The central drive shaft rotates at high speed, causing the grinding media to move in a chaotic, multi-directional motion. This generates strong impact, shear, and friction forces on the materials, resulting in micron-sized powders.
Grinding performance depends on the size, shape, and combination of grinding media. Generally, smaller media produce finer powders, while larger media provide coarser particles. Optimal media combinations and controlled rotation speeds ensure uniform particle size and high grinding efficiency.
Applications
The JM-50 is widely used in industries such as:
-
Advanced Ceramics: Zirconium silicate, alumina composites
-
Specialty Chemicals: Pigments, powders for coatings
-
Electronics & Magnetic Materials
-
Paper Coatings & Surface Treatments
-
Mineral Processing & New Material Development
-
Graphite Modification & Pharmaceutical Formulations
-
Calcium Carbonate Refining
It is ideal for ultra-fine grinding, material homogenization, and specialized powder development.
Features
-
High Energy Conversion Efficiency: Reduces operating costs
-
Adjustable Particle Size: Control fineness via processing time and speed
-
Low Noise Operation: Advanced vibration reduction, <60 dB
-
User-Friendly Design: Simplified operation and maintenance
-
Flexible Operation Modes: Supports batch or continuous processing
-
Temperature Control Jacket: Maintains stable thermal conditions
-
Customizable Configurations: Optional programmable control, speed regulation, and material recirculation
-
Multiple Chamber Materials: 316L stainless steel, alumina ceramic, polyurethane lining, yttria-stabilized zirconia
Technical Parameters
| Technical Parameters of Tencan HeavyType Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-30L | 60-310 | 30 | 10.50 | 380V/3.0KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤10mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-50L | 60-140 | 50 | 17.50 | 380V/4.0KW | ≤10mm | ≤1μm | ||
| JM-100L | 60-140 | 100 | 35.00 | 380V/7.50KW | ≤20mm | ≤1μm | ||
| JM-200L | 60-110 | 200 | 70.00 | 380V/11KW | ≤20mm | ≤1μm | ||
| JM-300L | 60-110 | 300 | 100.00 | 380V/15KW | ≤20mm | ≤1μm | ||
| JM-500L | 60-90 | 500 | 170.00 | 380V/18.50KW | ≤20mm | ≤1μm | ||
| JM-600L | 60-90 | 600 | 200.00 | 380V/22KW | ≤20mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
