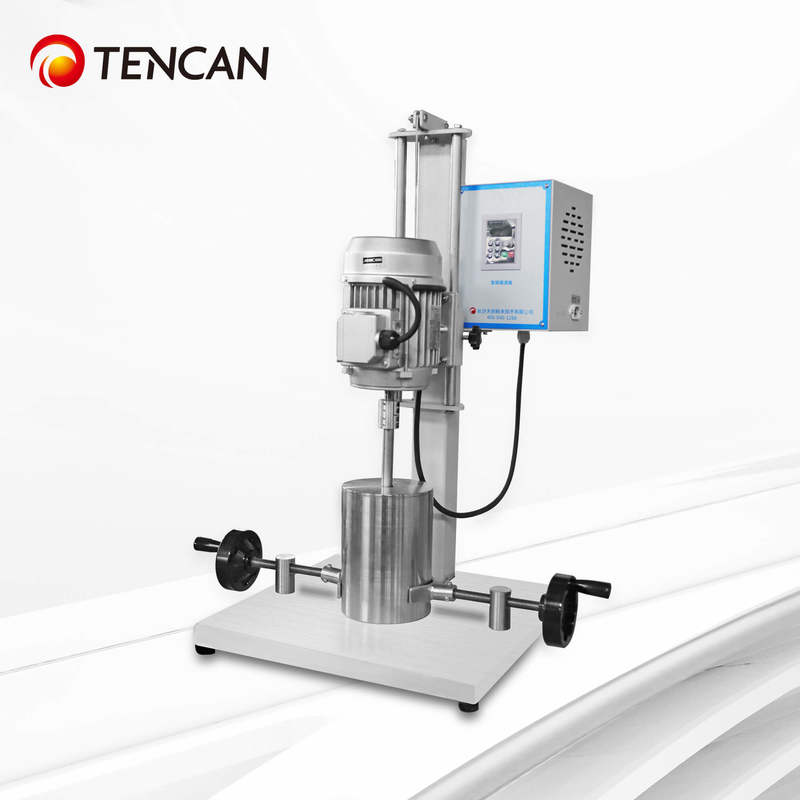

JM Stirred Ball Mill for Ceramic Coating with Uniform Dispersion and Stable Grinding
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | Tencan |
| Certification: | ISO CE |
| Model Number: | JM-1L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton & Plywood case with Foam |
| Delivery Time: | >=7 |
| Payment Terms: | T/T |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Product Model: | JM-1L | Max Capacity: | 0.35L |
|---|---|---|---|
| Power: | 0.37KW | Voltage: | 220V/50Hz |
| Output(kg/h): | 0.1 - 0.35 Kg/h | Range Of Spindle Speed(r.p.m): | 50 - 1400 R.p.m |
| Output Size (mesh): | 400-12500 Mesh | ||
| Highlight: | JM stirred ball mill for ceramic coating,stirred ball mill with uniform dispersion,stable grinding stirred ball mill |
||
Product Description
Product Description:
The Tencan Stirred Ball Mill represents a sophisticated vertical grinding system with extensive application capabilities. Engineered for processing materials with feed sizes ranging from 0.1 to 10 mm, this advanced milling equipment features adjustable spindle speeds from 50 to 1400 RPM, allowing precise optimization for various material characteristics. Backed by Tencan's comprehensive 12-month warranty, this machine delivers exceptional operational reliability and consistent performance. Its innovative agitation mechanism ensures superior mixing homogeneity, making it particularly suitable for pharmaceutical compounds, specialty chemicals, petrochemical products, food ingredients, and other precision processing applications.
Working Principle

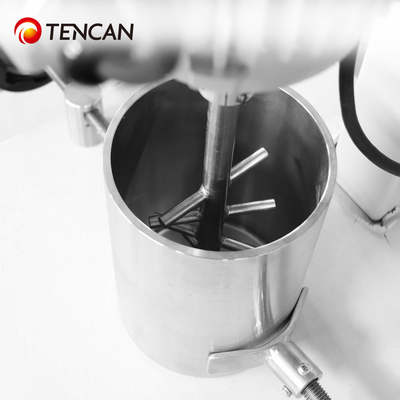

The main shaft drives the agitator to rotate at high speed, causing the grinding media to move in an irregular three-dimensional pattern. Through continuous collision, extrusion, crushing, and shear, the grinding media efficiently reduce the material into fine powder.
Grinding performance is influenced by the size, shape, and proportion of the grinding media. Larger media generate stronger impact forces, resulting in coarser particle sizes, while smaller media provide finer grinding results. Optimal grinding efficiency is achieved by using a proper combination of media sizes matched with suitable rotational speed, ensuring uniform particle size distribution and stable milling performance.
Features
1. High Energy Utilization
Delivers extremely high power density, improving energy efficiency and reducing overall energy consumption.
2. Adjustable Particle Size
Final fineness can be precisely controlled by adjusting the material residence time inside the milling chamber.
3. Low Vibration & Noise
Stable operation with minimal vibration and reduced noise levels, suitable for laboratory and continuous operation environments.
4. Simple & Reliable Structure
Compact design with straightforward operation and easy maintenance.
5. Flexible Operating Modes
Supports both continuous and batch processing to meet diverse process requirements.
6. Temperature Control Capability
Jacketed milling cylinder allows effective control of grinding temperature, protecting heat-sensitive materials.
7. Customizable Configurations
Optional features available, including timer, variable speed control, circulation system, and temperature regulation.
8. Multiple Material Options
Grinding jars and stirring components are available in various materials such as stainless steel, corundum ceramic, polyurethane, and zirconia, enabling compatibility with different sample types and purity requirements.
Technical Parameters:
| Model | Rotated Speed (rpm) | Powde (kw) | Material Capacity (L) | Feed Size (mm) | Output Granularity (micron) |
| Jm-1L | 50-1400 | 0.37 | 0.35 | ≤5 | ≤1 |
| JM-2L | 50-1400 | 0.37 | 0.7 | ≤ 5 | ≤ 1 |
| JM-3L | 50-1400 | 0.37 | 1.05 | ≤ 5 | ≤ 1 |
| JM-5L | 60-600 | 0.75 | 1.75 | ≤ 5 | ≤ 1 |
| JM-10L | 60-560 | 1.5 | 3.5 | ≤ 10 | ≤ 1 |
| JM-15L | 60-440 | 2.2 | 5.25 | ≤ 10 | ≤ 1 |
| JM-20L | 60-440 | 2.2 | 7 | ≤ 10 | ≤ 1 |
| JM-30L | 60-310 | 3 | 10.5 | ≤ 10 | ≤ 1 |
| JM-50L | 60-140 | 4 | 17.5 | ≤ 10 | ≤ 1 |
| JM-100L | 60-140 | 7.5 | 35 | ≤ 20 | ≤ 1 |
| JM-200L | 60-110 | 11 | 70 | ≤ 20 | ≤ 1 |
| JM-300L | 60-110 | 15 | 100 | ≤ 20 | ≤ 1 |
| JM-500L | 60-90 | 18.5 | 170 | ≤ 20 | ≤ 1 |
| JM-600L | 60-90 | 22 | 200 | ≤ 20 | ≤ 1 |
Table of Warranty Period for Different Parts of Machine:
Tencan Warranty and Service Promise:
All Tencan equipment and accessories are covered by a 12-month warranty period commencing from the date of customer receipt and verification. Our warranty program includes:
Complete unit replacement within the first 30 days for qualifying issues
Comprehensive repair services throughout the warranty period
Covered circumstances include:
Transportation-related damages
Motor and frequency converter failures
Critical component or main system malfunctions
Company Information:
Changsha Tianchuang Powder Technology Co., Ltd., established in 2006 and headquartered in China's Hunan Province, stands as a leading manufacturer specializing in laboratory milling solutions. Our extensive product range incorporates innovative impact-based processing technology, dual wet/dry grinding capabilities, and user-friendly operational designs. These advanced features enable researchers to effectively scale experimental results to production levels. Adhering to our core philosophy of "Customer Primacy, Perpetual Quality Focus," we have earned recognition from prestigious institutions including Harvard University, Peking University, Tsinghua University, and major corporations like Foxconn, BYD, and CASC. We remain committed to delivering superior equipment and exceptional service to our global clientele.
Packing and Shipping:
Each Stirred Ball Mill unit receives comprehensive protection through:
Multi-layer air bubble film wrapping
Industrial-grade export cartons
Customized shipping solutions based on specific customer requirements
FAQ:
Warranty Coverage:
Our equipment is backed by a 12-month warranty. For technical support, please contact our service hotline: 0086 13357214760.
Nano-Scale Grinding Capability:
Achieving nano-scale particle sizes depends on material properties and process parameters. Most materials can be processed to nano dimensions. We offer complimentary sample testing services for material evaluation.
Delivery Timeline:
Standard models are typically available from stock. Packaging requires 3 business days post-payment confirmation, with approximately 5 days for courier delivery. Total lead time averages 10 days after payment processing.
Sample Testing Services:
We provide complimentary grinding trials for customer-supplied materials prior to purchase decisions.
Company Classification:
We are a direct manufacturer and among China's largest producers of laboratory milling equipment.
Minimum Laboratory Model:
Our compact XQM-0.4A model (0.4L capacity) measures 53×30×34 cm with 26 kg weight. We offer comprehensive sizing options from 1L to 100L capacities.
Carbon Black Processing:
For challenging materials like carbon black that tend to agglomerate, we recommend our full-directional planetary ball mills, which have demonstrated successful results in preventing material sedimentation and aggregation.
