Product Overview

The Purification Glove Box from Changsha Tencan creates a highly controlled working atmosphere with minimal moisture and oxygen levels, making it suitable for handling air-sensitive materials. The system integrates a sealed main chamber, antechamber, gas purification module, digital control panel, vacuum components, and a real-time monitoring system. It can also be configured to operate alongside auxiliary laboratory equipment such as laser systems, vacuum deposition units, drying chambers, environmental analyzers, and exhaust treatment modules for fumes and volatile substances.

Engineered with a user-friendly layout and modern industrial design, Tencan glove boxes provide long-duration stable performance. Automated operation, simplified upkeep, and dependable functionality make them a reliable solution for both scientific research and production workflows.

Technical Development

With continuous investment in R&D, Changsha Tencan has built robust strengths in engineering design and technological advancement. Every step of the manufacturing cycle is subjected to strict quality control to ensure consistent output of high-level, precision-built products. Upholding standardized processes and customer-focused principles, we convert user feedback into ongoing optimization, continually delivering improved glove box systems that adapt to the changing demands of laboratories and industrial environments.

Purification Glove Box

A Purification Glove Box is a specialized laboratory system designed to maintain an ultra-clean, oxygen-free and moisture-free environment by continuously circulating high-purity inert gas through the sealed chamber. Often referred to as an inert atmosphere glove box or gas-protection workstation, it effectively removes O₂, H₂O, and organic contaminants. This equipment is essential in research areas that require strictly controlled conditions—such as lithium battery development, advanced materials engineering, semiconductor fabrication, supercapacitor studies, precision lighting, welding technologies, OLED and MOCVD processes. It is also applicable in biological sciences, including anaerobic microbial cultivation and low-oxygen cell culture.

Working Principle

The glove box uses a fully sealed gas-circulation loop that connects the main chamber with the purification column filled with high-efficiency adsorbents for moisture and oxygen removal. Under PLC supervision, the system drives the working gas through pipelines and circulation blowers to pass repeatedly through the purification material. With each cycle, impurities are trapped, and purified gas re-enters the chamber. Over time, the internal levels of H₂O and O₂ drop to below 1 ppm. When the purification material becomes saturated after extended use, it can be regenerated to restore full performance and continue long-term operation.

Main Applications

• Fundamental physical and chemical experiments

• Manufacturing and research of specialty lighting

• Lithium battery prototyping and production

• Studies of alkali and highly reactive metals

• Catalyst development

• Precision welding technologies (laser, plasma, brazing)

• Medical and biological engineering research

• Pharmaceutical packaging and formulation

• Semiconductor manufacturing processes

• Chelation chemistry

• Ceramic and metal powder investigation

• Industrial processes requiring high-temperature vacuum conditions

  Technical Specifications & Features

• Atmosphere Control: Achieves extremely low oxygen and moisture levels (<0.1 ppm)

• Leak-Tight Structure: Overall leakage rate ≤0.001% volume/hour

• Valve Configuration: Modular solenoid valve system for dependable sealing and easy service

• Transfer System: Lightweight, smooth-operating antechamber door for efficient material loading

• Exterior Variants: Multiple shell and appearance options suitable for different lab styles

• User Interface: Simple, intuitive touchscreen control panel

• Gas Circulation: Oil-free, vacuum-free closed-loop system for stable operation

• Regeneration: Fully automated regeneration cycle for purification materials

• Pressure Control: Automatic pressure balancing with adjustable ±15 mbar working range

• Chamber Purge: Rapid automatic purging for fast drying and solvent-safe ventilation

• Foot Pedal: Convenient hands-free internal pressure adjustment

• Data Recording: Continuous system data logging and preservation

• Alarm Mechanisms: Full monitoring and alerts for pressure, regeneration, and operational abnormalities

• Sealing Technology: Multi-layer patented sealing structure for long-lasting stability

  Key Advantages

• High-precision environmental control for handling sensitive materials

• Modular build improves system reliability and maintenance convenience

• Smart automation reduces manual workload and simplifies operation

• Configurable system architecture to match specialized application needs

• Proprietary sealing design ensures long-term airtight performance

Laboratory Standard Glove Box

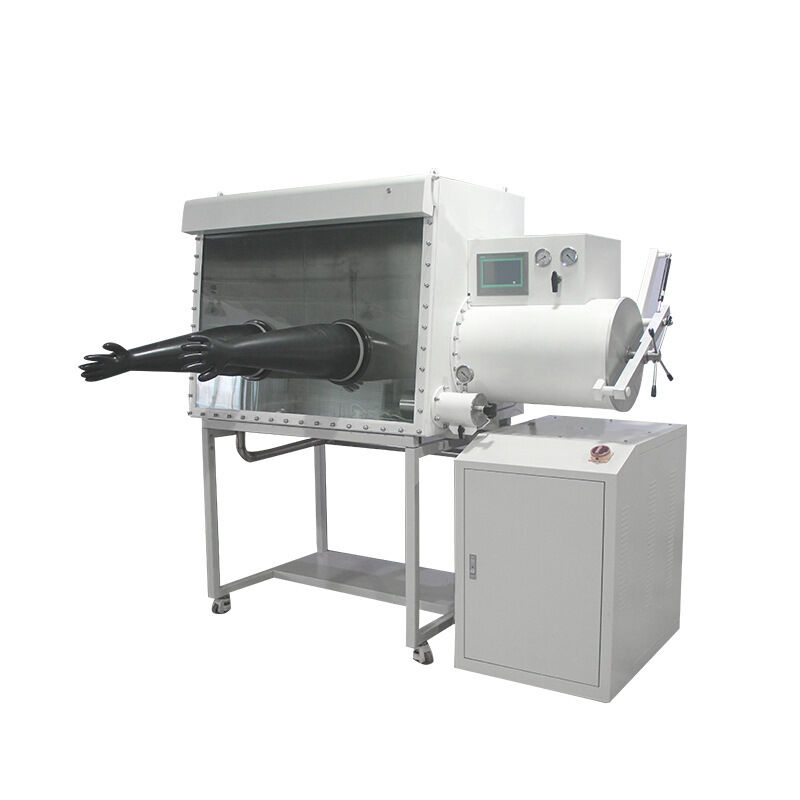

1,Configuration of Laboratory Standard Glove Box

1.1 Glove box chamber

1.2 Main Antechamber

1.3 GP20 Gas Purification System

1.4 Mini Antechamber

2. Main Chamber

2.1 Interior Dimensions
Usable workspace: 1200 mm (L) × 900 mm (H) × 750 mm (W bottom).

2.2 Glove Ports
Two Ø220 mm glove rings made from corrosion-resistant hard aluminum alloy, suitable for organic processing environments.

2.3 Gloves
Imported butyl rubber gloves, model 8B1532 (USA).
Diameter 8 inches, thickness 0.4 mm, offering excellent resistance to chemicals, aging, and moderate heat.

2.4 Observation Window
Forward-tilted operation panel with 8 mm detachable tempered safety glass.
Highly transparent, abrasion-resistant, and corrosion-resistant.
Sealed with a 3/8" OMEGA gasket.

2.5 Operating Pressure Range
Maintains stable positive or negative pressure from –12 mbar to +12 mbar.
Automatic protection activates if pressure exceeds the safe range.

2.6 Lighting
Built-in anti-glare, energy-saving illumination with soft, comfortable lighting.

2.7 Internal Power Supply
Pre-installed sealed power interface board.
Input: AC 220V, 50Hz, single-phase, 10A.

2.8 Utility Ports
Multiple KF-40 universal interfaces for gas, liquid, and signal connections.

2.9 Shelving
Three internal adjustable shelves provided.

2.10 Support Frame
Cabinet stand height 950 mm with caster wheels enabling leveling, mobility, and locking.

2.11 Airtight Performance
Proprietary sealing structure ensuring a leakage rate of <0.001 vol%/hr.

3. Transfer Chambers

3.1 Structure
Cylindrical 304 stainless steel construction with flange-mounted connections.

3.2 Large Antechamber
Diameter 360 mm, length 600 mm.
Features automatic valve operation for vacuum/purging cycles.
Programmable cycles minimize operator waiting time.

3.3 Small Antechamber
Diameter 150 mm, length 300 mm, manually controlled for air extraction and refill.

3.4 Internal Trays
Large chamber: polished sliding tray with extendable movement.
Small chamber: movable sliding platform included.

3.5 Vacuum Level
Achieves ≤ –0.1 MPa, equipped with German WIKA vacuum gauge.

4. Circulation & Purification Control System

4.1 Control System

4.1.1 Operation & Interface
Features auto-diagnosis, auto-restart, intelligent pressure regulation, and adaptive control.
All functions—including circulation, vacuum, and regeneration—are managed via Siemens PLC touchscreen (Chinese/English switchable).

4.1.2 Pressure Management
Touchscreen-controlled pressure with automatic balancing within set limits.

4.1.3 Foot Pedal
Allows fine pressure adjustments during experiments without stopping work.

4.2 Purification Circulation

4.2.1 Atmosphere Precision
Maintains <1 ppm H₂O and O₂, with 0.01 ppm detection accuracy.

4.2.2 Automated Control
PLC-driven evacuation, circulation, heating, and regeneration—no manual supervision needed.

4.2.3 Working Gas
Nitrogen or argon (99.999% purity required).

4.2.4 Circulation Fan
Variable-frequency high-speed fan (0–100 m³/h), Siemens-controlled, enclosed in pressure-tested stainless housing.

4.2.5 Dual Purification Columns
Each column contains:

• 5 kg BASF Cu-based catalyst (deoxygenation, removes 65 L O₂)

• 5 kg UOP molecular sieve (removes 2.2 kg H₂O)

4.2.6 Purification Valve Block
German Burkert fully-automatic modular electric valve system.

4.2.7 Filtration
HEPA-grade 0.3 μm high-efficiency filter.

4.3 Regeneration System

Uses N₂/H₂ or Ar/H₂ (5–10% H₂) mixture for full regeneration, restoring adsorption capacity.

4.4 Display & Monitoring

Siemens PLC touchscreen with multilingual interface, intuitive menus, and data export support.

5. Vacuum Pump

UK Edwards RV12 pump, 12 m³/h pumping speed.
Independently switchable and programmable shutdown via touchscreen to reduce energy consumption.

6. Solvent Filtration Unit

External solvent adsorption module prevents contamination of the purification column.
Contains 6 kg activated carbon for removing volatile organics.

7. Moisture Analyzer

British Michell analyzer, range 0–1000 ppm, ceramic alumina sensing element.
Fast response, corrosion-resistant, wide detection range.

8. Oxygen Analyzer

U.S. AVCRAY electrochemical analyzer, range 0–1000 ppm.
Electrochemical sensor avoids instability issues of zirconia sensors in solvent environments.

9,Specifications of Standard Model of Purification Glove Box
