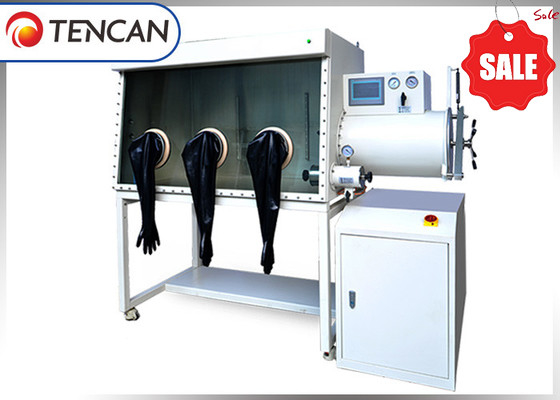

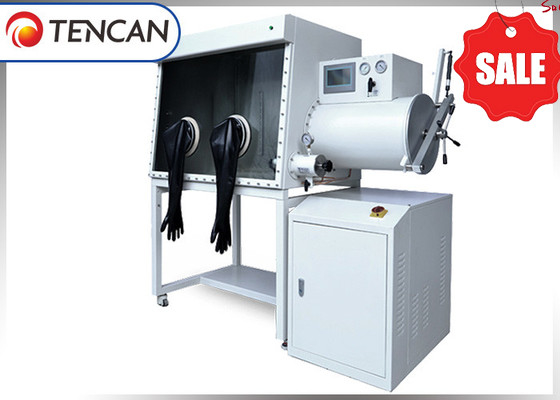

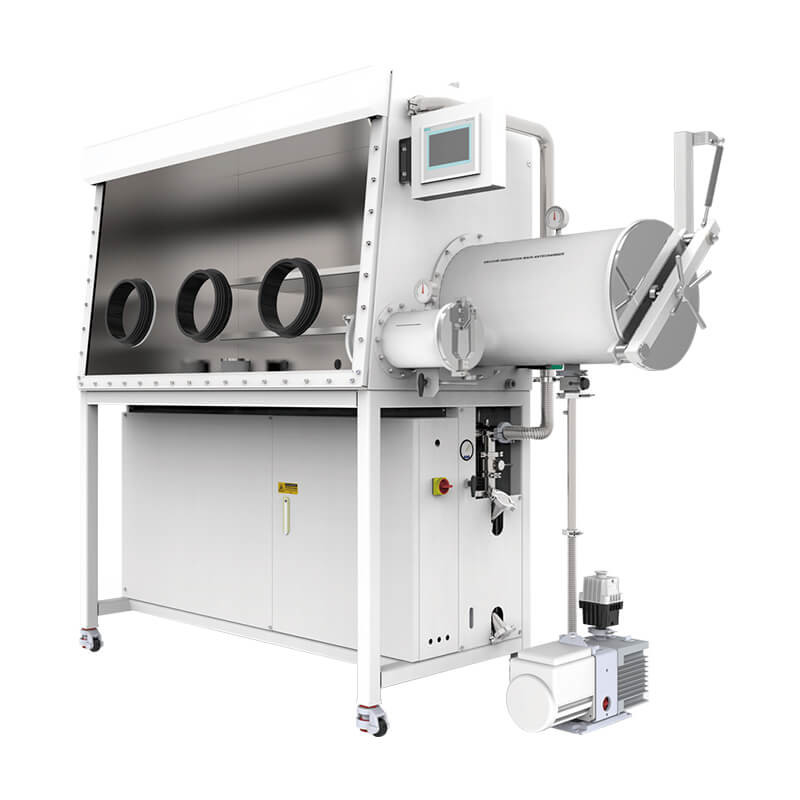

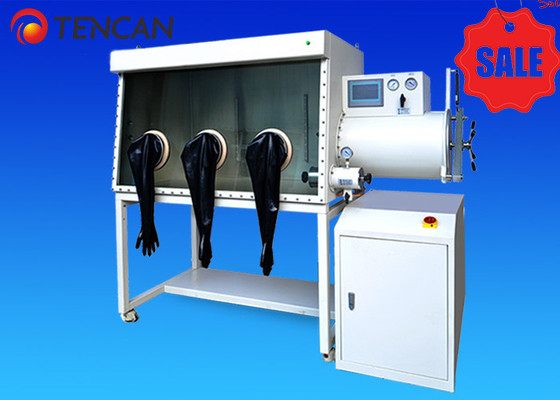

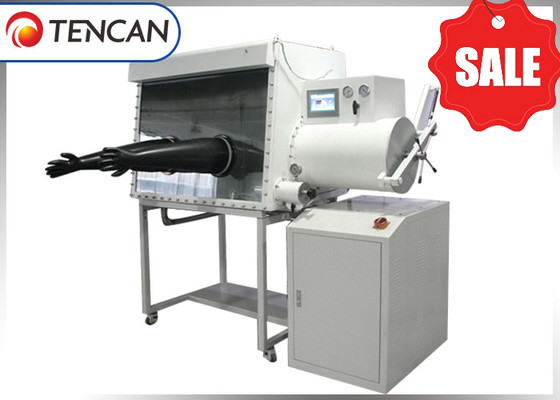

Lab Standard Purification GBP1000D-4 1200 Inert Gas Glove Box with Two-sided Working Positions by Changsha Tencan

Lab Standard Purification GBP1000D-4 1200 Inert Gas Glove Box with Two-sided Working Positions by Changsha Tencan

Product Overview

The Changsha Tencan Purification Glove Box establishes a controlled environment free from water and oxygen, ideal for sensitive material processing. The system comprises a main chamber, transfer unit, gas purification system, control panel, vacuum subsystem, and monitoring interface. It supports integration with specialized production equipment including laser systems, vacuum coating units, drying ovens, atmosphere monitoring devices, and filtration systems for fumes, solvents, and gases.

Designed with an ergonomic and modern appearance, Tencan glove boxes deliver extended continuous operation with automated controls, straightforward maintenance, and reliable performance, making them the preferred choice for research and industrial applications.

Technical Development

Through years of dedicated development, Changsha Tencan has established strong capabilities in product innovation and engineering design. Each manufacturing phase undergoes rigorous quality verification to ensure consistent delivery of advanced, high-performance products. Committed to standardization and customer-centric values, we transform client trust into continuous improvement, consistently creating innovative solutions that meet evolving laboratory and production needs.

Purification Glove Box

Purification Glove Box is laboratory equipment designed to create a controlled atmosphere by filling the chamber with high-purity inert gas while continuously filtering out impurities such as O₂, H₂O, and organic vapors. Also known as a vacuum glove box or inert gas protection chamber, its primary function is to eliminate oxygen, moisture, and organic gases. It is widely used in ultra-clean environments free from O₂, H₂O, and dust—such as in lithium-ion battery and material research, semiconductor manufacturing, supercapacitors, specialized lighting, laser welding, brazing, material synthesis, OLED, and MOCVD processes. Additionally, it supports biological applications including anaerobic bacterial culture and hypoxic cell incubation.

Working Principle
The glove box operates through a closed-loop gas circulation system between the main chamber and the purification column, which contains adsorbents for H₂O and O₂ removal. Under PLC control and monitoring, the working gas flows continuously via pipelines and circulation blowers. As the gas passes through the purification column, moisture and oxygen are adsorbed, and the purified gas returns to the chamber. Over repeated cycles, the concentrations of H₂O and O₂ in the chamber gradually decrease, ultimately reaching levels below 1 ppm. The purification column can become saturated after prolonged use but is regenerable for repeated operation.

Main Applications

• Physical and chemical research

• Development and production of specialty lighting

• Lithium-ion battery R&D and manufacturing

• Alkali metal studies

• Catalyst research

• Laser and plasma welding

• Medical and bioengineering applications

• Pharmaceutical production and packaging

• Semiconductor industry processes

• Chelate chemistry studies

• Ceramic and metal powder research

• Industrial high-temperature vacuum processing

Technical Specifications & Features

Environmental Control: Maintains ultra-low moisture and oxygen levels (<0.1 PPM)
Leakage Integrity: Maximum leakage rate ≤0.001% volume/hour
Valve System: Modular solenoid valve configuration ensures reliable sealing performance and simplified maintenance
Access Design: Specially engineered transfer chamber door offers lightweight operation and smooth accessibility
Aesthetic Options: Multiple exterior designs available to accommodate diverse user preferences
Control Interface: User-friendly touchscreen for intuitive system operation
Gas Management: Closed-loop circulation system operates without oil or vacuum requirements
Regeneration System: Fully automated regeneration control
Pressure Regulation: Automated pressure management with adjustable working range of ±15 mbar
Chamber Purge: Automated box cleaning function enables rapid drying, gas-efficient operation, and safe solvent handling
Foot Control: Integrated foot switch for convenient internal pressure adjustment
Data Logging: Automatic system data recording and storage
Safety Alerts: Comprehensive alarm system for regeneration status, circulation pressure, and operational errors
Sealing Technology: Protected by multiple sealing patents

Key Advantages

• Advanced environmental control for sensitive material processing

• Modular component design for enhanced reliability and serviceability

• Intelligent automation systems reduce operational complexity

• Flexible configuration options meet specific application requirements

• Patented sealing solutions ensure long-term operational integrity

Laboratory Standard Glove Box

1,Configuration of Laboratory Standard Glove Box

1.1 Glove box chamber

1.2 Main Antechamber

1.3 GP20 Gas Purification System

1.4 Mini Antechamber

2,Box

2.1 Box space size: 1 2 0 0mm (length) x 900mm (height) x 750mm (bottom width).

2.2 Glove opening: diameter 220mm, made of hard aluminum alloy material, resistant to organic atmosphere corrosion.

2.3 Gloves: American brand, model 8B1532, glove diameter 8 inches, thickness 0.4mm, butyl rubber material, corrosion resistance, aging resistance, and certain hightemperature resistance.

2.4 Front viewable window: With a tilted operating surface and a detachable 8mmsafety tempered glass front window, it is wear-resistant, corrosion-resistant, andhas good light transmittance. The sealing ring adopts a 3/8-inch thick OMEGA sealing ring.

2.5 Box pressure range: It can maintain a certain positive and negative pressure (-12mbar -12mbar) during use. If it exceeds a certain pressure, the system will automatically protect it.

2.6  Lighting: Equipped with anti reflective energy-saving lighting, the light is soft.

2.7 Internal power supply in the box: 1 set of adhesive filled power supply wiring board is pre installed inside the box (power supply: voltage 220V-50Hz 1 phase, power supply10A).

2.8 Backup interface: The box is equipped with multiple standard KF-40 interfaces for easy access to liquids, gases, signals, etc.

2.9 Shelves: There are three layers of shelves inside the box.

2.10 Box bracket: includes casters, with a height of 950mm. The casters havefunctions such as leveling, moving, and fixing.

2.11 Low leakage rate: Adopting patented sealing technology, the leakage rate of the box is less than 0.001 Vol%/h.

3,Transition cabin

3.1 Shape: cylindrical (304 stainless steel), with flange connection between the large compartment and glove box.

3.2 Large transition chamber: with a diameter of 360mm and a length of 600mm, it adopts automatic valve control for the suction and replenishment process; The number of suction and replenishment cycles can be set to automatically performsuction and replenishment operations, saving operation waiting time.

3.3 Small transition cabin: with a diameter of 150mm x 300mm, the small transition cabin is controlled by a manual valve for air extraction and replenishment.

3.4 Transition compartment tray: The large transition compartment is equipped with a freely movable and extended polishing tray. Equipped with movable sliding discs in the small transition warehouse.

3.5 Vacuum degree: ≤ -0.1MPa (all with vacuum strip display). The pressure gauge is selected from Germany's Wika.

4,Circulating purification control system

4.1 Control system

4.1.1 Method: including self diagnosis, power-off and self start characteristics,with pressure control and adaptive functions. Automatic control, cycle control, password protection, and vacuum chamber control are displayed on LCD. The control unit adopts Siemens PLC touch screen from Germany, and the operation menu can be selected in Chinese/English.

4.1.2 Box pressure control: The box pressure can be controlled within a certain pressure range through the touch screen, and the system automatically balances the box pressure within this range.

4.1.3 Foot pedal: It can control the pressure of the glove box box more accurately at any time, achieve the operation of pumping and replenishing air to the box pressure, and facilitate more comfortable experiments for users.

4.2 Circulating purification system

4.2.1 Control: Control water and oxygen within<1ppm with an accuracy of 0.01ppm.

4.2.2 Adjustment device: The entire process of PLC touch adjustment (evacuation, purification, regeneration, heating) does not require manual monitoring.

4.2.3 Working gas: N2 or Ar (gas circulation), with a purity requirement of 99.999%.

4.2.4 Circulating fan: High speed variable frequency fan, adjustable flow rate of 0-100m3/h, controlled by Siemens microprocessors from Germany, installed insidea stainless steel device that has undergone high-pressure testing and is leak free.

4.2.5 Double purification column: Each column contains 5 kilograms of German BASF high-efficiency copper catalyst deoxygenation material, capable of removing 65 liters of oxygen, 5 kilograms of high-efficiency molecular sieve water removal material from UOP in the United States, capable of removing 2.2 kilograms of water.

4.2.6 Purification valve block: Burkert, Germany, fully automatic electrically operated valve, modular design, more concise, and convenient maintenance.

4.2.7 Filter: High efficiency filter with a 0.3 micron aperture filter that complies with HEPA standards.

4.3 Regeneration system

4.3.1 Regeneration system: used to purify the system for reuse, activate it, and restore adsorption capacity; A bottle of mixed gas of N2/H2 or Ar/H2 2 is required for regeneration, where H2 accounts for 5-10%.

4.4 Display System

4.4.1 Display System: The control unit adopts Siemens PLC touch screen from Germany, and the operation interface menu can be switched between Chinese and English. The display interface is rich in functions, easy to operate, easy to understand, and supports data export function.

5,Vacuum pump

5.1 The vacuum pump adopts Edwards RV12 vacuum pump from the UK, with a flow rate of 12m ³/ h. And it can be independently controlled at any time. The automatic shutdown time of the vacuum pump can be set by the touch screen, which is more reasonable and reduces unnecessary power consumption.

6,Solvent filtration system

To prevent the influence of organic solvents on the purification column or cross contamination of the experiment, the organic solvent adsorption column is integrated into the outside of the glove box using a series system, which can effectively remove volatile solvents. The medium is mainly high-quality and efficient activated carbon, with a filling amount of 6 KG.

7,Water analyzer

7.1 (1 unit, British Michel) Range: 0-1000ppm, using ceramic alumina sensitive components. This analyzer has good stability, corrosion resistance, wide measurement range, and fast response speed.

8,Oxygen analyzer

8.1 (1 unit, AVCRAY electrochemical analyzer from the United States) with a range of 0-1000ppm, requires the use of electrochemical fuel cell sensors, accurate zero points, and is not prone to drift; Avoiding situations where zirconia sensors are prone to damage and inaccurate detection in organic solvents, electrolytes, and other environments.

9,Specifications of Standard Model of Purification Glove Box
