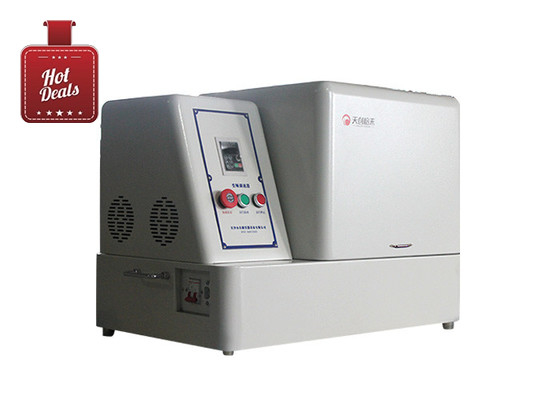

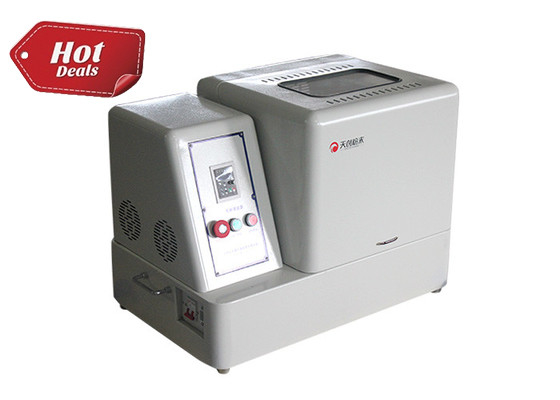

Tencan XQM-6 6L Square Vertical Planetary Ball Mill 220V

Tencan XQM-6 6L Square Vertical Planetary Ball Mill 220V

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: ISO CE
Model Number: XQM-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 300 sets per month
Get Best Price Contact Now

Detail Information
Porduct Name: Square Shape Vertical Laboratory Ball Mill Model No.: XQM-6
Total Volume: 6L Max Capacity: 1.98L
Rotate Speed: 70-670 Rpm Speed Control: Frequency Control
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.75KW
Highlight:

6L square planetary ball mill

,

vertical laboratory ball mill 220V

,

Tencan XQM-6 ball mill

Product Description

Square Shaped Laboratory Ball Mill for Advanced Material Processing 4 Grinding Stations 2 or 4 Jars



Overview

The square laboratory ball mill stands as a vital piece of equipment for advanced material processing. It supports a range of key operations, including precise milling, ultra-fine grinding, powder homogenization, nanomaterial synthesis, and small-batch production. Designed for optimal performance, this compact device combines high efficiency, low noise operation, and versatile functionality. Its four-station layout enables concurrent processing of multiple samples, effectively boosting work efficiency. Additionally, when equipped with optional vacuum milling jars, it allows material preparation in controlled environments—an ideal solution for handling oxygen-sensitive compounds.

Working Principle

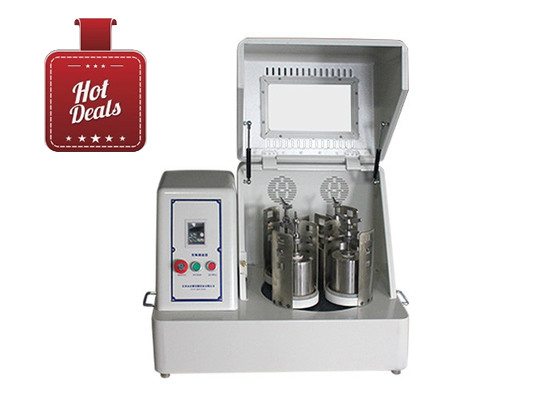

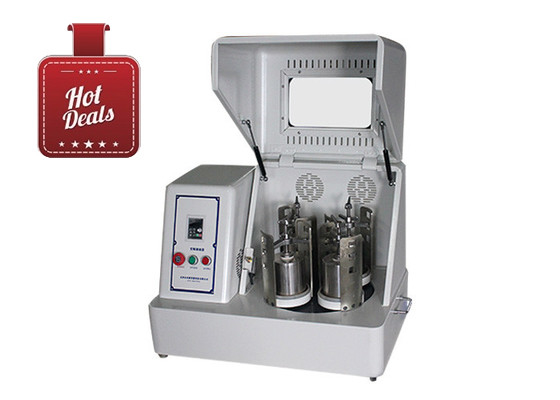

Equipped with four independent grinding stations, this planetary ball mill can hold two or four milling jars on one rotating platform. When in use, the jars perform high-speed planetary motion. This motion applies strong mechanical forces to the grinding media and raw materials, efficiently crushing the substances into powders with particle sizes ranging from micron to nanometer scale. The device is compatible with both dry and wet processing techniques, making it suitable for handling materials with various properties.

Applications

This multi-functional equipment is widely used in multiple industries, such as:
  • Materials Science: Used for processing electronic ceramics, structural ceramics, and dielectric materials.
  • Energy Storage: Applied in the preparation of lithium-ion battery cathodes and fuel cell components.
  • Advanced Manufacturing: Utilized for producing catalysts, phosphors, and rare earth materials.
  • Electronics: Employed in manufacturing varistors, thermistors, and multilayer ceramic capacitors.
  • Nanotechnology: Used for synthesizing nanoparticles and composite materials.

Features

  • Precision Engineering: A gear-driven system ensures stable rotational speed, which guarantees the repeatability of experimental results.
  • High-Energy Milling: The planetary motion of the mill creates powerful impact forces, enabling the efficient reduction of particles to an ultrafine state.
  • Parallel Processing: It supports the simultaneous preparation of four different samples, significantly improving the efficiency of research work.
  • Intelligent Control: Equipped with a variable frequency drive and overload protection function, it allows for accurate adjustment of rotational speed.
  • Programmable Operation: It offers multiple working modes, including continuous operation, interval operation, and reversible rotation, to meet the needs of optimized processing.
  • Ergonomic Design: Its low-profile structure, combined with vibration damping technology, ensures stable operation and user convenience.
  • Safety Assurance: An integrated protection system is installed to stop the mill from operating when the safety covers are open.



Technical Features



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc



Technical Parameters



Main Parameters of Vertical Planetary Mill Ball (SquareType)
Model Power(KW) Voltage Dimension(mm) Revolution Speed
(rpm)		 RotationSpeed
(rpm)
XQM-1 0.75 220V-50Hz 750*470*564 35-325 70-670
XQM-2 0.75 220V-50Hz 750*470*564 35-335 70-670
XQM-4 0.75 220V-50Hz 750*470*564 35-335 70-670
XQM-6 0.75 220V-50Hz 750*470*564 35-335 70-670



Accessories: Grinding Pots & Balls

A full range of grinding pot sizes is available for selection, with options including:
  • Stainless steel grinding pots
  • Zirconia grinding pots
  • Alumina grinding pots
  • Nylon grinding pots
  • PU (polyurethane) grinding pots
  • Tungsten grinding pots
  • Hard metal grinding pots
  • Tempered nylon grinding pots
  • And other types of grinding pots.



Tencan XQM-6 6L Square Vertical Planetary Ball Mill 220V 0

References for Matchable Jar Sizes with Square Shape Planetary Ball Mill
Model No. Total Volume
(L)		 Matchable Jar
Sizes		 Matchable Jars
Quantity		 Matchable Vacuum
Jar Sizes
XQM-2 2.0L 50-500ml 2pcs or 4pcs 50-250ml
XQM-4 4.0L 250-1000ml 2pcs or 4pcs 50-1000ml
XQM-6 6.0L 1-1.5L 2pcs or 4pcs 50-1000ml
XQM-8 8.0L 1-2L 2pcs or 4pcs 50-1500ml
XQM-10 10L 1-2.5L 2pcs or 4pcs 1-2L
XQM-12 12L 1-3L 2pcs or 4pcs 1-2L
XQM-20 20L 2-5L 2pcs or 4pcs 2-4L
XQM-40 40L 5-10L 2pcs or 4pcs 5L
XQM-60 60L 10-15L 2pcs or 4pcs 10L
XQM-100 100L 20-25L 2pcs or 4pcs 20L



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.		 Vacuum mill jar



Available Grinding Balls (Full Sizes Offered)

A complete range of grinding ball sizes is available, with material options covering multiple categories:
  • Metal-based: Stainless steel balls, carbon steel balls (steel carbon balls), tungsten balls, hard metal balls, high wear-resistant steel balls, manganese steel balls, cemented carbide balls, and other special metal material balls.
  • Ceramic-based: Zirconia balls, alumina balls, agate balls, silicon nitride balls.
  • Polymer-based: PU (polyurethane) balls.
  • Other materials: Crystal glass balls.

Tencan XQM-6 6L Square Vertical Planetary Ball Mill 220V 1



References About Grinding Medias & Materials
Materials of
Grinding Media		 Hardness
(Mohs)		 Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.



Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar √
Corundum Mill Jar ▲ √   ▲
Stainless Steel Mill Jar     √
Zirconia Mill Jar   ▲   √
Nylon Mill Jar ▲     √
PTFE Mill Jar √     ▲
Polyurethane Mill Jar √     ▲
Tungsten Carbide Mill Jar       ▲ √
√ means: most suitable ▲ means: suitable
