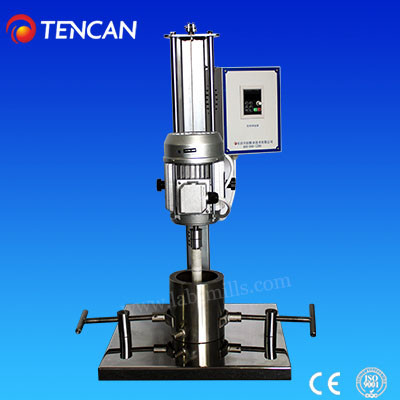

JM-1L Stirred Ball Mill 0.37KW 220V for Ceramic Coating
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | Tencan |
| Certification: | ISO CE |
| Model Number: | JM-1L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton & Plywood case with Foam |
| Delivery Time: | >=7 |
| Payment Terms: | T/T |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Product Model: | JM-1L | Max Capacity: | 0.35L |
|---|---|---|---|
| Power: | 0.37KW | Voltage: | 220V/50Hz |
| Output(kg/h): | 0.1 - 0.35 Kg/h | Range Of Spindle Speed(r.p.m): | 50 - 1400 R.p.m |
| Output Size (mesh): | 400-12500 Mesh | ||
| Highlight: | JM-1L stirred ball mill,220V ceramic coating ball mill,0.37KW lab ball mill |
||
Product Description
Product Description:
The Tencan Stirred Ball Mill represents a sophisticated vertical grinding system with extensive application capabilities. Engineered for processing materials with feed sizes ranging from 0.1 to 10 mm, this advanced milling equipment features adjustable spindle speeds from 50 to 1400 RPM, allowing precise optimization for various material characteristics. Backed by Tencan's comprehensive 12-month warranty, this machine delivers exceptional operational reliability and consistent performance. Its innovative agitation mechanism ensures superior mixing homogeneity, making it particularly suitable for pharmaceutical compounds, specialty chemicals, petrochemical products, food ingredients, and other precision processing applications.
Working Principle:
The main axis drives blender to rotate at high speed, making grinding media to do irregular movement that makes media collided, extruded, crushed and sheared. And makes materials crushed into fine powder. In addition, if size, shape and ratio of media is different, different grinding effects shall be resulted. Generally, the larger the size of media, the more rough the grinded power. On the contrary, the smaller the grinding media, the finer the grinded powder. Grinding effects shall be better if there is a suitable ratio of media in different size and matched speed.
Features:
1. High energy utilization, and can get a very high power density, so saving energy.
2. Product size is easy to be adjusted,ensure the final degree of fineness by adjusting the residence time of material in the barrel.
3. Small vibration, low noise.
4. Simple structure, easy to operate.
5. It can achieve various of process parameters requirement, product continuously or intermittently according to the need.
6. It can be well controlled grinding temperature because the milling cylinder has a jacket.
7. Can produce devices with a variety of special features according to the need, such as: the timer, speed control mode, circulation method, temperature regulator etc.
8. Can select grinding cylinder with different materials (stainless steel, corundum ceramics, polyurethanes, zirconia, etc.) and stirring device.
Technical Parameters:
| Model | Rotated Speed (rpm) | Powde (kw) | Material Capacity (L) | Feed Size (mm) | Output Granularity (micron) |
| Jm-1L | 50-1400 | 0.37 | 0.35 | ≤5 | ≤1 |
| JM-2L | 50-1400 | 0.37 | 0.7 | ≤ 5 | ≤ 1 |
| JM-3L | 50-1400 | 0.37 | 1.05 | ≤ 5 | ≤ 1 |
| JM-5L | 60-600 | 0.75 | 1.75 | ≤ 5 | ≤ 1 |
| JM-10L | 60-560 | 1.5 | 3.5 | ≤ 10 | ≤ 1 |
| JM-15L | 60-440 | 2.2 | 5.25 | ≤ 10 | ≤ 1 |
| JM-20L | 60-440 | 2.2 | 7 | ≤ 10 | ≤ 1 |
| JM-30L | 60-310 | 3 | 10.5 | ≤ 10 | ≤ 1 |
| JM-50L | 60-140 | 4 | 17.5 | ≤ 10 | ≤ 1 |
| JM-100L | 60-140 | 7.5 | 35 | ≤ 20 | ≤ 1 |
| JM-200L | 60-110 | 11 | 70 | ≤ 20 | ≤ 1 |
| JM-300L | 60-110 | 15 | 100 | ≤ 20 | ≤ 1 |
| JM-500L | 60-90 | 18.5 | 170 | ≤ 20 | ≤ 1 |
| JM-600L | 60-90 | 22 | 200 | ≤ 20 | ≤ 1 |
Table of Warranty Period for Different Parts of Machine:
Tencan Warranty and Service Promise:
All Tencan equipment and accessories are covered by a 12-month warranty period commencing from the date of customer receipt and verification. Our warranty program includes:
Complete unit replacement within the first 30 days for qualifying issues
Comprehensive repair services throughout the warranty period
Covered circumstances include:
Transportation-related damages
Motor and frequency converter failures
Critical component or main system malfunctions
Company Information:
Changsha Tianchuang Powder Technology Co., Ltd., established in 2006 and headquartered in China's Hunan Province, stands as a leading manufacturer specializing in laboratory milling solutions. Our extensive product range incorporates innovative impact-based processing technology, dual wet/dry grinding capabilities, and user-friendly operational designs. These advanced features enable researchers to effectively scale experimental results to production levels. Adhering to our core philosophy of "Customer Primacy, Perpetual Quality Focus," we have earned recognition from prestigious institutions including Harvard University, Peking University, Tsinghua University, and major corporations like Foxconn, BYD, and CASC. We remain committed to delivering superior equipment and exceptional service to our global clientele.
Packing and Shipping:
Each Stirred Ball Mill unit receives comprehensive protection through:
Multi-layer air bubble film wrapping
Industrial-grade export cartons
Customized shipping solutions based on specific customer requirements
FAQ:
Warranty Coverage:
Our equipment is backed by a 12-month warranty. For technical support, please contact our service hotline: 0086 13357214760.
Nano-Scale Grinding Capability:
Achieving nano-scale particle sizes depends on material properties and process parameters. Most materials can be processed to nano dimensions. We offer complimentary sample testing services for material evaluation.
Delivery Timeline:
Standard models are typically available from stock. Packaging requires 3 business days post-payment confirmation, with approximately 5 days for courier delivery. Total lead time averages 10 days after payment processing.
Sample Testing Services:
We provide complimentary grinding trials for customer-supplied materials prior to purchase decisions.
Company Classification:
We are a direct manufacturer and among China's largest producers of laboratory milling equipment.
Minimum Laboratory Model:
Our compact XQM-0.4A model (0.4L capacity) measures 53×30×34 cm with 26 kg weight. We offer comprehensive sizing options from 1L to 100L capacities.
Carbon Black Processing:
For challenging materials like carbon black that tend to agglomerate, we recommend our full-directional planetary ball mills, which have demonstrated successful results in preventing material sedimentation and aggregation.
