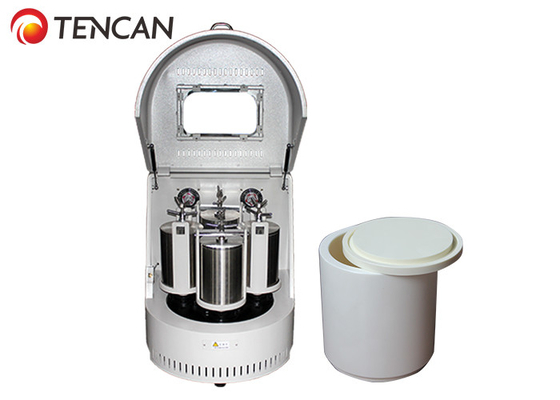

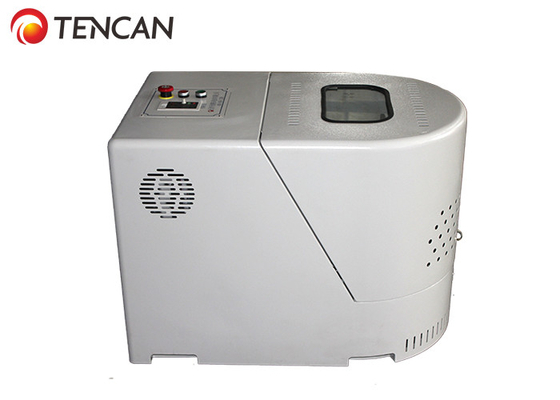

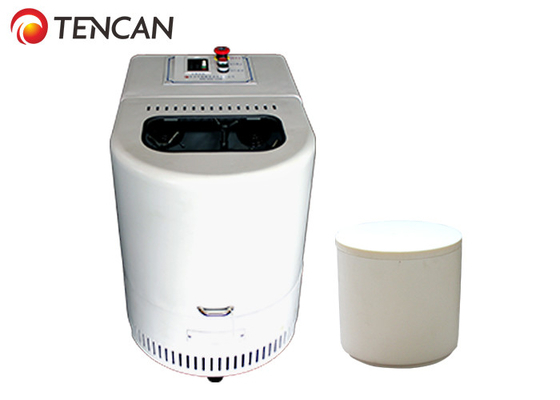

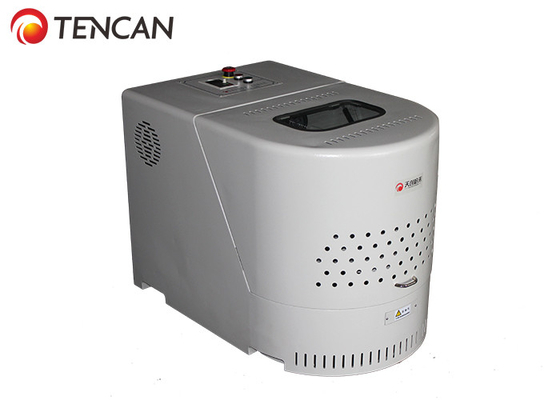

Tencan XQM-10A Semi-Circular Planetary Ball Mill 10L 220V/110V
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-10A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Semi-circle Round Laboratory Ball Mill | Model No.: | XQM-10A |
|---|---|---|---|
| Total Volume: | 10L | Max Capacity: | 3.33L |
| Rotate Speed: | 70-580 Rpm | Speed Control: | Frequency Control |
| Voltage: | 110V-60Hz Or 220V-50Hz | Power: | 1.5KW |
| Highlight: | 10L planetary ball mill,semi-circular ball mill 220V,laboratory ball mill with warranty |
||
Product Description
Tencan Laboratory Semi-Circular Planetary Ball Mill 4×2.5L 220V/110V | High-Efficiency Powder Mixing & Grinding
Overview
The Semi-Circle Round Laboratory Ball Mill stands at the forefront of material processing innovation, delivering unparalleled precision in nano-grinding, mechanical alloying, and advanced powder synthesis. Engineered to meet the rigorous demands of modern research, this state-of-the-art system combines groundbreaking performance with intuitive operation - an indispensable tool for university labs, corporate R&D centers, and materials science facilities pursuing next-generation material solutions.
Working Principle
Featuring an advanced semi-circular vertical configuration with quadruple grinding stations, the mill operates through:
Dual-axis planetary motion (central turntable + individual jar rotation)
Multi-vector force generation:
• Hyper-velocity impact crushing
• Three-dimensional shear forces
• Omnidirectional abrasive friction
This sophisticated dynamics system achieves reproducible particle refinement to 100nm (0.1μm) precision, supporting both aqueous and solvent-free processing protocols with exceptional uniformity.
Applications
Next-Generation Energy Materials:
• High-density battery composites (NCM811, LFMP cathodes)
• Ultra-thin dielectric ceramics (MLCC, piezoelectric transducers)
• Advanced magnetic alloys (Sm-Co, high-μ ferrites)
Specialty Chemical Systems:
• Heterogeneous catalyst nanoparticles
• Pharmaceautical co-crystal engineering
• Quantum dot precursor synthesis
Advanced Material Development:
• Mineralogical sample homogenization
• Lightweight metal matrix composites
• Technical ceramic raw material processing
Features
Intelligent Process Control:
Digital frequency conversion drive (50-600rpm)
Multi-mode programmable cycles (pulse/reverse/continuous)
Real-time torque monitoring
Engineered Safety Architecture:
Positive-lock safety interlink system
Dynamic vibration cancellation
Fail-safe overload protection
Premium Performance Attributes:
Helical gear transmission (90% energy efficiency)
Acoustic dampening enclosure (<55dB)
Hydrodynamic jar geometry optimization
Ergonomic Design Elements:
Touchscreen HMI with preset protocols
Tool-free jar quick-change system
Antimicrobial surface treatment
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 10.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz |
530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-8A | 1.5 | 220V-50Hz 110V-60Hz |
900*600*640 | 35-290 | 70-580 |
| XQM-10A | 1.5 | 220V-50Hz 110V-60Hz |
900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-10A
Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Semi-circle Round Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-0.2S | 0.2L | 50ml | 2pcs or 4pcs | 25ml |
| XQM-0.4A | 0.4L | 50ml, 100ml | 2pcs or 4pcs | 50ml |
| XQM-1A | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2A | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4A | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-8A | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10A | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12A | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16A | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
