Tencan XQM-6A 6L Laboratory Ball Mill 220V 0.75KW
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Semi-circle Round Laboratory Ball Mill | Model No.: | XQM-6A |
|---|---|---|---|
| Total Volume: | 6L | Max Capacity: | 1.98L |
| Rotate Speed: | 70-670 Rpm | Speed Control: | Frequency Control |
| Voltage: | 110V-60Hz Or 220V-50Hz | Power: | 0.75KW |
| Highlight: | 6L laboratory ball mill 220V,Tencan XQM-6A ball mill,0.75KW lab ball mill |
||
Product Description

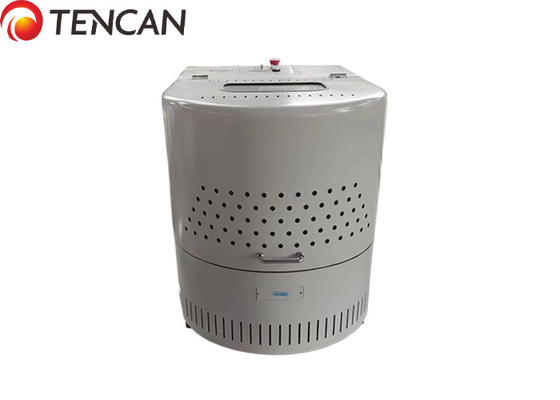

Tencan 6L 220V Semi Round Vertical Planetary Ball Mill – Precision Grinding for Advanced Materials
Overview
Semi-Circle Round Vertical Laboratory Ball Mill is an indispensable tool for high-performance material processing, offering ultra-fine grinding, mechanical alloying, and nano powder synthesis in a compact, efficient design. Engineered for R&D labs, universities, and industrial research, this mill delivers exceptional precision, low noise (<60 dB), and multi-sample capability—making it ideal for small-batch production and advanced material development.
Working Principle

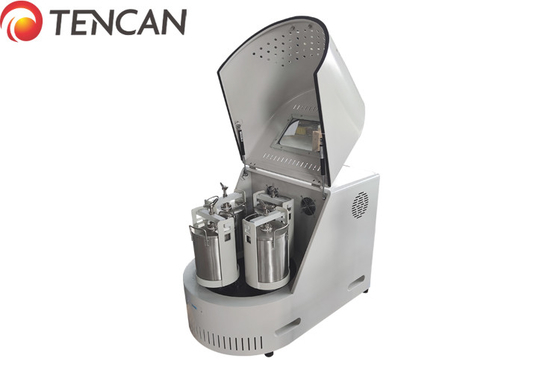

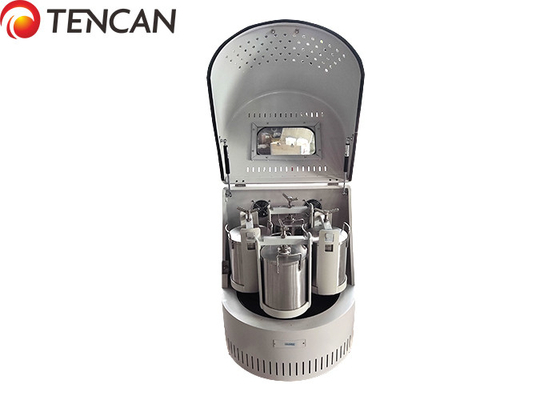

Equipped with four grinding jars on a planetary turntable, the mill generates intense mechanical forces through high-speed rotation. The grinding media (balls) inside the jars produce:
Powerful centrifugal acceleration
Multi-axis impact collisions
Controlled shear & friction
Precision-adjustable parameters (speed, duration, rotation direction) ensure consistent, repeatable results for both research and industrial applications.
Applications
Energy & Advanced Materials
Battery Tech: Homogeneous blending of NCM, LFP, and silicon anode materials.
Functional Ceramics: MLCC dielectrics, piezoelectric components, high-purity alumina/zirconia.
Magnetic Alloys: Nd-Fe-B permanent magnets, Fe-Si cores, Mn-Zn ferrites.
Chemical & Pharmaceutical Engineering
Catalyst synthesis, phosphor particle refinement, drug micronization (wet/dry methods).
Nano-powders for coatings, composites, and specialty chemicals.
Geology & Metallurgical Research
Mineral sample preparation (ore pulverization, sediment analysis).
Mechanical alloying of lightweight (Al, Ti) and high-strength metal composites.
Technical Advantages
✔ Parallel Processing – Four-jar design maximizes throughput for multi-sample experiments.
✔ Precision Grinding – Uniform particle size distribution (PSD) ensures reproducible results.
✔ Durable Construction – Optional ZrO₂, stainless steel, or wear-resistant nylon jars for extended lifespan.
✔ Lab-Friendly Operation – Compact footprint with oil-sealed gearbox for whisper-quiet (<60 dB) performance.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 6.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz |
530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-4A:

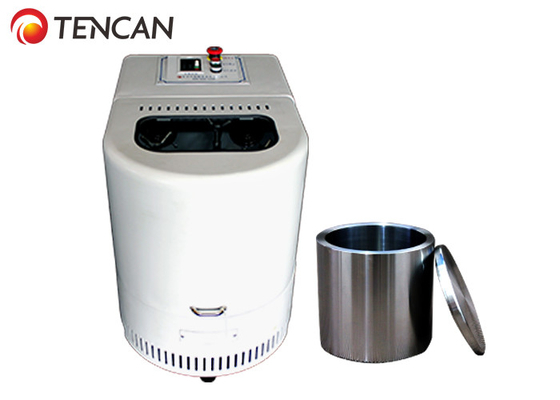

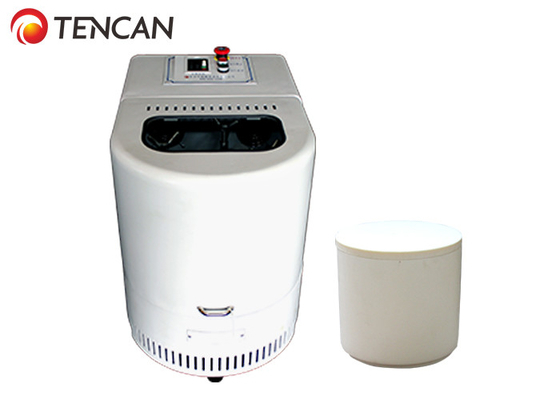

Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
