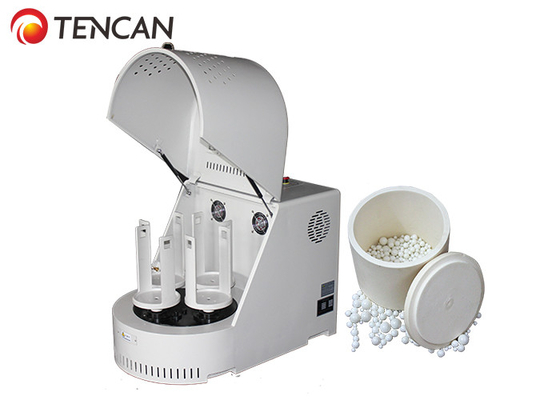

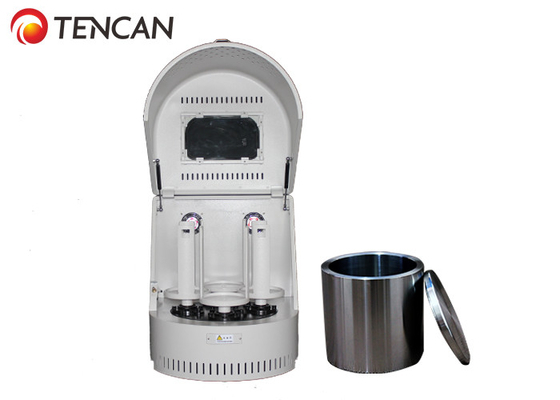

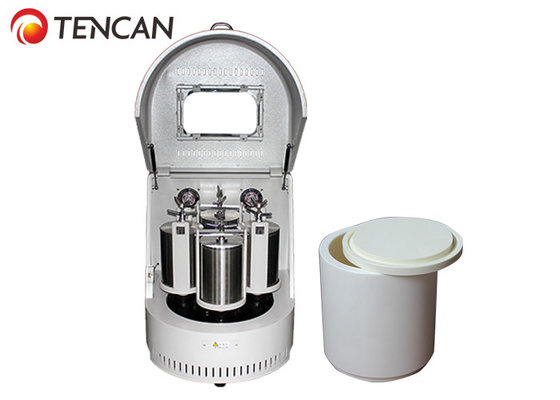

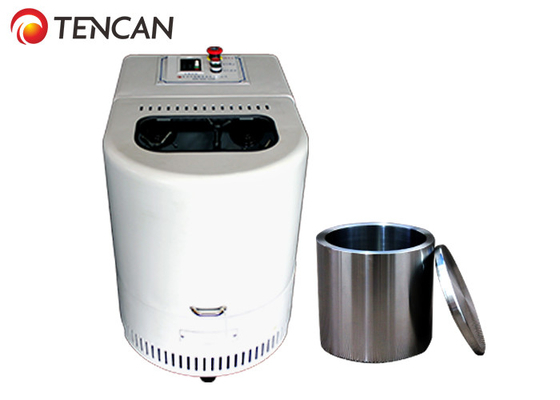

8L Semi Round Vertical Laboratory Ball Mill XQM-8A 220V
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-8A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Semi-circle Round Laboratory Ball Mill | Model No.: | XQM-8A |
|---|---|---|---|
| Total Volume: | 8L | Max Capacity: | 2.66L |
| Rotate Speed: | 70-580 Rpm | Speed Control: | Frequency Control |
| Voltage: | 110V-60Hz Or 220V-50Hz | Power: | 1.5KW |
| Highlight: | 8L vertical laboratory ball mill,semi round lab ball mill,XQM-8A 220V ball mill |
||
Product Description
TAENCAN 8L 220V Semi Round Vertical Laboratory Ball Mill for for Metal/Alloy Powder Grinding
Overview
The Semi-Circle Round Vertical Laboratory Ball Mill is an essential device designed for advanced material processing, including fine grinding, powder blending, nano-particle synthesis, and small-scale production. Ideal for research institutions, universities, and industrial labs, this planetary ball mill delivers high efficiency, compact design, low noise, and versatile functionality. It supports four grinding positions, enabling simultaneous processing of multiple samples. Additionally, when equipped with vacuum milling jars, it can prepare powder samples under controlled atmospheric conditions.
Working Principle
This ball mill operates with four grinding stations, accommodating two or four milling jars on a single rotating platform. As the turntable spins, the jars undergo high-speed planetary motion, generating intense impact and friction between the grinding media and materials. This mechanical action efficiently reduces particles to ultrafine or even nano-scale powders (as fine as 0.1μm). The system supports both dry and wet grinding methods, catering to a broad range of material types.
Applications
Widely utilized across multiple industries, this laboratory ball mill is particularly suited for:
Materials Science: Electronic ceramics, structural ceramics, magnetic materials, nanomaterials, and dielectric ceramics.
Energy & Electronics: Lithium-ion battery materials (lithium cobaltate, lithium manganese oxide), fuel cells, varistors (ZnO), and thermistors (PTC/NTC).
Chemical & Metallurgy: Catalysts, phosphors, rare earth polishing powders, and metal oxide processing (cobalt oxide, zinc oxide).
Advanced Manufacturing: MLCC (multilayer ceramic capacitors), piezoelectric ceramics, ferrites (Ni-Zn, Mn-Zn), and ceramic powders (alumina, zirconia).
Features
Precision & Consistency: Gear-driven mechanism ensures stable rotation speed for reproducible results.
High-Efficiency Grinding: Planetary motion delivers high kinetic energy, enabling ultrafine particle refinement.
Multi-Sample Processing: Four independent grinding stations allow parallel sample preparation.
Adjustable Speed Control: Frequency converter enables precise speed selection with overload protection.
Programmable Operation: Offers timed shutdown, auto-reverse, and customizable run modes (continuous, interval, or alternating cycles).
User-Friendly Design: Compact, low-noise, and vibration-free operation with a safety interlock to prevent accidental access during operation.
Robust Construction: Low center of gravity ensures stability, durability, and minimal maintenance.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 6.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz |
530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-4A:
Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
