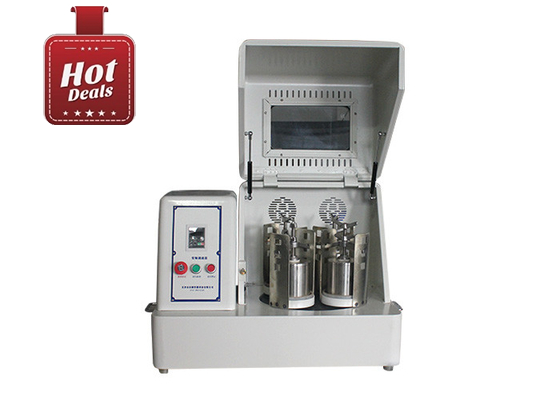

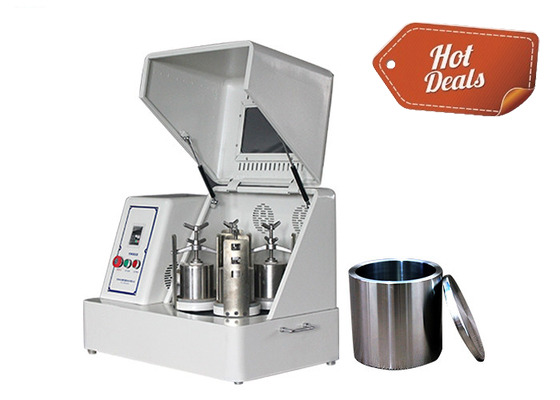

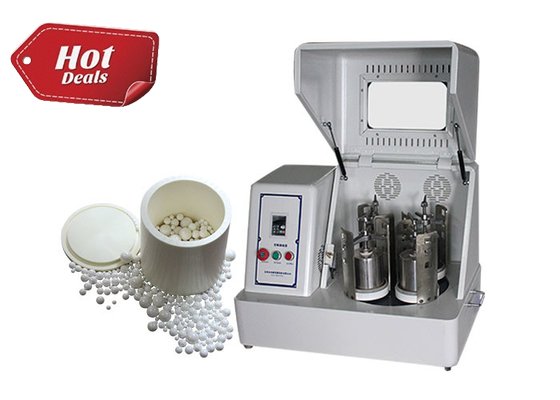

Square Vertical Lab Ball Mill XQM-4 4L Capacity 70-670 RPM

Tencan Lab Planetary Mill for Battery/Ceramic - 4L Capacity, Vacuum & Inert Gas

Overview

The square-shaped planetary ball mill represents essential laboratory equipment for advanced material processing applications, including precision grinding, powder blending, nanomaterial synthesis, and small-scale production. This high-performance mill combines compact dimensions with exceptional processing efficiency, featuring quiet operation and comprehensive functionality. With its innovative four-position design, researchers can simultaneously process up to four distinct samples, significantly enhancing workflow efficiency. The optional vacuum milling capability further extends its applications to sensitive materials requiring controlled atmosphere processing.

Working Principle

This advanced milling system incorporates four independent grinding stations, accommodating either two or four milling jars on a single rotating platform. During operation, the jars execute complex planetary motion at high velocities, generating powerful mechanical forces that efficiently reduce materials to fine powders. The system supports both dry and wet processing methods, capable of achieving particle sizes as small as 0.1 microns or even nanoscale dimensions, making it ideal for cutting-edge material research.

Applications

The planetary ball mill finds extensive application across multiple industries:
Materials Science: Processing of electronic ceramics, structural ceramics, and dielectric materials
Energy Research: Preparation of battery materials including lithium cobalt oxide and lithium manganese compounds
Advanced Manufacturing: Production of catalysts, phosphors, and rare earth materials
Electronics Industry: Fabrication of varistors, thermistors, and multilayer ceramic capacitors
Nanotechnology: Synthesis of nanoparticles and advanced composite materials

Features

Precision Performance: Gear-driven mechanism ensures consistent rotational speeds for reproducible experimental results
High-Efficiency Grinding: Planetary motion generates superior impact forces for ultrafine particle reduction
Multi-Sample Processing: Simultaneous preparation of four samples optimizes research productivity
Advanced Control System: Variable frequency drive with comprehensive protection features enables precise speed adjustment
Programmable Operation: Multiple operational modes including continuous, interval, and reversible rotation for optimized processing
Ergonomic Design: Low-profile construction with vibration damping ensures stable and user-friendly operation
Enhanced Safety: Integrated protection system prevents operation when safety covers are opened

Technical Features

Technical Parameters

Accessories of Grinding Pots & Balls

Available grinding pots in full sizes:

Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.

Available grinding balls in full sizes

Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
