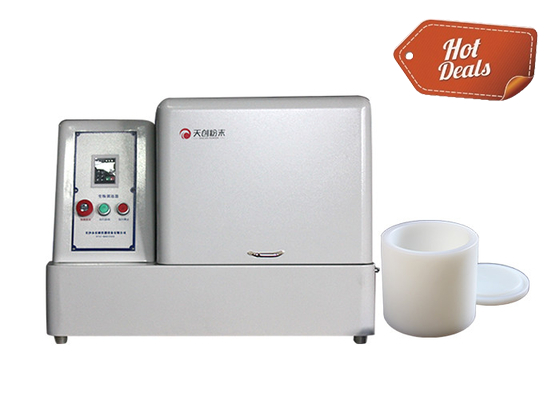

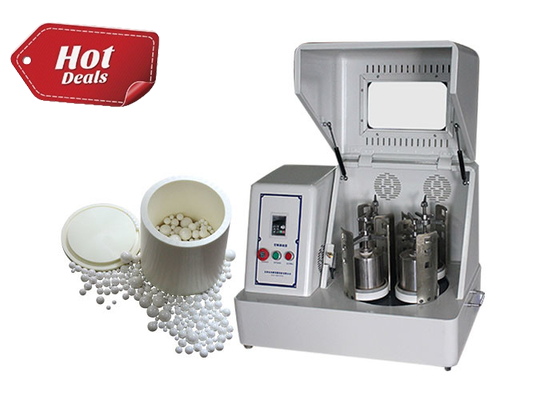

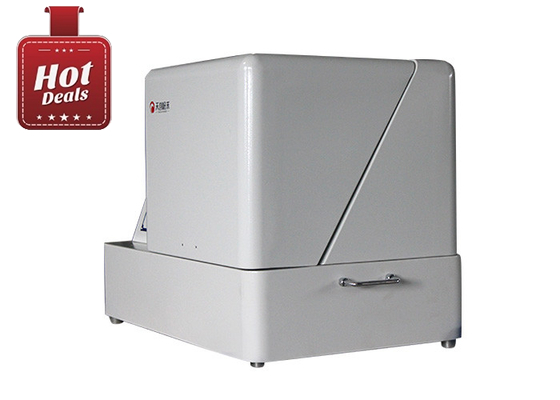

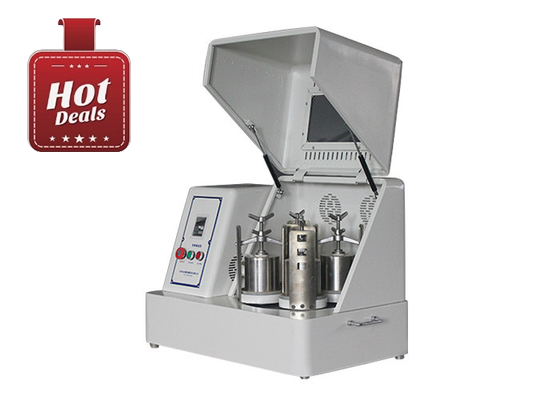

Tencan XQM-6 6L Square Vertical Planetary Ball Mill 220V

Tencan 6L Planetary Ball Mill for LiB Anode/Cathode - 0.1μm Uniformity, 220V

Overview

Square shaped laboratory ball mill is an indispensable tool for processing advanced materials, enabling precision milling, ultra-fine grinding, powder homogenization, nanomaterial synthesis, and small-scale manufacturing. Engineered for superior performance, this compact system delivers exceptional efficiency with quiet operation and multifunctional capabilities. Its four-position design allows simultaneous processing of multiple samples, maximizing productivity. When configured with optional vacuum milling jars, it facilitates material preparation in controlled environments, making it perfect for oxygen-sensitive compounds.

Working Principle

Featuring four independent grinding stations, this planetary mill accommodates two or four milling jars on a single rotating platform. During operation, the jars execute high-velocity planetary motion, subjecting grinding media and raw materials to intense mechanical forces. This dynamic action efficiently pulverizes substances into micron or nanometer-scale powders. The system supports both dry and wet processing methods, accommodating a diverse range of material properties.

Applications

This versatile equipment finds applications across numerous industries, including:
Materials Science (electronic ceramics, structural ceramics, dielectric materials)
Energy Storage (lithium-ion battery cathodes, fuel cell components)
Advanced Manufacturing (catalysts, phosphors, rare earth materials)
Electronics (varistors, thermistors, multilayer ceramic capacitors)
Nanotechnology (nanoparticles, composite materials)

Features

Precision Engineering - Gear-driven mechanism maintains consistent rotational speed for reproducible results
High-Energy Milling - Planetary motion generates exceptional impact forces for ultrafine particle reduction
Parallel Processing - Simultaneous preparation of four distinct samples enhances research efficiency
Intelligent Control - Variable frequency drive with overload protection enables precise speed adjustment
Programmable Operation - Multiple modes including continuous, interval, and reversible rotation for optimized processing
Ergonomic Design - Low-profile construction with vibration damping ensures stable, user-friendly operation
Safety Assurance - Integrated protection system prevents operation when safety covers are open

Technical Features

Technical Parameters

Accessories of Grinding Pots & Balls

Available grinding pots in full sizes:

Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.

Available grinding balls in full sizes

Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
