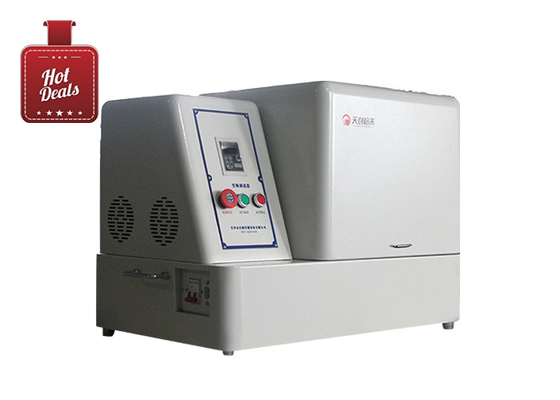

Square Vertical Planetary Ball Mill XQM-8 8L Capacity 220V

Tencan Vertical Planetary Ball Mill for Metal/Ceramic/Battery - 8L Capacity, Low Noise

Overview

Square shaped laboratory ball mill is an essential tool for advanced material processing, including precision grinding, powder blending, nanomaterial synthesis, and small-scale production. Designed for efficiency and versatility, this compact mill operates with minimal noise while delivering high-performance results. Its four-workstation design allows simultaneous processing of multiple samples, significantly improving productivity. Additionally, when paired with vacuum milling jars, it enables grinding under controlled atmospheric conditions, making it ideal for sensitive materials.

Working Principle

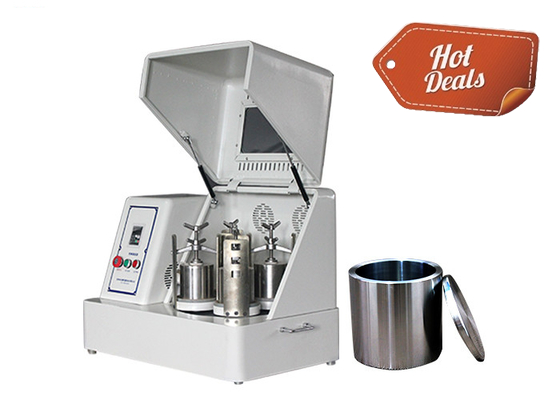

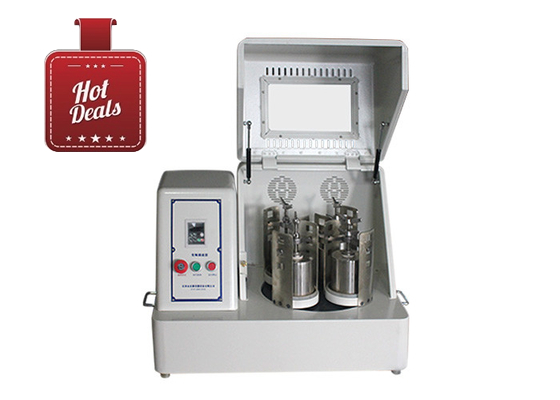

Square shaped laboratory ball mill equipped with four grinding stations, this planetary ball mill can accommodate two or four milling jars on a single rotating platform. As the turntable spins, the jars undergo high-speed planetary motion, generating intense mechanical forces that pulverize materials into ultrafine powders. The system supports both dry and wet grinding methods, capable of achieving particle sizes as fine as 0.1 microns or even nanoscale dimensions.

Applications

This versatile mill serves a broad spectrum of industries, including geology, metallurgy, electronics, ceramics, chemicals, pharmaceuticals, and environmental sciences. It is particularly effective in producing advanced materials such as:
Electronic & Structural Ceramics (Alumina, Zirconia)
Battery Materials (Lithium Cobalt Oxide, Lithium Manganese)
Magnetic & Catalytic Compounds (Ni-Zn Ferrite, Mn-Zn Ferrite)
Optical & Semiconductor Materials (Phosphors, Rare Earth Powders)
Nanomaterials & Functional Composites (Piezoelectric Ceramics, Varistors)

Features

Precision & Consistency – Gear-driven rotation ensures uniform grinding and repeatable results.
High-Efficiency Grinding – Planetary motion maximizes impact energy for ultrafine particle reduction.
Multi-Sample Processing – Four independent stations enable parallel sample preparation.
Adjustable Speed Control – Variable frequency drive allows optimization of grinding parameters for different materials.
Programmable Operation – Offers multiple modes (continuous, timed, alternating rotation) for customized workflows.
Robust & User-Friendly – Compact, low-vibration design with safety interlocks for secure operation.
Low-Noise Performance – Engineered for quiet operation in laboratory environments.

Technical Features

Technical Parameters

Accessories of Grinding Pots & Balls

Available grinding pots in full sizes:

Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.

Available grinding balls in full sizes

Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
