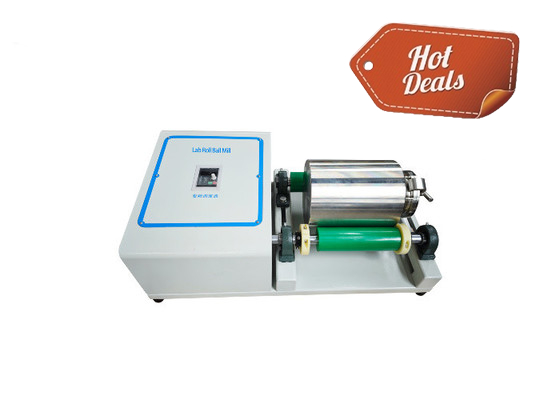

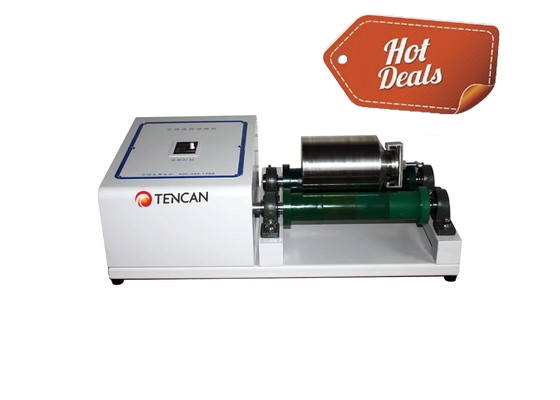

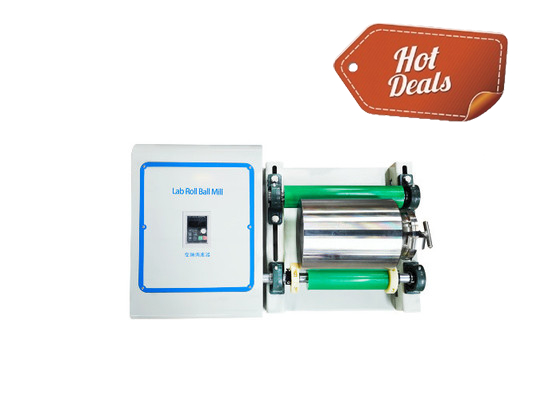

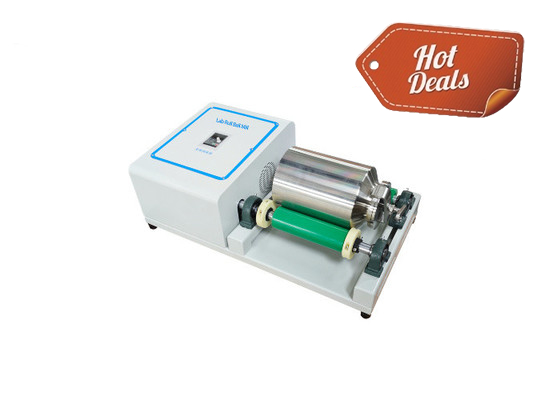

Tencan QM-5 5L Lab Mini Roll Ball Mill 60-570 RPM 220V/110V
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QM-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Product Name: | Lab Mini Roll Ball Mill | Model No.: | QM-5 |
|---|---|---|---|
| Total Volume: | 5L | Max Load Volume: | 1.65L |
| Rotate Speed: | 60-570 RPM | Voltage: | 220V-50Hz Or 110V-60Hz |
| Power: | 0.37KW | Speed Control: | Frequency Control |
| Highlight: | 5L lab mini roll ball mill,Tencan QM-5 ball mill 60-570 RPM,laboratory ball mill 220V/110V |
||
Product Description
Tencan 5L 110-220V Mini Roller Laboratory Ball Mill - High Efficiency Precision Grinding with Consistent Results
Overview
The 5L Mini Roller Laboratory Ball Mill is a compact yet powerful grinding system designed for ultra-fine milling, mixing, and homogenization in laboratory and small-scale production environments. Combining high efficiency, uniform particle size distribution, and user-friendly operation, this machine is ideal for R&D, quality control, and pilot-scale processing across multiple industries.
Working Principle
The mill operates through a rotating roller-driven mechanism:
Jar Rotation – The grinding jar is placed between rubber rollers and rotates at a controlled speed.
Impact & Shear Forces – Grinding media (balls) and materials are lifted and then fall under gravity, creating:
Impact crushing (high-energy collisions)
Friction & shearing (rolling/sliding motion)
Progressive Refinement – Continuous rotation ensures even particle reduction with uniform granularity.
Applications
1. Advanced Materials Research
Battery Materials (Li-ion cathode/anode powders)
Ceramic Glazes & Pigments (uniform dispersion)
Metal Alloy Powders (Fe, Al, Cu-based)
2. Pharmaceuticals & Biotechnology
Drug Formulation (API micronization)
Biomaterial Processing (plant extracts, freeze-dried samples)
3. Geology & Mining
Mineral Sample Prep (rocks, ores, sediments)
Nanomaterial Synthesis (graphene, oxides)
Features
✔ Compact & Portable – Fits easily in lab spaces with minimal setup
✔ Adjustable Roller System – Supports multiple jar sizes (customizable spacing)
✔ Uniform Particle Size – Ensures consistent grinding results for reliable R&D
✔ Wet & Dry Grinding – Compatible with solvent-based or dry powder processing
✔ Low Maintenance – Simple operation with easy jar swapping & cleaning
Technical Parameters
| Technical Parameter of Mini Roll Laboratory Ball Mill | ||||||||
| Model No. | QM-5 | QM-15 | ||||||
| Dimensions/Net Weight | 730*415*260mm/32KGS | 840*435*270mm/43KGS | ||||||
| Motor Power | 0.37kw | 0.75kw | ||||||
| Specifications of Frequency Converter | 0.4kw/220v | 0.75kw/220v | ||||||
| Rotation Speed Range | 60-570r/min±10rpm | 60-570rpm±10rpm | ||||||
| Adjustable Space Between Rollers | 120mm | 140mm | ||||||
| Max Load Per Jar | 35KGS | 80KGS | ||||||
| Sizes of Macthed Mill Jars | 0.5-5L | 10-15L | ||||||
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
