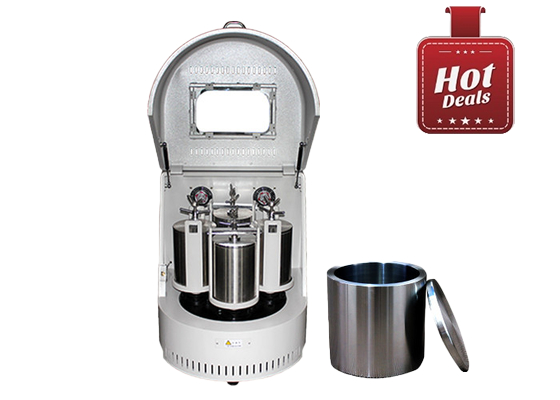

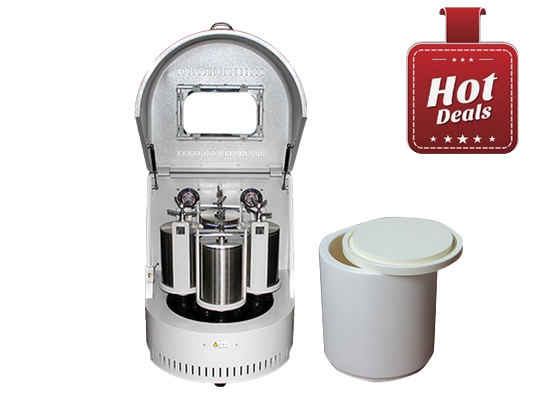

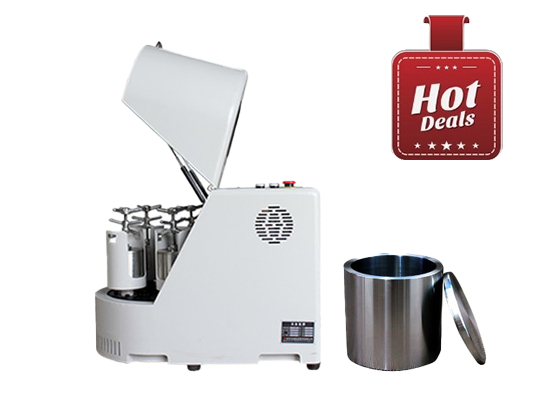

XQM-10A 10L Semi-Circle Laboratory Ball Mill 70-580 RPM
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-10A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Semi-circle Round Laboratory Ball Mill | Model No.: | XQM-10A |
|---|---|---|---|
| Total Volume: | 10L | Max Capacity: | 3.33L |
| Rotate Speed: | 70-580 Rpm | Speed Control: | Frequency Control |
| Voltage: | 110V-60Hz Or 220V-50Hz | Power: | 1.5KW |
| Highlight: | 10L laboratory ball mill,semi-circle ball mill 70-580 RPM,XQM-10A lab ball mill |
||
Product Description
Tencan 4×2.5L Semi-Circular Laboratory Planetary Ball Mill - High-Efficiency Sample Preparation System
Overview
Semi-Circle Round Laboratory Ball Mill represents the cutting edge in material processing technology, specifically designed for precision grinding, nano-powder production, and advanced material development. This innovative equipment combines exceptional performance with user-friendly operation, making it the perfect solution for research institutions, university laboratories, and industrial R&D departments requiring consistent, high-quality powder samples.
Working Principle
The mill features a unique semi-circular vertical design with four grinding positions. During operation:
The central turntable rotates at high speed
Each jar simultaneously revolves around its own axis
This planetary motion creates intense grinding forces through:
High-energy impacts
Efficient shearing action
Multi-directional friction
This sophisticated movement pattern ensures uniform particle size reduction down to 0.1μm (100nm), suitable for both dry and wet grinding applications.
Applications
Advanced Electronic Materials:
Battery components (NCM, LFP, silicon anodes)
MLCC dielectrics and piezoelectric ceramics
Magnetic materials (Nd-Fe-B, soft ferrites)
Chemical & Pharmaceutical Compounds:
Catalyst preparation
Pharmaceutical intermediates
Nano-composite materials
Geological & Metallurgical Samples:
Mineral analysis preparation
Metal alloy development
Ceramic raw material processing
Features
Precision Control System:
Variable frequency drive with overload protection
Programmable operation modes (continuous/interval/reversible)
Digital speed regulation (50-600rpm)
Enhanced Safety Design:
Interlocked safety cover system
Low center of gravity construction
Vibration-dampening base
Superior Performance Characteristics:
High-torque gear transmission system
Oil-sealed noise reduction technology
Optimized jar geometry for efficient grinding
User-Friendly Operation:
Intuitive control interface
Quick-release jar mounting system
Easy-clean surfaces
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 10.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz |
530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-8A | 1.5 | 220V-50Hz 110V-60Hz |
900*600*640 | 35-290 | 70-580 |
| XQM-10A | 1.5 | 220V-50Hz 110V-60Hz |
900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-10A
Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Semi-circle Round Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-0.2S | 0.2L | 50ml | 2pcs or 4pcs | 25ml |
| XQM-0.4A | 0.4L | 50ml, 100ml | 2pcs or 4pcs | 50ml |
| XQM-1A | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2A | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4A | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-8A | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10A | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12A | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16A | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
