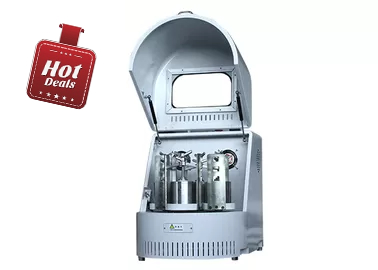

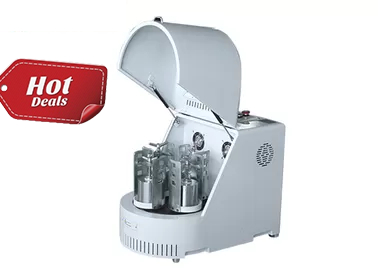

Tencan XQM-6A 6L Semi Round Vertical Planetary Ball Mill 220V
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Semi-circle Round Laboratory Ball Mill | Model No.: | XQM-6A |
|---|---|---|---|
| Total Volume: | 6L | Max Capacity: | 1.98L |
| Rotate Speed: | 70-670 Rpm | Speed Control: | Frequency Control |
| Voltage: | 110V-60Hz Or 220V-50Hz | Power: | 0.75KW |
| Highlight: | 6L semi round planetary ball mill,vertical laboratory ball mill 220V,Tencan XQM-6A ball mill |
||
Product Description
Tencan 6L 220V Semi Round Vertical Planetary Ball Mill – Precision Grinding for Advanced Materials
Overview
Semi-Circle Round Vertical Laboratory Ball Mill is an indispensable tool for high-performance material processing, offering ultra-fine grinding, mechanical alloying, and nano powder synthesis in a compact, efficient design. Engineered for R&D labs, universities, and industrial research, this mill delivers exceptional precision, low noise (<60 dB), and multi-sample capability—making it ideal for small-batch production and advanced material development.
Working Principle
The mill features four grinding jars mounted on a rotating turntable, creating high-energy planetary motion. As the jars spin at high speed, grinding media (balls) impact and shear materials—delivering uniform particle reduction through:
Strong centrifugal force
Multi-directional collisions
Efficient friction & shear
Output Control: Adjustable parameters (speed, time, rotation mode) ensure repeatable, high-quality powder for research and production.
Applications
1. Advanced Materials & Electronics
Battery Materials: Uniform mixing of NCM, LFP, silicon-based anodes.
Ceramics: MLCC dielectrics, piezoelectric ceramics, alumina/zirconia powders.
Magnetic Alloys: Fe-Si, Nd-Fe-B, soft ferrites.
2. Chemicals & Pharmaceuticals
Catalysts, phosphors, drug formulations (wet/dry grinding).
Nano-powders for coatings, composites, and additives.
3. Geology & Metallurgy
Mineral sample prep (ores, rocks, sediments).
Mechanical alloying (Al, Ti, Cu-based composites).
Technical Advantages
✔ Four-Jar Efficiency – Process multiple samples at once, saving time and energy.
✔ High Repeatability – Consistent particle size distribution (PSD) for reliable R&D.
✔ Low Maintenance – Durable ZrO₂, stainless steel, or nylon jars for long-term use.
✔ Compact & Quiet – Oil-sealed gears ensure <60 dB operation (ideal for labs).
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 6.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz |
530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-4A:
Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
