Tencan 20L Light Stirred Ball Mill with Alumina Ceramic Liner amp Water Jacket for Ultra-Fine Particle Size Reduction
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | JM-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Light Type Stirred Ball Mill | Model No.: | JM-20 |
|---|---|---|---|
| Voltage: | 380V-50Hz | Power: | 2.2KW |
| Rotate Speed: | 60-380 Rpm | Speed Control: | Frequency Control |
| Total Volume: | 20L | Max Capacity: | 7L |
| Highlight: | Alumina Ceramic Liner Stirred Ball Mill,Ultra Fine Particle Stirred Ball Mill,20L Light Stirred Ball Mill |
||
Product Description

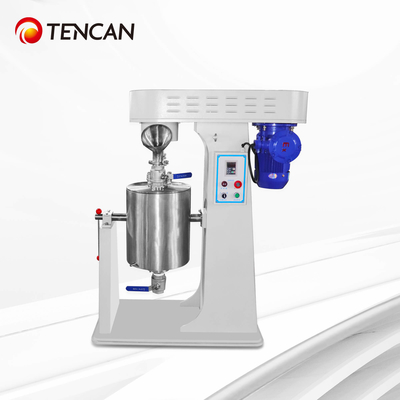

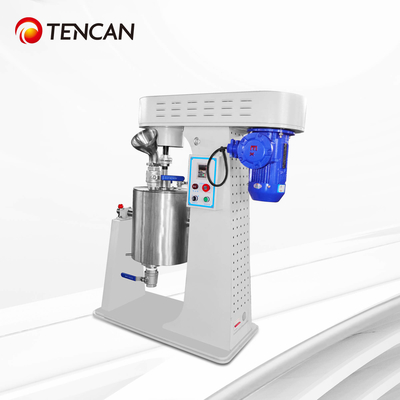

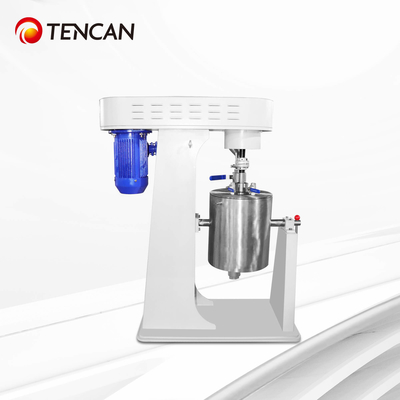

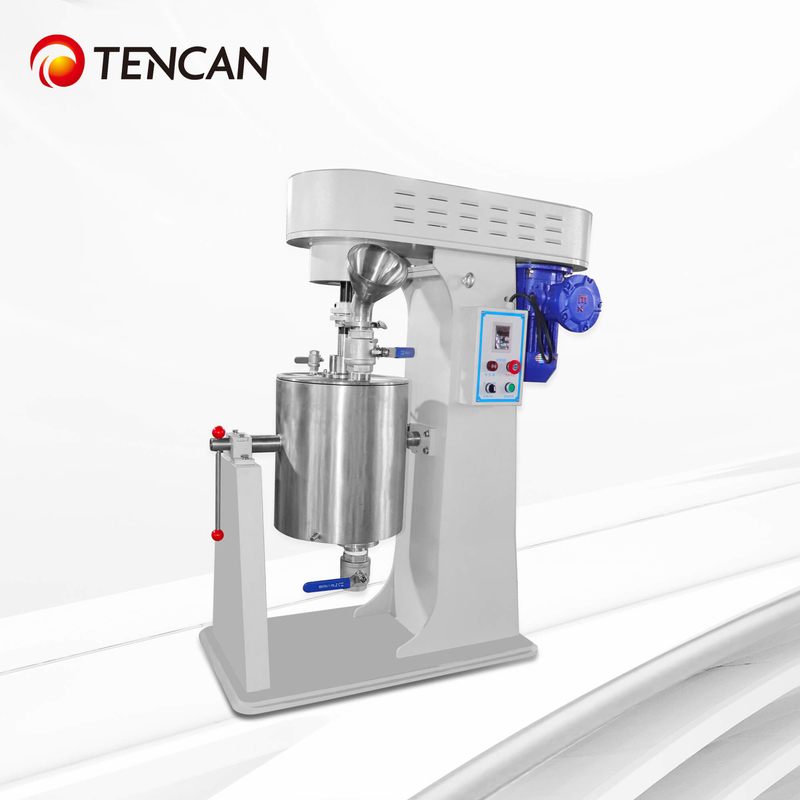

20L Light Stirred Ball Mill 380V-2.2KW With Alumina Ceramic Liner & Water Jacket
Overview

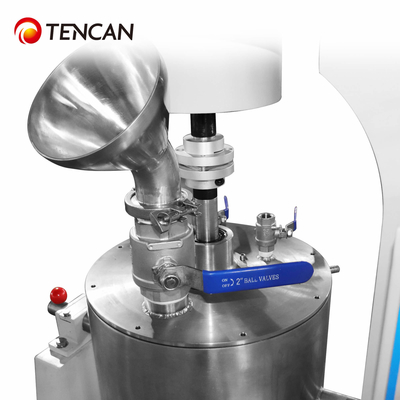

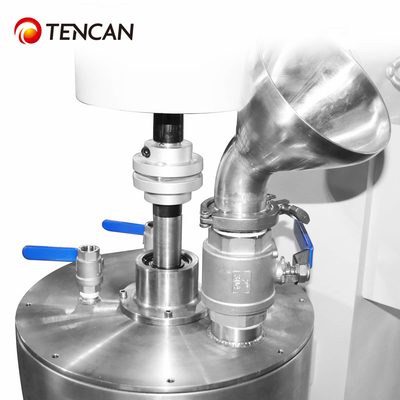

The Light Stirred Ball Mill is primarily composed of a grinding chamber containing internal milling media, an agitation mechanism, and supplementary components including material recirculation systems, temperature regulation units, programmable timers, and variable speed controls. This equipment delivers exceptional processing efficiency and ultra-fine particle size reduction capabilities, making it perfectly suited for diverse industrial applications. Its compact design, energy-efficient operation, and cost-effectiveness establish it as an exemplary solution for material development and coating research across academic institutions, corporate R&D facilities, and industrial laboratories.
Working Principle
Through high-velocity rotation of the central drive shaft, the milling media undergoes chaotic motion within the chamber, subjecting processed materials to intensive crushing, grinding, and shear forces that yield micron-scale powders. Grinding performance is directly influenced by media dimensions, geometric configuration, and optimal media combinations. As a general principle, increased media dimensions correlate with finer particulate outputs. Precise calibration of media combinations coupled with rotational velocity optimization ensures superior grinding performance.
Applications
This advanced milling system finds extensive application across multiple industries including advanced ceramics (zirconium silicate, alumina composites), specialty chemicals, electronic components, magnetic materials, paper coatings, mineral processing, novel material development, surface treatments, graphite modification, pharmaceutical preparations, calcium carbonate refinement, among other specialized fields.
Features
Exceptional energy conversion efficiency for reduced operational costs
Precise particle size control through adjustable processing duration
Advanced vibration damping for quiet operation
Intuitive design for simplified user operation
Flexible configuration for batch or continuous processing modes
Temperature-regulated jacketed chamber for thermal management
Custom engineering solutions including programmable controls, speed modulation, material recovery systems, and thermal regulation
Multi-material chamber options including 316L stainless steel, alumina ceramics, polyurethane linings, and yttria-stabilized zirconia components
Technical Parameters
| Technical Parameters of Tencan Light Type Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-5L | 60-560 | 5 | 1.75 | 220V/0.75KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤5mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-10L | 60-560 | 10 | 3.50 | 220V/1.5KW | ≤10mm | ≤1μm | ||
| JM-15L | 60-380 | 15 | 5.25 | 380V/2.2KW | ≤10mm | ≤1μm | ||
| JM-20L | 60-380 | 20 | 7.00 | 380V/2.2KW | ≤10mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
