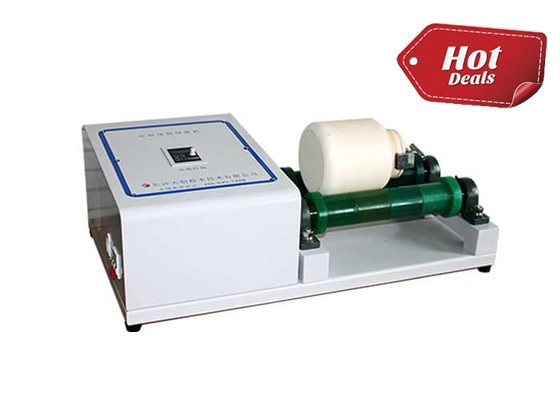

110 - 220V 5L Mini Roll Laboratory Ball Mill Uniform Particle Size High Efficiency
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QM-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Product Name: | Lab Mini Roll Ball Mill | Model No.: | QM-5 |
|---|---|---|---|
| Total Volume: | 5L | Max Load Volume: | 1.65L |
| Rotate Speed: | 60-570 RPM | Voltage: | 220V-50Hz Or 110V-60Hz |
| Power: | 0.37KW | Speed Control: | Frequency Control |
| Highlight: | High Efficiency Laboratory Ball Mill,5L Laboratory Ball Mill,Uniform Particle Size Laboratory Ball Mill |
||
Product Description
110 - 220V 5L Mini Roll Laboratory Ball Uniform Particle Size/High Efficiency
Overview
Mini Roll Laboratory Ball Mill is an advanced grinding and mixing device designed for laboratory research and small-scale production. Featuring a user-friendly interface, space-saving structure, and efficient performance, it ensures uniform particle size and consistent results. Ideal for sectors like pharmaceuticals, nanomaterials, ceramics, metallurgy, and chemical engineering, this equipment supports precision grinding for experiments, quality control, and pilot projects.
Working Principle
When the machine operates, the grinding jar rotates, causing the grinding media and material to lift before cascading under gravity. The material is pulverized through a combination of impact forces from the media's collision, as well as frictional and shear effects generated by rolling and sliding motion. This multi-action process guarantees thorough grinding and homogeneous
Applications
The Compact Lab Ball Mill is suitable for a variety of fields, including battery materials, pharmaceuticals, coatings, alloy powders, mineral processing, and advanced material research. It supports both research and small-batch production with high precision and repeatability.
Key Advantages
-
Space-saving design with intuitive controls for seamless operation.
-
Superior grinding performance, ensuring fine and consistent particle distribution.
-

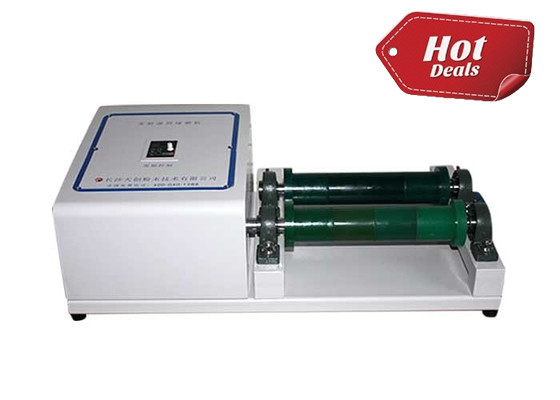

Adjustable roller spacing accommodates jars of different volumes, enhancing flexibility.
-
Quick-swap jar system simplifies workflow, supporting both wet and dry milling processes.
Technical Parameters
| Technical Parameter of Mini Roll Laboratory Ball Mill | ||||||||
| Model No. | QM-5 | QM-15 | ||||||
| Dimensions/Net Weight | 730*415*260mm/32KGS | 840*435*270mm/43KGS | ||||||
| Motor Power | 0.37kw | 0.75kw | ||||||
| Specifications of Frequency Converter | 0.4kw/220v | 0.75kw/220v | ||||||
| Rotation Speed Range | 60-570r/min±10rpm | 60-570rpm±10rpm | ||||||
| Adjustable Space Between Rollers | 120mm | 140mm | ||||||
| Max Load Per Jar | 35KGS | 80KGS | ||||||
| Sizes of Macthed Mill Jars | 0.5-5L | 10-15L | ||||||
Available Mill Jars:

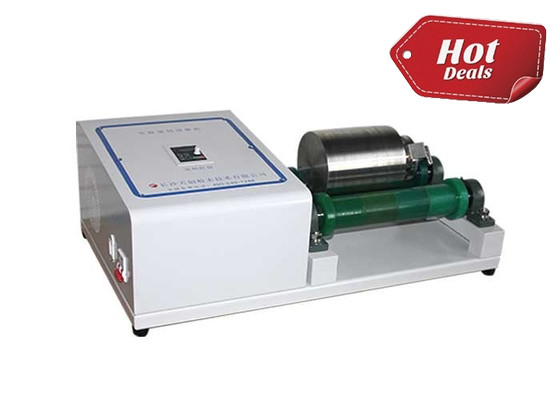

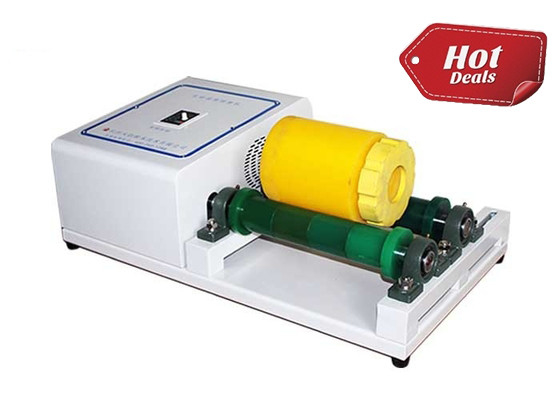

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
