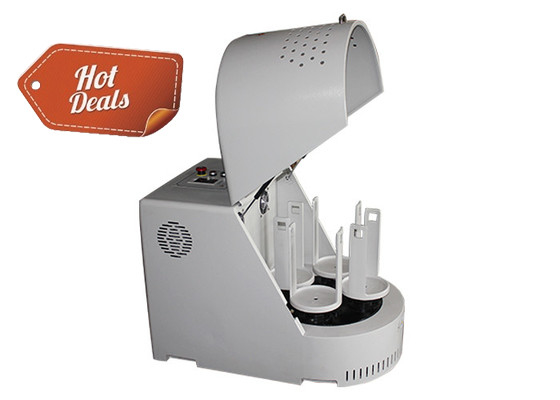

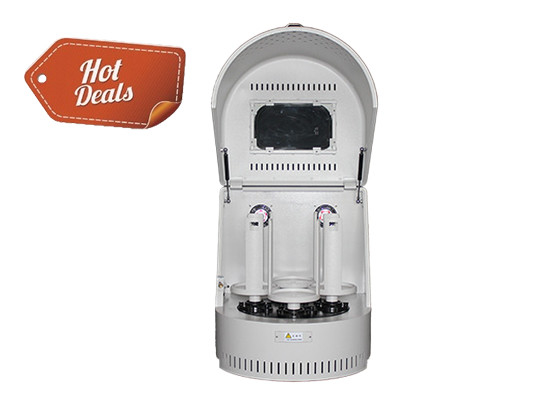

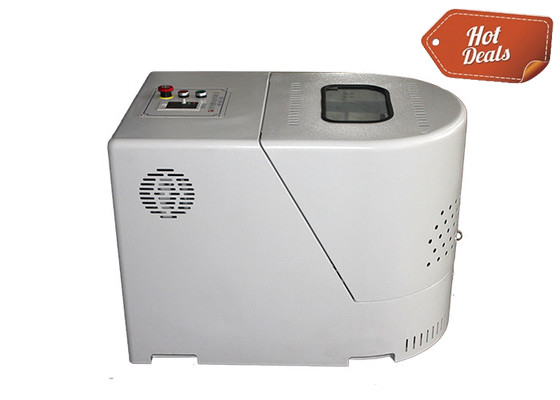

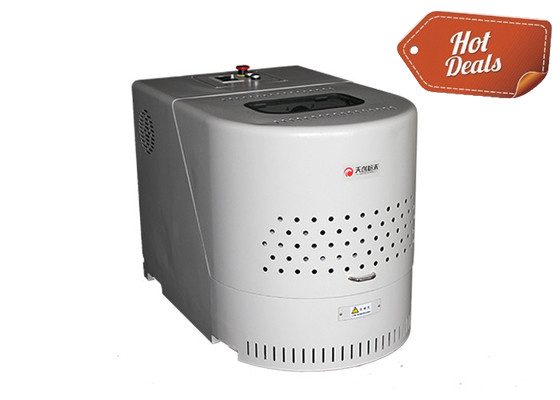

Low Noise Semi-circular Vertical Ball Mill For Sample Preparation Total Volume 10L
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-10A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton+Foam |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Semi-circle Round Laboratory Ball Mill | Model No.: | XQM-10A |
|---|---|---|---|
| Total Volume: | 10L | Max Capacity: | 3.33L |
| Rotate Speed: | 70-580 Rpm | Speed Control: | Frequency Control |
| Voltage: | 110V-60Hz Or 220V-50Hz | Power: | 1.5KW |
| Highlight: | Low noise vertical ball mill,Semi-circular vertical ball mill,Sample preparation vertical ball mill |
||
Product Description
4*2.5L Mill Jars Semi-Circle Round Laboratory Ball Mill For Sample Preparation With Lower Noise
Overview
The Benchtop Laboratory Ball Mill is an advanced grinding system designed for material research, fine powder processing, and nanomaterial development. Ideal for laboratories, R&D centers, and small-scale production, this compact mill delivers efficient grinding with minimal noise and vibration. It supports multiple grinding modes, including dry and wet milling, and can process up to four samples simultaneously, enhancing productivity. Optional vacuum milling jars enable contamination-free sample preparation for sensitive materials.
Working Principle
This ball mill operates on a multi-axis planetary motion mechanism, where grinding jars rotate at high speeds while revolving around a central axis. The intense centrifugal force generated ensures thorough impact and friction between grinding media and samples, achieving ultrafine or even nano-scale particle sizes. Adjustable rotation speeds and programmable direction control (unidirectional or alternating) allow precise customization for different materials.
Applications
Suitable for a broad range of industries, including pharmaceuticals, ceramics, battery materials, and nanotechnology, this mill excels in processing electronic components (e.g., dielectric ceramics, ferrites), catalysts, rare-earth materials, and composite powders. It is particularly effective for synthesizing lithium-ion battery materials (e.g., LiFePO₄), advanced coatings, and high-purity chemical precursors.
Key Advantages
-
High Efficiency: Advanced drive system ensures rapid grinding with uniform particle distribution.
-
Multi-Sample Processing: Four-jar configuration enables parallel experiments, saving time and resources.
-
Intelligent Control: Digital speed regulation with overload protection and programmable timers for automated operation.
-
Low Noise & Vibration: Optimized mechanical design reduces operational disturbances, ideal for lab environments.
-
Safety Compliance: Interlock mechanism halts operation when opened, ensuring user safety.
-
Versatility: Compatible with various jar materials (e.g., stainless steel, nylon, zirconia) for diverse applications.
This system combines precision, reliability, and user-friendly operation, making it a critical tool for modern material science and industrial research.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of 10.0L Vertical Semi-circle Round Laboratory Ball Mill | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-0.4A | 0.25 | 220V-50Hz 110V-60Hz |
530*300*340 | 45-435 | 90-870 |
| XQM-1A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-2A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-4A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-6A | 0.75 | 220V-50Hz 110V-60Hz |
750*470*590 | 35-335 | 70-670 |
| XQM-8A | 1.5 | 220V-50Hz 110V-60Hz |
900*600*640 | 35-290 | 70-580 |
| XQM-10A | 1.5 | 220V-50Hz 110V-60Hz |
900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars Matching with XQM-10A
Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Semi-circle Round Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-0.2S | 0.2L | 50ml | 2pcs or 4pcs | 25ml |
| XQM-0.4A | 0.4L | 50ml, 100ml | 2pcs or 4pcs | 50ml |
| XQM-1A | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2A | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4A | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-8A | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10A | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12A | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16A | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
