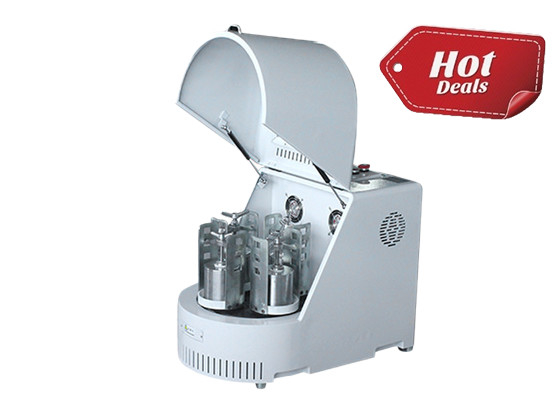

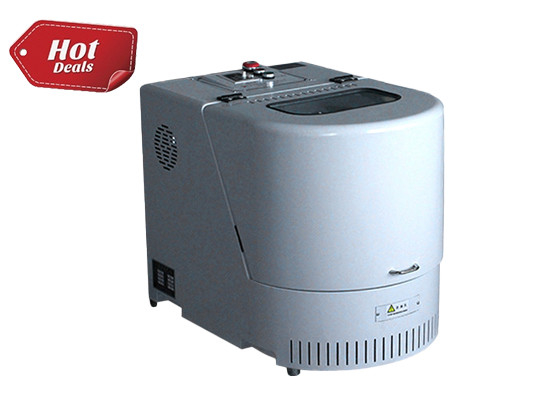

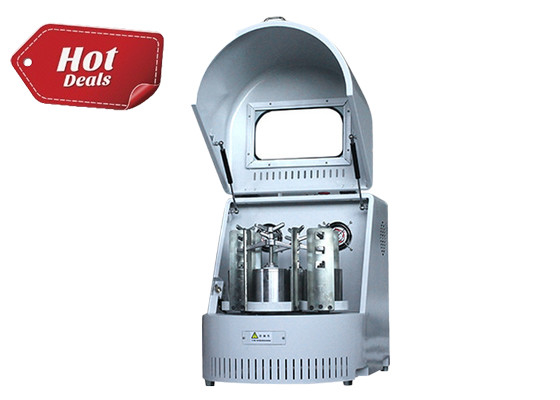

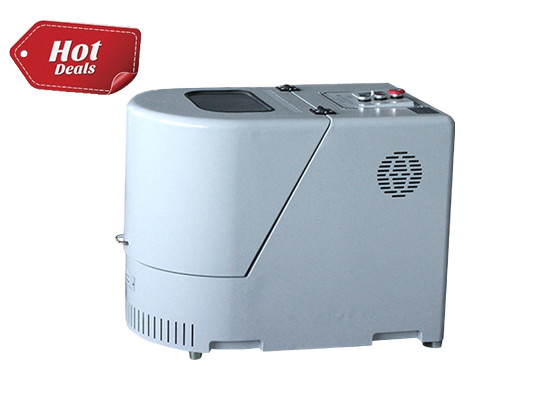

6L 220V semi-circular vertical laboratory ball mill, used for nano powder manufacturing

6L Total Volume 220V Semi Round Vertical Laboratory Ball Mill for Nano Scale Powder Making


Overview

This advanced vertical planetary ball mill is engineered for precision grinding, nano-scale powder synthesis, and material homogenization in research and small-scale production. Featuring a unique semi-circular design, it ensures efficient particle size reduction, powder blending, and sample preparation under both ambient and controlled environments. With multiple grinding stations, users can process up to four samples simultaneously, enhancing productivity. Ideal for academic labs, R&D centers, and quality control units, this system combines versatility with compactness, offering quiet operation and user-friendly controls. Optional vacuum jars enable contamination-free milling for sensitive materials.

Working Principle

Equipped with a multi-position turntable, the mill operates on a planetary motion mechanism, where jars rotate at high speeds around their own axes while revolving around a central axis. This dual motion generates intense centrifugal forces, ensuring rapid and uniform particle size reduction through collision and friction. Adjustable parameters allow dry or wet grinding, achieving fineness down to 0.1µm or even nano-level dispersion.

Applications

Suitable for diverse sectors including advanced materials, pharmaceuticals, energy storage, and electronics. Key applications include:

• Advanced Materials: Graphene, carbon nanotubes, ceramic precursors (e.g., TiO₂, ZrO₂), and nanocomposites.

• Energy: Battery materials (Li-ion cathodes/anodes), solid electrolytes, and fuel cell catalysts.

• Electronics: Semiconductor dopants, conductive pastes, and dielectric powders.

• Chemistry: Catalysts, pigments, and metal-organic frameworks (MOFs).

• Biotech: Drug formulation, bioactive ceramics, and polymer microparticles.

Key Advantages

1. Precision Control: Digital frequency modulation enables customizable speed settings for optimal grinding efficiency.

2. Multi-Sample Processing: Simultaneously handles 2–4 batches with independent jar configurations.

3. Safety & Reliability: Integrated overload protection, automatic shutdown, and interlocked safety covers.

4. Flexible Modes: Programmable for unidirectional, alternating, or interval operation to suit material requirements.

5. Low Maintenance: Robust construction with minimal vibration and noise (<60 dB).

6. Expandability: Compatible with inert gas or vacuum jars for oxygen-sensitive processes.

Innovation Highlights

• Smart Timing: Programmable cycles with auto-reverse function to prevent agglomeration.

• Material Adaptability: Processes brittle, fibrous, or high-hardness materials via adjustable ball-to-powder ratios.

• Eco-Friendly Design: Energy-efficient motor reduces power consumption by 20% compared to conventional mills.

•

Ideal for cutting-edge research in nanotechnology and functional materials, this mill bridges lab-scale innovation to pilot-scale production with repeatable results.


Technical Features


Technical Parameters


Accessories of Mill Jars & Balls

Available Mill Jars Matching with XQM-4A:

Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
