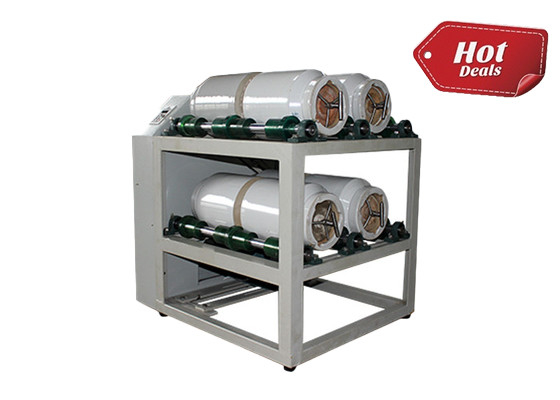

• Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

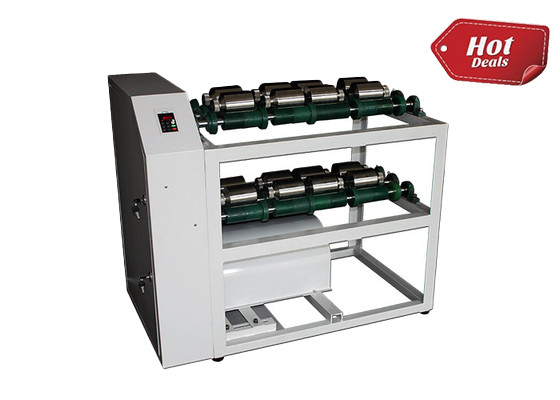

  • Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

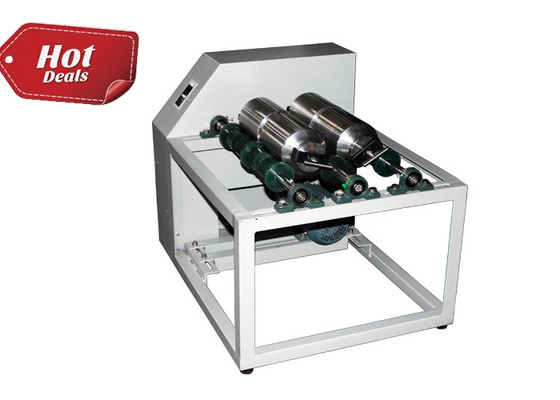

  • Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

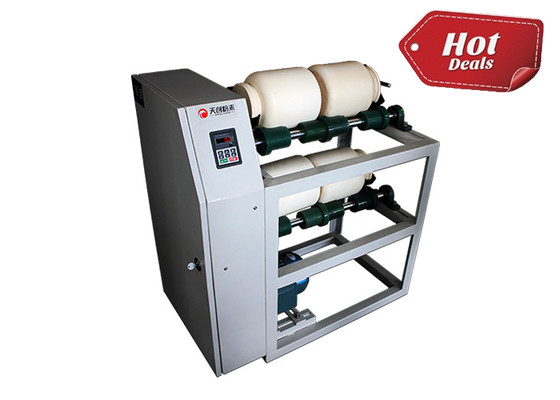

  • Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding
Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: GQM-4-5

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 work days after receiving full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now

Detail Information
Product Name: Laboratory Rolling Jar Mill Model No.: GQM-4-5
Total Volume: 20L Max Capacity: 6.6L
Rotate Speed: 50-410 Rpm Speed Control: Frequency Controller
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.75KW
Highlight:

Intermittent Grinding Lab Scale Ball Mill

,

Continuous Grinding Lab Scale Ball Mill

,

Rolling Jar Lab Scale Ball Mill

Product Description

220v Multiple Work Positions Rolling Jar Laboratory Ball Mill Intermittent & Continuous Grinding



Overview



The Multi-Station Laboratory Roller Mill is an advanced benchtop grinding system designed for ultra-fine powder processing in research, pilot production, and small-scale manufacturing. Supporting both intermittent and continuous operation, this versatile equipment ensures efficient sample preparation across industries such as nanomaterials, pharmaceuticals, ceramics, metallurgy, and advanced composites.

Key Advantages
Multi-Jar Processing: Simultaneously grind different materials in separate jars for enhanced productivity.

Intelligent Timing Control: Programmable digital settings allow precise batch processing with pause/resume functionality.

Gentle Yet Efficient Grinding: Optimized roller rotation ensures smooth jar movement, promoting optimal media cascading for uniform particle reduction.

Low-Noise, Wear-Resistant Design: High-grade rubber rollers minimize vibration and extend operational lifespan.

How It Works
The system operates by rotating sealed jars horizontally, causing grinding media (balls or beads) to cascade and shear materials through impact, friction, and rolling compression. This mechanism ensures consistent sub-micron particle refinement while preventing cross-contamination.

Applications
Ideal for processing:
✔ Battery materials (anode/cathode powders)
✔ Pharmaceutical compounds & APIs
✔ Pigments, dyes, and specialty chemicals
✔ Ceramic precursors & glass frits
✔ Metal alloys and nanocomposites

With user-friendly controls, compact footprint, and adaptable grinding modes, this mill is an essential tool for labs prioritizing precision, reproducibility, and efficiency in material development.



Technical Parameters



Technical Parameters of Rolling Jar Laboratory Ball Mill
Category Dimensions/WT
(mm)		 Model No. Motor
Power(kw)		 Voltage Rotate Speed
(rpm)
2 work station 950*480*685mm/59kgs GQM-2-5 0.37 220V-50Hz/60Hz 50-410
1130*550*690mm/80kgs GQM-2-15 1.1 220V-50Hz/60Hz 40-365
13506550*690mm/92kgs GQM-2-20 1.5 220V-50Hz/60Hz 40-365
4 work station 950*660*690mm/70kgs GQM-4-5
Single Layer		 0.75 220V-50Hz/60Hz 50-410
950*480*870mm/92kgs GQM-4-5
Double Layers		 0.75 220V-50Hz/60Hz 50-410
1130*800*690mm/95kgs GQM-4-15 1.5 220V-50Hz/60Hz 40-365
1350*820*690mm/122kgs GQM-4-20 2.2 380V-50Hz/60Hz 40-340
8 work station 950*660*960mm/106kgs GQM-8-5 1.5 220V-50Hz/60Hz 50-410
1130*800*690mm/152kgs GQM-8-15 2.2 380V-50Hz/60Hz 40-365



Comprehensive Grinding Media & Jar Solutions for Precision Milling



To maximize the versatility of your laboratory grinding processes, we offer a full range of high-performance milling jars and grinding balls, engineered for diverse material compatibility and optimal size reduction.

Milling Jar Options

  • Stainless Steel Jars: Ideal for general-purpose grinding with high durability.

  • Ceramic Jars (Alumina/Zirconia): Perfect for contamination-sensitive applications.

  • Polymer Jars (Nylon, PU, PTFE): Best for chemical resistance and sticky materials.

  • Specialty Jars: Customizable options for unique milling requirements.

Grinding Media Selection

  • High-Density Balls (Tungsten, Steel): For rapid, high-impact pulverization.

  • Inert Ceramic Balls (ZrO₂, Al₂O₃): Low-wear, ideal for ultra-fine grinding.

  • Natural Media (Agate): Ensures minimal contamination in sensitive analyses.

Each accessory is precision-crafted to enhance milling efficiency, prevent cross-contamination, and extend equipment lifespan. Whether for pharmaceuticals, nanomaterials, or metallurgy, our solutions ensure consistent, repeatable results.



Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding 0





Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding 1





Lab roll ball mill/ planetary ball mill/ Sitrred ball mill
