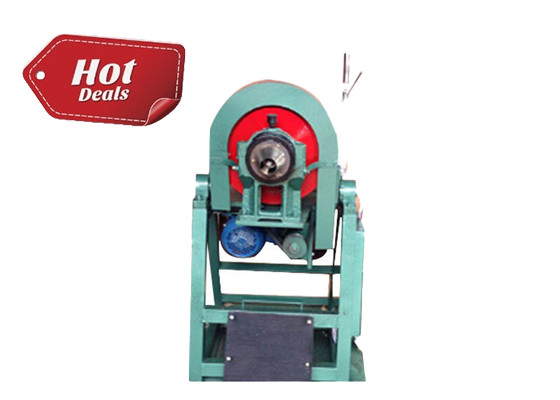

Industrial Mining Cone Laboratory Grinding Cone Ball Mill For Mineral Processing

1. Factory Direct Sale Industrial Mining Machinery Conical Mill Laboratory Grinding Cone Ball Mill For Minerals

Technical Overview

Our advanced industrial cone ball mill represents a breakthrough in laboratory and small-scale production grinding technology. Designed for superior material processing, this versatile system combines precision engineering with intelligent control for optimal particle size reduction and material homogenization.

Key Specifications

• Processing Methods: Dry/Wet grinding capability

• Speed Control: Variable frequency drive (wide range adjustment)

• Operation Modes: Programmable timer for automated processing

• Noise Level: <60dB for laboratory-friendly operation

• Sealing System: Advanced dust-proof design

•

Innovative Features

1. Smart Control System

• Programmable operation duration

• Digital speed regulation display

• Memory function for process parameters

• Overload protection mechanism

•

2. Advanced Grinding Technology

• Optimized cone geometry for efficient energy transfer

• Multi-layer mechanical sealing

• Anti-vibration design for stable operation

• Quick-release sample container

•

Industrial Applications

Materials Processing

• Metal/Non-metal ore beneficiation

• Cement and silicate products

• Refractory materials preparation

• Fertilizer raw material processing

Specialty Industries

• Coating and ink formulations

• Fuel additive processing

• Food ingredient refinement

• Glass and ceramic production

•

Performance Advantages

• Precision Grinding: Achieves ultra-fine particle sizes

• Process Flexibility: Adaptable to various materials

• Energy Efficiency: 25-30% power savings

• Throughput: High-efficiency sample preparation

• Clean Operation: Minimal dust pollution

Technical Specifications

• Capacity Range: Laboratory to pilot-scale volumes

• Power Options: Standard industrial voltage

• Construction: Durable wear-resistant materials

• Dimensions: Compact footprint

• Weight: Lightweight yet stable design

•

System Benefits

1. Frequency conversion technology ensures precise speed control

2. Uniform grinding results with excellent repeatability

3. Easy maintenance and cleaning procedures

4. Suitable for continuous operation

5. Compatible with various grinding media

This industrial-grade cone ball mill combines German engineering principles with Japanese manufacturing precision to deliver:

• Consistent processing quality

• Long service life

• User-friendly operation

• Low maintenance requirements

The system's versatile design makes it ideal for:

• Mining and metallurgical research

• Building materials development

• Chemical processing labs

• Food technology research

• Quality control laboratories

With its combination of compact design and industrial performance, our cone ball mill establishes new standards in laboratory and small-scale grinding technology. The unit's advanced sealing system and intelligent controls provide researchers and technicians with unparalleled processing capabilities while maintaining a clean, safe working environment.

Value Proposition

• Reduces processing time by 40% compared to conventional mills

• Delivers more uniform particle size distribution

• Lowers energy consumption while maintaining output

• Simplifies operation with automated controls

• Minimizes cross-contamination risks

This multi-purpose grinding solution represents an excellent investment for facilities requiring reliable, high-performance sample preparation across multiple industries and applications.

2. Working principle of conical ball mill
The industrial conical ball mill is a horizontal cylindrical rotating device driven by external gears, with two silos and a grid ball mill. The material enters the first chamber of the mill uniformly through the feeding hollow shaft screw from the feeding device. This chamber has a stepped or corrugated lining filled with steel balls of different sizes. The rotation of the cylinder generates centrifugal force, which brings the steel ball to a certain height and then drops it, causing strong impact and grinding on the material. After rough grinding in the first silo, the material enters the second silo through a single-layer partition. The second box is lined with a flat lining plate containing steel balls, where the material is further ground. The ground powder is discharged through the discharge grate to complete the grinding operation.

3,Structure Features of Indusrial Conical Ball Mill

This machine is composed of feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of steel castings, and the liner can be removed and replaced. The big rotary gear is processed by casting hobbing, and the cylinder is lined with wear-resistant lining plates, which has good wear resistance. The machine operates smoothly with reliable performance.

4,Technical Parameters of Lab Cone Ball Mill
