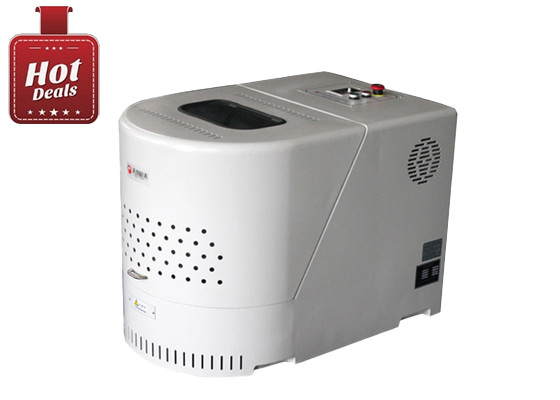

Super Fine Powder Grinding Laboratory Ball Mill Machine Small Size High Efficiency

Planetary ball mill laboratory/super fine powder grinding machine/small ball mill

Overview

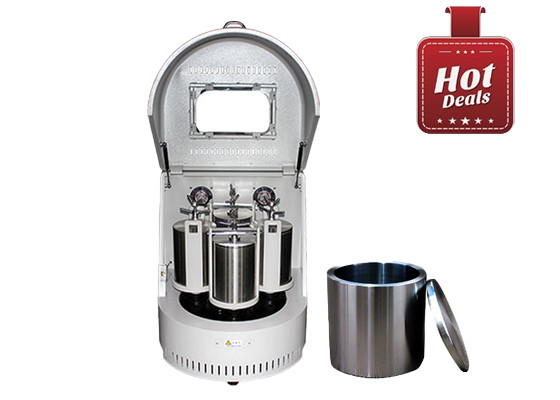

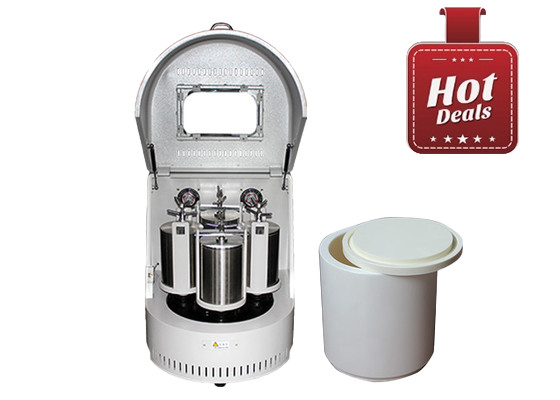

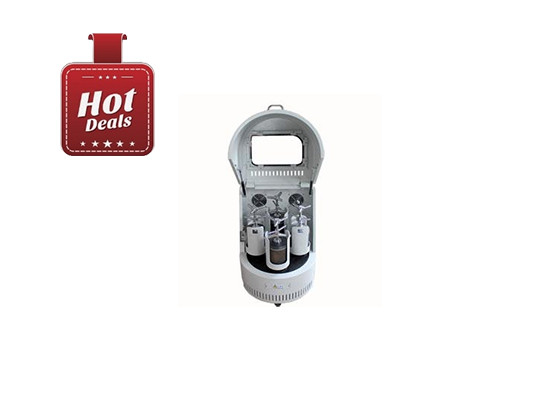

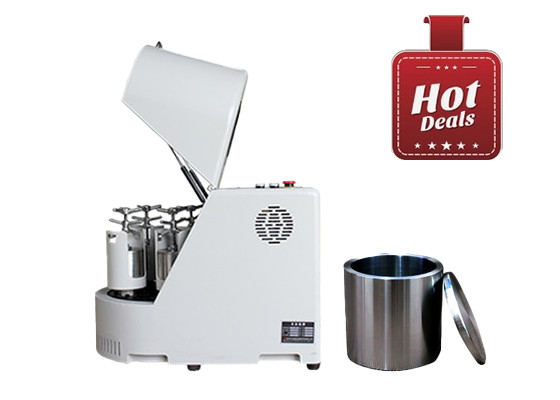

Our advanced 2L planetary ball mill represents the next generation in laboratory-scale grinding technology, combining precision engineering with versatile functionality for superior material processing. Designed for both research and industrial applications, this compact system delivers exceptional performance in particle size reduction and material homogenization.

Key Specifications

• Processing Capacity: 2L total volume (4×0.5L jars)

• Particle Size Range: 0.1μm to nano-scale achievable

• Power Options: Dual-voltage 110-220V operation

• Control System: Digital programmable timer (0-99hrs/0-59min)

• Safety Features: Automatic locking mechanism, overload protection

•

Innovative Design Features

1. Advanced Drive System

• Patented oil-immersed gear transmission (50% noise reduction)

• PLC frequency conversion control with memory function

• Precision helical gears replace traditional belt drives

•

2. Multi-Processing Capabilities

• Dry/Wet grinding modes

• Vacuum/Protective atmosphere options

• Low/High temperature configurations (-20°C to 100°C)

•

3. User-Centric Design

• Universal wheel mobility with stabilizing feet

• V-clip automatic jar locking system

• Safety interlock switch mechanism

• Compact footprint with low center of gravity

•

Application Spectrum

Materials Science

• Nanomaterial synthesis

• Advanced ceramics processing

• Battery material development

• Metal alloy refinement

Electronic Components

• MLCC dielectric materials

• Varistor/Thermistor precursors

• Ferrite core materials

• Electronic paste formulations

Chemical & Pharmaceutical

• Catalyst nanoparticle production

• Pharmaceutical co-crystals

• Specialty pigment dispersion

• Rare earth compound processing

•

Performance Advantages

• Precision Grinding: Achieves 0.1μm particle consistency

• Process Flexibility: 6 operational modes

• Energy Efficiency: 30% power savings

• Throughput: 4 simultaneous samples

• Noise Level: <55dB in operation

•

Technical Specifications

• Rotation Speed: 100-800rpm programmable

• Jar Materials: Stainless steel, ZrO₂, Al₂O₃, agate

• Grinding Media: 3-20mm balls (various materials)

• Dimensions: 500×400×350mm

• Weight: 25kg

•

System Features

1. Patented oil-seal mute technology extends service life 2x

2. Automatic gear locking ensures jar security

3. Anti-deposition design prevents material sticking

4. Four-sample parallel processing capability

5. Compact structure with vibration damping

This research-grade planetary ball mill combines German engineering precision with Japanese manufacturing quality to deliver:

• Unmatched process reproducibility

• Laboratory-proven reliability

• Intuitive operation

• Low-maintenance performance

The system's modular design supports over 20 different jar configurations, making it ideal for:

• University research labs

• Materials development centers

• Pharmaceutical R&D

• Quality control laboratories

• Industrial pilot plants

With its combination of compact dimensions and industrial-grade performance, our 2L planetary ball mill sets new benchmarks in laboratory powder processing technology, delivering consistent, high-quality results for both research and production applications. The unit's comprehensive safety features and ergonomic design meet all international laboratory equipment standards while providing researchers with unparalleled control over particle size reduction processes.

Technical Parameters of 2L 110 - 220v Mini Laboratory Ball Mill

Accessories of 2L 110 - 220v Mini Laboratory Ball Mill

In addition to planetary ball mills, our factory also provides various grinding pots, such as stainless steel grinding pots, zirconia grinding pots, alumina grinding pots, nylon grinding pots, PU grinding pots, tungsten grinding pots, hard metal grinding pots, and tempered nylon grinding pots. In addition, we also provide stainless steel grinding balls, zirconia grinding balls, alumina grinding balls, PU grinding balls, steel carbon grinding balls, tungsten grinding balls, etc.

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
