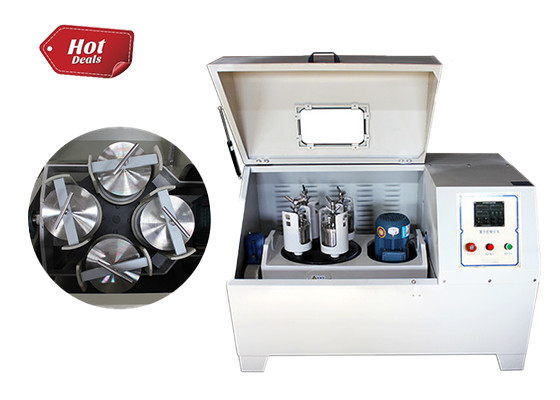

16L Laboratory Ball Mill Factory Mineral Crusher Pigment Grinding Machine Full-directional

16L Laboratory Ball Mill Factory Mineral Crusher Pigment Grinding Machine Full-directional

Overview

Our next-generation planetary ball mill system represents a quantum leap in precision material processing technology. Engineered for cutting-edge research and industrial applications, this advanced equipment delivers unparalleled performance in nanomaterial synthesis, ultrafine particle reduction, and homogeneous powder blending.

Technical Specifications

• Processing Capacity: Quad-station configuration for simultaneous multi-sample processing

• Particle Size Reduction: Achieves ultrafine grinding down to 0.1μm

• Operational Modes: Supports both dry and wet processing methodologies

• Vacuum Compatibility: Optional vacuum milling system for sensitive materials

•

Innovative Working Mechanism

The system employs a revolutionary 360° planetary motion mechanism, where four independently controlled grinding stations rotate simultaneously on a central disc. This dual-axis rotation creates a complex kinematic pattern that ensures:

• Complete material coverage without dead zones

• Ultra-high energy transfer efficiency

• Perfectly homogeneous particle distribution

•

Industry-Leading Applications

Advanced Materials Development

• Nanostructured ceramics and composites

• Energy storage materials (Li-ion battery components)

• Smart materials (piezoelectric/ferroelectric compounds)

• Quantum dot and phosphor synthesis

Electronics Manufacturing

• MLCC dielectric materials

• Varistor and thermistor precursors

• Magnetic core materials (Ni-Zn/Mn-Zn ferrites)

• Electronic paste formulations

Chemical & Pharmaceutical

• Catalyst nanoparticle production

• Drug particle size reduction

• Specialty pigment manufacturing

• Rare earth material processing

•

System Advantages

1. Precision Engineering

2.

• Helical gear transmission system ensures ±0.5% speed consistency

• Dynamic balancing technology reduces vibration to <0.01mm

•

2. Intelligent Control

3.

• Multi-stage programmable processing

• Real-time parameter monitoring

• Automatic emergency protection

•

3. Material Processing Innovation

4.

• Anti-adhesion jar coating technology

• Multi-layer sealing system

• Temperature-controlled operation

•

Performance Features

• Processing Capacity: 4×100ml standard configuration (customizable)

• Rotation Speed: 50-800rpm continuously adjustable

• Noise Level: <55dB in standard operation

• Power Requirements: 220V/50Hz or customizable

This planetary ball mill system sets new benchmarks in laboratory-scale material processing, combining German-engineered precision with Japanese-quality reliability. Its unmatched versatility makes it indispensable for:

• Materials science research

• Pharmaceutical development

• Advanced ceramics production

• Nanotechnology applications

The system's modular design accommodates over 20 different jar materials and configurations, enabling processing of everything from super-hard alloys to delicate organic compounds. With its combination of precision engineering and intelligent operation, our planetary ball mill represents the future of laboratory-scale material processing technology.

Following are some powder samples for your reference.

Technical Features

Technical Parameters

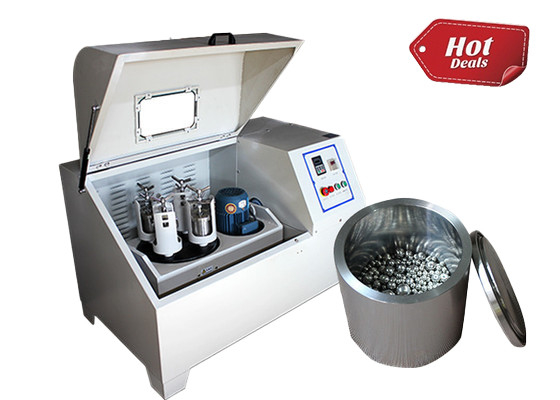

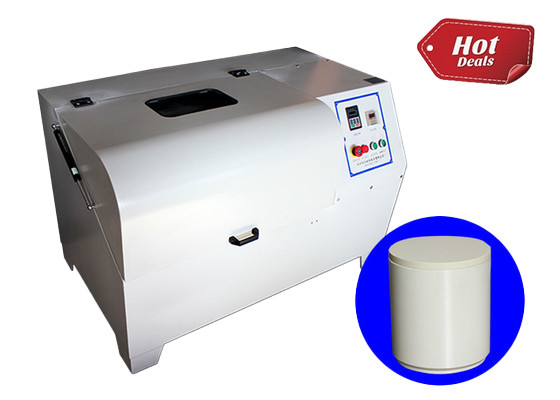

Accessories of Mill Jars & Balls

Available Mill Jars:

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.

Available Mill Balls:

304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.

TENCAN Planetary ball mills are available in different versions.

Please refer to our website www.lab-mills.com for a complete overview of the different performance features.
