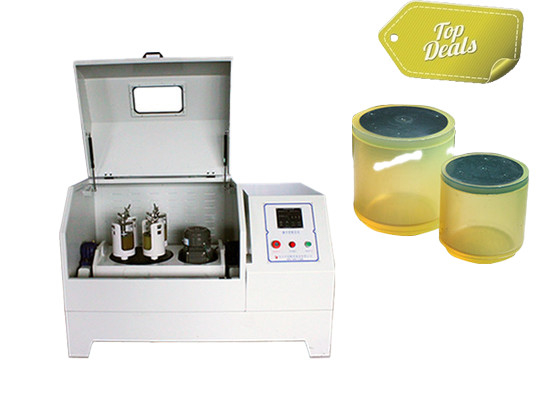

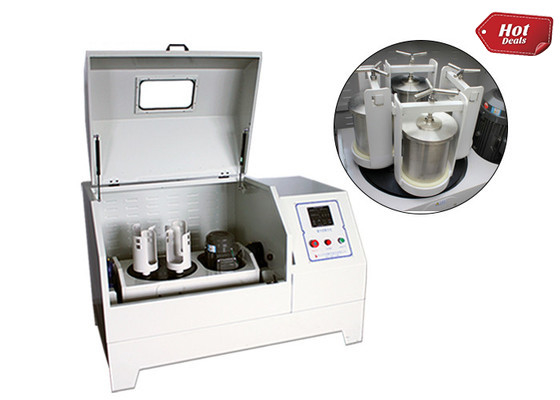

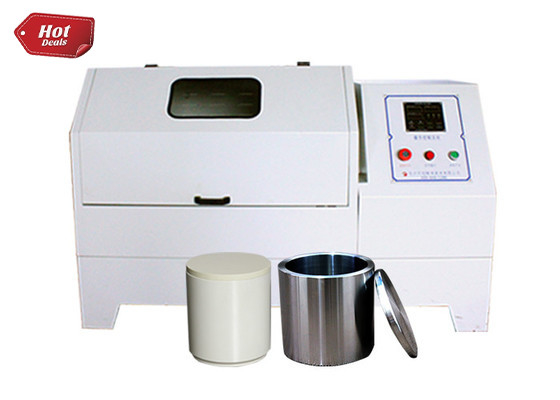

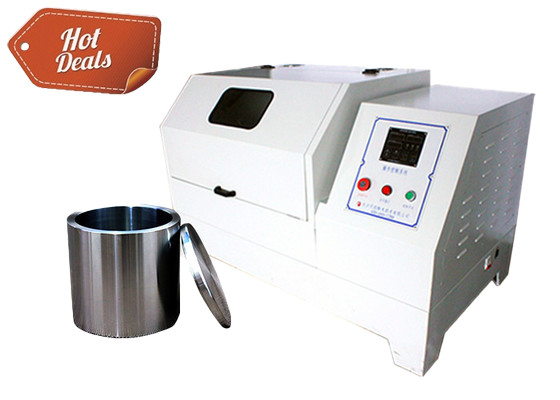

Laboratory ball mill factory sample grinder suitable for laboratory omnidirectional nano powder grinder 4L
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QXQM-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Plywood Case |
| Delivery Time: | 10-15 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Product Name: | Laboratory Dual Planetary Ball Mill | Model No.: | QXQM-4 |
|---|---|---|---|
| Total Volume: | 4L | Max Capacity: | 1.32L |
| Rotate Speed: | 70-670 Rpm | Voltage: | 220V-50Hz Or 110V-60Hz |
| Power: | 0.75KW | Speed Control: | Frequency Converter |
| Type: | Ball Mill | ||
| Highlight: | Laboratory ball mill factory,omnidirectional nano powder grinder,4L Laboratory ball mill |
||
Product Description
Laboratory ball mill factory sample grinder, suitable for laboratory omnidirectional nano powder grinder 4L
Revolutionary Planetary Ball Mill System for Advanced Material Processing
Our state-of-the-art planetary ball milling system redefines precision in material research and development, offering unparalleled capabilities for nanomaterial synthesis and industrial-scale powder processing.
System Highlights:
-
Quad-station synchronous processing platform with intelligent load balancing
-
Advanced vacuum integration for sensitive material preservation
-
Ultra-compact footprint with industry-leading noise reduction technology
-
Smart adaptive control system with real-time process monitoring
-
Technical Specifications:
✓ True 360° omnidirectional milling with zero dead zones
✓ Precision-engineered transmission system ensuring ±0.5% speed consistency
✓ Multi-modal operation supporting dry, wet, and cryogenic grinding
✓ Advanced anti-adhesion vessel coating technology
Industrial Applications Include:
• Next-generation battery material development (solid-state electrolytes, silicon anodes)
• Advanced ceramic composites for electronics and optoelectronics
• High-performance magnetic and piezoelectric materials
• Pharmaceutical-grade nanoparticle production
• Sustainable material recycling processes
The system's proprietary grinding dynamics achieve particle sizes down to 100nm with exceptional uniformity, while its modular design accommodates over 15 specialized grinding media options. Featuring IoT-enabled process tracking and cloud-based data management, this solution represents the future of laboratory-scale material processing for academic research institutions and industrial R&D facilities worldwide. Following are some powder samples for your reference.,
Technical Features
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 48hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
| Parameters of Full-Directional Laboratory Ball mill | |||||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 | 1-9999 | 1-999 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 | 1-9999 | 1-999 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 | 1-9999 | 1-999 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 | 1-9999 | 1-999 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 | 1-9999 | 1-999 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 | 1-9999 | 1-999 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 | 1-9999 | 1-999 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
TENCAN Planetary ball mills are available in different versions.
Please refer to our website www.lab-mills.com for a complete overview of the different performance features.
