Compact Stir Ball Mill with 110V-60Hz Voltage and 60-140 R.p.m Spindle Speed
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | JM-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood case with Foam |
| Delivery Time: | 20-30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 125 Set/Sets per Month |
|
Detail Information |
|||
| Other Service: | Customized Tank | Max Feeding Size: | 10 Mm |
|---|---|---|---|
| Weight: | 790kg | Max Capacity: | 35L |
| Product Name: | Production Type Stir Ball Mill | Key Word: | Stirring Ball Mill |
| Output Size (mesh): | Minimum 0.1μm | Power: | 7.5KW |
| High Light: | Compact Stir Ball Mill,140Rpm Stir Ball Mill,110V Lab Ball Mill |
||
Product Description

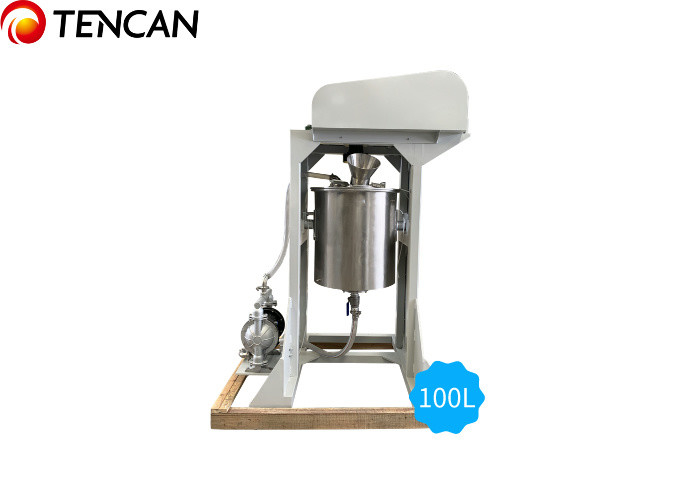

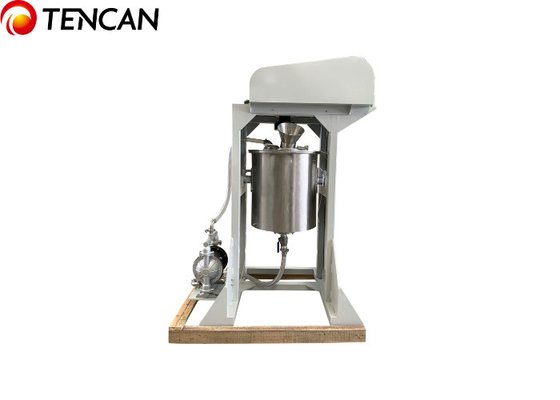

Compact Stir Ball Mill with 110V-60Hz Voltage and 60-140 R.p.m Spindle Speed
Product Description:
The Heavy Duty Stirred Ball Mill is comprised of a jar containing inner grinding media, as well as a stirring device and other auxiliary components, including a recycling device, cooling device, timing device, speed adjusting controller, and more. Its exceptional efficiency and ability to produce fine particles make it an ideal tool for various processes. This type of ball mill is highly sought after by universities, research centers, and enterprises for its ability to crush new materials and conduct research on painting. Additionally, its small batch size, low energy consumption, and affordable price make it a practical choice.
Features:
- Product Name: Stirred Ball Mill
- Output(kg/h): 10 - 35 Kg/h
- Key Word: Stirring Ball Mill
- Weight: 790kg
- Voltage: 220V/50Hz,110V-60Hz
- Max Feeding Size: 10 Mm
- Vertical Stirred Ball Mill Machine
- Vertical Stirred Ball Mill Machine
- Vertical Stirred Ball Mill Machine
- Vertical Stirred Ball Mill Machine
Technical Parameters:
| Product Name | Production Type Stir Ball Mill |
|---|---|
| Other Service | Customized Tank |
| Key Word | Stirring Ball Mill, Agitated Ball Mill, Lab Stirring Ball Mill, Stirred Ball Mill Equipment |
| Power | 7.5KW |
| Range of Spindle Speed | 60-140 R.p.m |
| Warranty | 1 Year |
| Output | 10 - 35 Kg/h |
| Weight | 790kg |
| Max Capacity | 35L |
| Voltage | 220V/50Hz, 110V-60Hz |
Applications:
The use of the heavy stirred ball mill has become prevalent in a variety of industries, including zirconia silicate, zirconia, alumina oxide, ceramic, chemical, electronic materials, magnetic materials, paper-making, painting, non-metal minerals, new materials, coating, graphite, calcium carbonate, and medicine. Its versatility allows for efficient processing and production in these diverse fields.
In particular, the heavy duty stir ball mill has proven to be a valuable tool in the chocolate making industry, especially when equipped with a pump and recycling pipe system. This allows for even and consistent mixing, resulting in high-quality chocolate products.
Customization:
Brand Name: TENCAN
Model Number: JM-100
Place of Origin: Hunan China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood case with Foam
Delivery Time: 20-30 Days
Payment Terms: T/T
Supply Ability: 125 Set/Sets per Month
The Stirred Ball Mill, also known as a vertical stirred ball mill machine, is a high efficiency grinding equipment that utilizes the principle of impact and grinding to reduce particle size. It is suitable for grinding and dispersing various materials such as ore, ceramic, pigment, magnetic material, and etc.
- Customized tank design to meet specific production needs
- ISO CE certification ensures high quality and reliability
- Max feeding size of 10 mm for efficient grinding
- Output range of 10 - 35 kg/h for high production capacity
- Packaged in a sturdy plywood case with foam for safe transportation
Production Type Stir Ball Mill
We also offer customized tank design and fabrication services to meet your specific production needs.
Don't hesitate to contact us for more information and to place your order. We offer competitive prices and timely delivery to ensure your complete satisfaction.
