Oily Materials Fineness Grinding Lab Stirring Ball Mill for 1-0.7Kg/h Output
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | JM-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood case with Foam |
| Delivery Time: | 3-7 Days |
| Payment Terms: | T/T |
| Supply Ability: | 340 Set/Sets per Month |
|
Detail Information |
|||
| Other Service: | Customized Tank | Range Of Spindle Speed(r.p.m): | 50-1400 R.p.m |
|---|---|---|---|
| Product Name: | PU Liner Stir Ball Mill | Voltage: | 220V/50Hz,110V-60Hz |
| Output Size (mesh): | Minimum 0.1μm | Max Feeding Size: | 10 Mm |
| Key Word: | Stirring Ball Mill | Output(kg/h): | 1 - 0.7 Kg/h |
| High Light: | Lab Stirring Ball Mill 0.7Kg/h,Oily Materials Stirring Ball Mill,Fineness Grinding Stirred Ball Mill |
||
Product Description

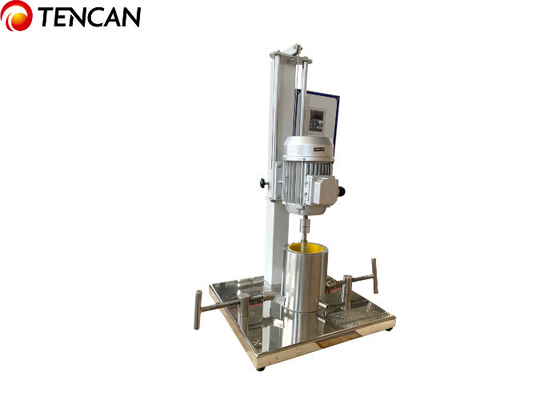

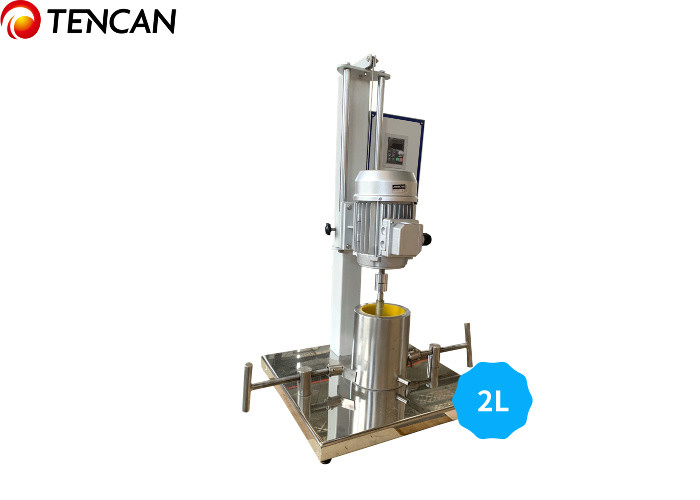

Oily Materials Fineness Grinding Lab Stirring Ball Mill for 1-0.7Kg/h Output
Product Description:
The Lab Stirred Ball Mill is a versatile equipment designed for various processes in universities, research centers, and enterprises. It is composed of a jar with inner grinding media, a stirring device, and other auxiliary devices such as a recycling device, cooling device, timing device, and speed adjusting controller. Its highly efficient and precise performance makes it suitable for a wide range of technological requirements.
The stirred ball mill is an ideal choice for crushing new materials and conducting research on painting. Its small batch size, low power consumption, and affordable price make it a popular choice among users.
When the machine is rotating at a high speed, the main axis drives the grinding media to move irregularly. This movement crushes, grinds, and shears the materials into fine granularity powder. The size, shape, and matching ratio of the grinding media can affect the final result of the grinding process. Generally, a larger mill media size results in a finer grinding powder.
Properly matching the ratio of grinding media and adjusting the rotation speed can significantly improve the grinding effect of the stirred ball mill.
Features:
- Product Name: PU Liner Stir Ball Mill
- Range of Spindle Speed(r.p.m): 50-1400 R.p.m
- Warranty: 1 YEAR
- Max Capacity: 0.7L
- Voltage: 220V/50Hz,110V-60Hz
- Agitated Ball Mill
- Lab Stirring Ball Mill
- Stirred Media Mill
Technical Parameters:
| Technical Parameters of Stirred Ball Mill | |
|---|---|
| Voltage | 220V/50Hz, 110V-60Hz |
| Product Name | PU Liner Stir Ball Mill |
| Max Capacity | 0.7L |
| Output Size (mesh) | Minimum 0.1μm |
| Range of Spindle Speed (r.p.m) | 50-1400 R.p.m |
| Max Feeding Size | 10 mm |
| Output (kg/h) | 1 - 0.7 kg/h |
| Brand Name | Tencan |
| Power | 0.37KW |
| Warranty | 1 YEAR |
Applications:
The Lab Stirred Ball Mill is extensively utilized in a variety of industries and applications, such as zirconia silicate production, zirconia ceramics, alumina oxide refinement, ceramic processing, chemical synthesis, electronic materials production, magnetic material development, paper-making processes, painting production, non-metal mineral processing, production of new materials, coating production, graphite processing, calcium carbonate refinement, and pharmaceutical production. The versatile nature of this machine makes it suitable for a diverse range of materials and purposes.
Customization:
Our Stirred Ball Mill, also known as a stirring ball mill lab, is a high-efficiency and energy-saving grinding equipment designed for laboratory use. It is widely used for grinding and mixing various materials in chemical, pharmaceutical, and food industries.
As a leading manufacturer in China, TENCAN offers customized services for our JM-2 Stirred Ball Mill to meet the specific needs of our customers. We will work closely with you to design and manufacture a Stirred Ball Mill that best suits your unique requirements.
Some of the customizable features of our Stirred Ball Mill include:
- Customized tank size and material
- Adjustable spindle speed range
- Customized voltage and frequency
- Max feeding size can be adjusted according to your needs
We understand that each customer has different requirements, and we are committed to providing the best solution for your grinding needs. Contact us now to learn more about our Stirred Ball Mill and our customized services.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is TENCAN. - Q: What is the model number of this product?
A: The model number of this product is JM-2. - Q: Where is this product manufactured?
A: This product is manufactured in Hunan, China. - Q: Is this product certified?
A: Yes, this product is certified with ISO and CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
