Product Description:

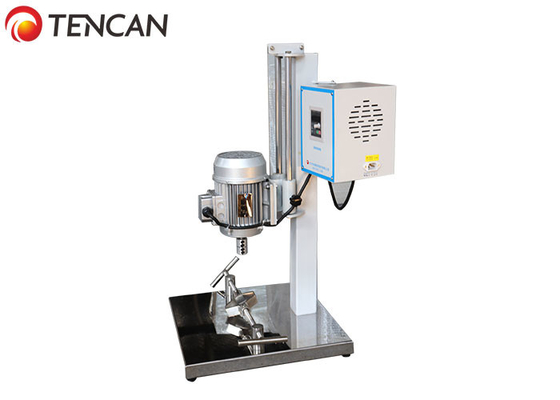

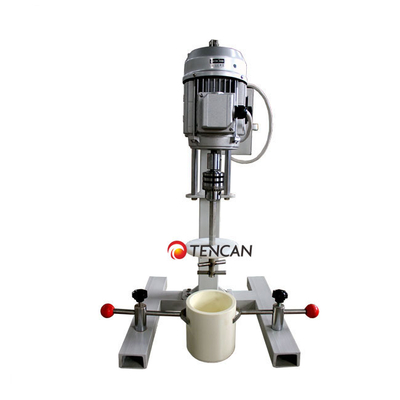

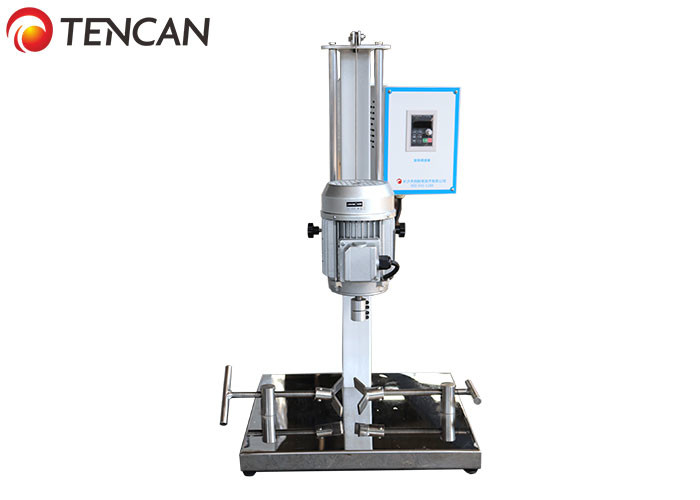

Tencan Stirred Ball Mill is a kind of vertical agitated ball mill, which is designed for ultra-fine grinding and mixing with excellent performance. It has a wide range of applications in the fields of minerals, chemicals, metallurgy, etc. It can be used for dry and wet grinding. The feeding size is 1 - 5 mm, and the power is 0.37KW. The distinctive feature of this machine is that its internal stirring rod has a unique stirring structure that can significantly improve the grinding efficiency of the material. The product comes with a 1 YEAR warranty.
The Stirred Ball Mill is ideal for laboratory applications, providing efficient and uniform grinding of a variety of materials. It is also suitable for grinding and mixing of a variety of materials such as minerals, chemicals, and other materials. Stirred Ball Mill is the perfect choice for research and development, quality control, and small batch production. It is widely used in laboratory and industrial applications, such as research and development, quality control, and small batch production.
Tencan Stirred Ball Mill is the perfect choice for those looking for a stirring ball mill lab, Agitated Ball Mill or Vertical Stirred Agitated Ball Mill. It is designed to provide excellent grinding and mixing performance with a long service life, and comes with a 1 YEAR warranty.
Features:
- Product Name: Stirred Ball Mill
- Delivery time: 7-15 Days
- Warranty: 1 YEAR
- Output(kg/h): 0.1 - 0.7 Kg/h
- Range of Spindle Speed(r.p.m): 50 - 1400 R.p.m
- Highlight: stirring ball mill lab, stir ball mill, stir ball mill
Technical parameters
| model |
Overall dimensions
(mm) |
Frequency conversion speed
(r/min) |
Equipment weight
(KG) |
Loading capacity
(L) |
Motor power
(KW) |
Grinding barrel material
(material thickness) |
Grinding barrel size
(without water jacket) |
Grinding barrel size
(with water jacket) |
| JM-1L manual lifting |
750X450X800 |
0~1400 |
29 |
0.35 |
0.37 |
Stainless steel, carbon steel (about 5mm) |
Φ107*142 |
Φ133*142 |
| Zirconia, corundum (about 10mm) |
Φ128*138 |
Φ168*143 |
| PTFE, nylon (about 10mm) |
Φ115*160 |
Φ144*165 |
| Polyurethane (approx. 6mm) |
Φ114*165 |
Φ132*165 |
| JM-2L manual lifting |
750X450X800 |
0~1400 |
29 |
0.7 |
0.37 |
Stainless steel, carbon steel (about 5mm) |
Φ132*180 |
Φ122*180 |
| Zirconia, corundum (about 10mm) |
Φ158*150 |
Φ192*155 |
| PTFE, nylon (about 10mm) |
Φ139*195 |
Φ180*200 |
| Polyurethane (approx. 6mm) |
Φ144*174 |
Φ176*174 |
| JM-3L manual lifting |
750X450X800 |
0~1400 |
29 |
1.05 |
0.37 |
Stainless steel, carbon steel (about 5mm) |
Φ158*182 |
Φ192*182 |
| Zirconia, corundum (about 10mm) |
Φ159*205 |
Φ192*208 |
| PTFE, nylon (about 10mm) |
Φ159*228 |
Φ192*235 |
| Polyurethane (approx. 7mm) |
Φ158*210 |
Φ192*215 |
* JM1~3L has no discharge valve and delivery pump, and the feeding particle size is ≤5mm;
The spindle drives the mixer to rotate at high speed, causing the grinding medium to move irregularly. This chaotic and disordered movement will cause collision, extrusion, friction and shearing of the grinding medium, thereby crushing and finely grinding the material. In addition, the size, shape and proportion of the grinding media are different, and the grinding effects obtained are also different. Generally speaking, the larger the size of the grinding media, the coarser the material will be crushed. On the contrary, the smaller the grinding media, the finer the material is ground. The appropriate ratio of different specifications of grinding media, coupled with the appropriate adjustment of the speed, will result in better grinding effects.
1. The energy utilization rate is high and high power density can be obtained, so it saves energy.
2. The product particle size is easy to adjust, and the fineness can be ensured by adjusting the residence time of the material in the cylinder.
3. Small vibration and low noise.
4. Beautiful appearance, high-end atmosphere, excellent performance, simple maintenance, easy and labor-saving operation, and durable.
5. The mixing rod can be raised and lowered automatically, and the grinding barrel can be flipped freely.
6. It can well realize various process requirements and can carry out continuous or intermittent production as needed.
7. Since the ball mill barrel is equipped with a jacket, the grinding temperature can be well controlled.
8. Equipment with various special functions can be made as needed, such as: timing, speed adjustment, circulation, temperature adjustment, etc.
9. You can choose grinding barrels and stirring devices made of different materials (stainless steel, corundum ceramics, polyurethane, zirconia, etc.).
Customization:
Stirred Ball Mill
- Brand Name: TENCAN
- Model Number: JM-2
- Place of Origin: Hunan China
- Certification: ISO CE
- Minimum Order Quantity: 1 set
- Price: negotiable
- Packaging Details: Carton & Plywood case with Foam
- Delivery Time: 7days
- Payment Terms: T/T
- Supply Ability: 300 Set/Sets per Month
- Product Name: Stirred Ball Mill
- Output Size: 400-12450 Mesh
- Output: 0.1 - 0.7 Kg/h
- Feeding Size: 1 - 5 Mm
- Power: 0.37KW
TENCAN JM-2 Stirring Ball Mill Lab Vertical Stirred Ball Mill Machine Stir Ball Mill is perfect for grinding and mixing small batches of material. It is widely used in the laboratory of the industry of mining, building materials, chemical industry, metallurgy, coal, light industry, agriculture, and geological industries. It has a capacity of 0.1 - 0.7 Kg/h and a feeding size of 1 - 5mm. It is perfect for grinding and stirring materials and featuring a power of 0.37KW.
