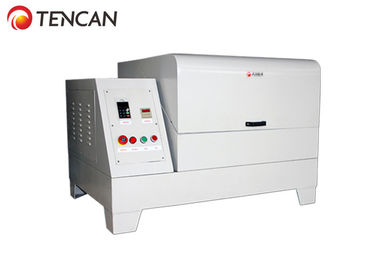

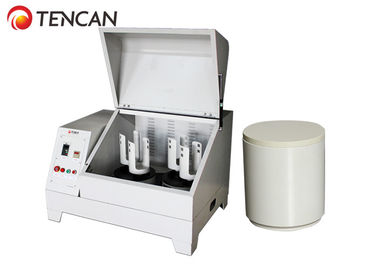

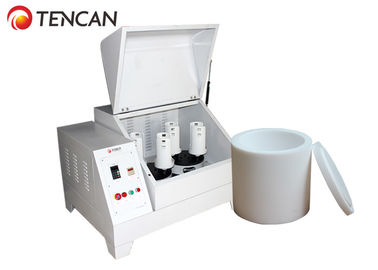

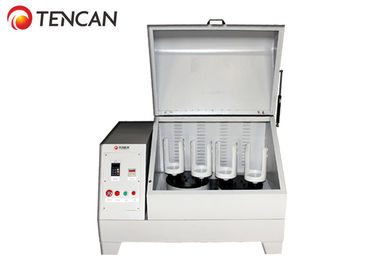

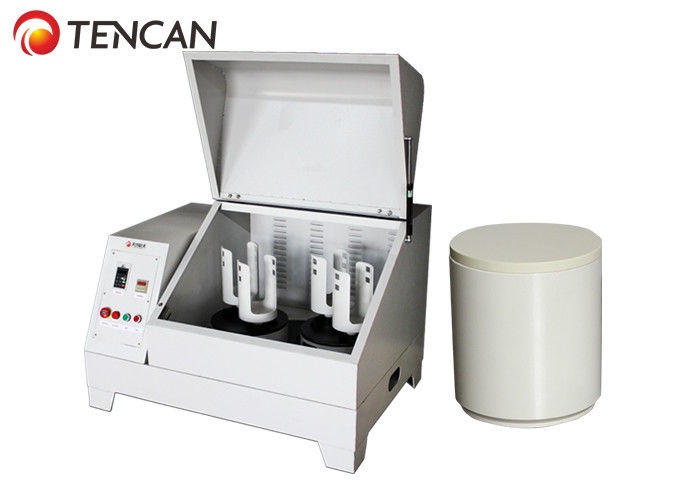

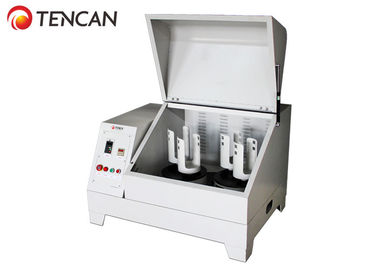

Laboratory 4L Dual Planetary Milling Machine 1120rpm For Nano Powder Grinding

Laboratory 4L Dual Planetary Milling Machine 1120rpm For Nano Powder Grinding

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: SXQM-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case+Foam or Carton
Delivery Time: 15-20 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Dual Planetary Ball Mill Model No.: SXQM-4
Total Volume: 4L Max Capacity: 1.32L
Rotate Speed: 140-1120 Rpm Voltage: 220V-50Hz Or 110V-60Hz
Power: 1.5KW Speed Control: Frequency Converter
Highlight:

4L Planetary Milling Machine

,

1120rpm Planetary Milling Machine

,

Nano Powder Grinding Laboratory Ball Mill

Product Description

China Tencan 4L Laboratory Dual Planetary Ball Mill High Speed Rotating For Nano Scale Powder Grinding



Overview



Laboratory Dual Planetary Ball Mill is a necessary equipment used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Laboratory Dual Planetary Ball Mill realizes movement of the small planetary disk driven by the large planetary disk, the rotation radius and the rotation speed of the mill jars are magnified compared to the normal planetary ball mill models. The centrifugal force of the grinding balls is doubled, the impact, shear and friction between the grinding balls increase significantly, the grinding effect and the grinding efficiency are enhanced greatly, and some materials can be ground into nano scale. Dual planetary ball mill is a typical kind of high efficiency and high energy ball mill.



Working Principle



Laboratory Dual Planetary Ball Mill has two planetary disks that make rotation movement installed on a base turntable which makes revolution movement. Another two smaller turntables are installed on each larger disk respectively; there are two mill jars on each smaller turntable. The machine has totally four mill jars installed on the smaller turntables. When the base turntable rotates, the tank roller makes planetary movements. The balls and samples inside the mill jars are ground and mixed under high speed movement.





Applications



Laboratory Dual Planetary Ball Mill is a necessary device for producing high-tech materials in laboratory, mixing, fine grinding and small batch production. The machine has advantages such as beautiful appearance, compact structure, convenient operation, high working efficiency and fine grind uniformity. It is a preferred equipment for scientific research, teaching, experiment and production. And is widely used in industries of electronics, magnetism, medicine, ceramics, geology, minerals, metallurgy, building materials, chemical industry, light industry, beauty, environmental protection and etc.







Features



1. The mill pot makes two planetary movement, It enjoys high efficiency and small particle size under the high frequency percussion, linear collision force, friction force.( First in China)
2. Four different samples can be got at one time. It is convenient for the technologist to do the research and develop the new material.
3. Feed Granularity of Materials: Soil material ≤10mm, other materials ≤3mm.
4. Wet or dry grinding method. Minimum Granularity of powder amounts to 0.06 μm.
5. Frequency controlled, you can set the speed as per experiment effect.
6. Large turn disc revolution: 50-400rpm.
Small turn disc revolution: 100-800rpm.
Large planetary axis rotation: 100-800rpm.
Mill pot rotation: 200-1600rpm.
7. The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, time-setting operation.
8. Motor power: 0.4L, 2L, 4L: 0.75KW, 220V, 50Hz; 16L, 20L: 5.5KW, 380V, 50Hz.
9. Our planetary ball mill is functional which has low bary center, stable performance, compact structure, easy operation, reliable safety, low noise, and low wastage.



Advantages



It is the ideal facility to acquire samples for research institutes , universities as well as enterprise laboratories (can acquire four samples in one experiment). If mated with vacuum ball milling tanks, it can grind samples in vacuum status. The product is extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.



Technical Features
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Minimum 0.1μm
Rotational Speed Ratio /1/2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel.agate,nylon,corundum,zirconia,etc



Technical Parameters



Main Parameters of Dual Laboratory Ball Mill
Model No. Power
(kw)
Voltage
(V)
Dimension
(mm)
Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
SXQM-0.4 1.5 220V-50Hz 1150*800*760 70-560 140-1120 1-9999 1-999
SXQM-1 1.5 220V-50Hz 1150*800*760 70-560 140-1120 1-9999 1-999
SXQM-2 1.5 220V-50Hz 1150*800*760 70-560 140-1120 1-9999 1-999
SXQM-4 1.5 220V-50Hz 1150*800*760 70-560 140-1120 1-9999 1-999
SXQM-6 1.5 220V-50Hz 1150*800*760 70-560 140-1120 1-9999 1-999
Feeding Size: Soil material≤10mm, other materials≤3mm
Output Granularity: Smallest 0.1 μm
Optional Models of Speed Control: Frequency converter and automatic timing control
Materials of Jar: Stainless steel, agate, nylon, corundum, zirconia, etc.





Accessories of Mill Jars & Balls



Matching Mill Jars Available:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.



Laboratory 4L Dual Planetary Milling Machine 1120rpm For Nano Powder Grinding 0



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar





Matching Mill Balls Available:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



Laboratory 4L Dual Planetary Milling Machine 1120rpm For Nano Powder Grinding 1



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable
