0.25KW Frequency Control Movable Lab Grinding Mill

0.25KW Frequency Control Movable Lab Grinding Mill

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: XQM-0.4A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 300 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Mini Lab Planetary Ball Mill Model No.: XQM-0.4A
Total Volume: 0.4L Max Capacity: 0.132L
Rotate Speed: 90-870 Rpm Speed Control: Frequency Control
Voltage: 220V-50Hz Or 110V-60Hz Power: 0.25KW
High Light:

Movable Lab Grinding Mill


0.25KW Lab Grinding Mill


Frequency Control Laboratory Grinding Mill

Product Description

CE ISO Vertical And Movable Lab Grinding Mill , Laboratory Grinding Mill




Planetary ball mills are smaller than common ball mills and mainly used in laboratories for grinding sample material down to very small sizes. A planetary ball mill consists of at least one grinding jar which is arranged eccentrically on a so-called sun wheel. The direction of movement of the sun wheel is opposite to that of the grinding jars (ratio: 1:-2 or 1:-1.5 ). The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called coriolis forces. The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies. The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill.



Working Principle

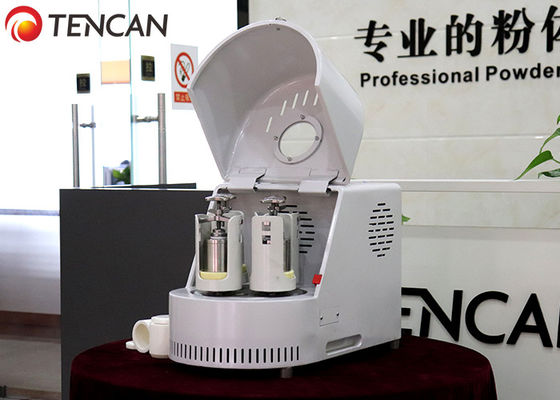

TENCAN Mini Laboratory ball mill has four working positions which can be installed with two or four mill jars on one turntable. When the turntable rotates, the jar axis makes planetary movements at high speed, the balls and materials inside the jars are impacted strongly in high speed movement, and materials are eventually ground into fine powder. Various kinds of different materials can be ground by means of dry or wet grinding method. The smallest granularity of output powder can be reached to 0.1μm or nano scale powder.



It is widely used in Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.

Our company have the laboratory with 1000 sets of application cases and maybe could provide you some suggestion.



Features of Tencan 0.4L 110 - 220v Mini Laboratory Ball Mill

1. Safety stirrup lock,easy to install and disassemble,easy to loosen,safe and reliable, simple and easy to use,delicate design and beautiful shape.

2. PLC frequency conversion control:the inverter has the protection of undervoltage and overcurrent, and has the memory after the power off, so it can protect the motor.

3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.

4. Ultra-low temperature treatment with liquid nitrogen cryogenic system.

5. Detection of temperature and pressure in ball mill

6. Patented oil seal mute technology and gear drive core technology,noise reduced by 50%,increase service life more than 2 times



Technical Parameters :

Main Parameters of 0.4L 110V or 220v Mini Laboratory Ball Mill
Model Power(KW) Voltage Dimension(mm) Revolution Speed
Total Timing
Alternating Run Time of Forward & Reversal Rotation
XQM-0.4A 0.25 220V-50Hz 530*300*340 45-435 90-870 1-9999 1-999



Accessories of 0.4L 110 - 220v Mini Planetary Ball Mill


Besides the planetary ball mill machine, we also provide all kinds of mill jars,like stainless steel mill jar, zirconia mill jar, alumina ceramic mill jar, nylon mill jar, PU mill jar, tungsten mill jar, hard metal mill jar and tempered nylon mill jars etc.


0.25KW Frequency Control Movable Lab Grinding Mill 0


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


0.25KW Frequency Control Movable Lab Grinding Mill 1
