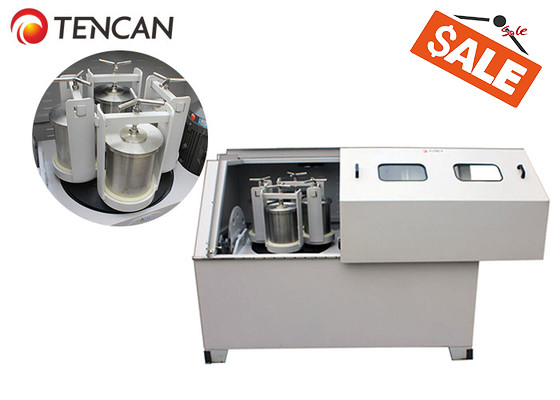

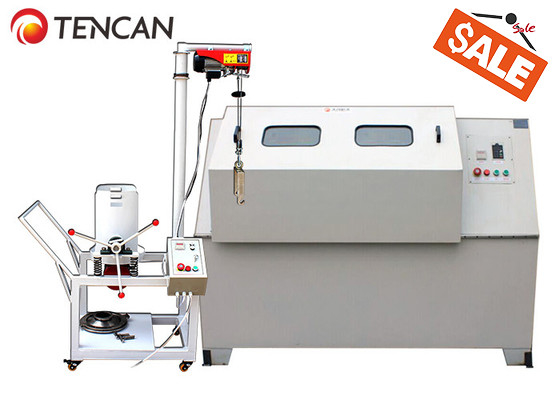

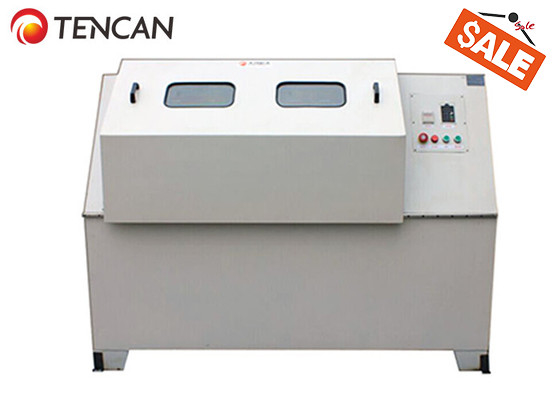

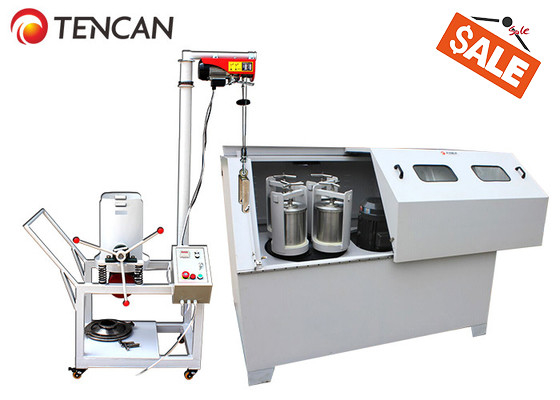

Lab Ball Mill Supplier Nano Powder Grinding Crusher Machine 40L Full-Directional Multiple Dimensional Rotations

Lab Ball Mill Supplier Nano Powder Grinding Crusher Machine 40L Full-Directional Multiple Dimensional Rotations

Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: QXQM-40

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton or Plywood Case
Delivery Time: 10-15 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Laboratory Dual Planetary Ball Mill Model No.: QXQM-40
Total Volume: 40L Max Capacity: 6.66L
Rotate Speed: 40-390 Rpm Voltage: 380V-50Hz
Power: 5.5KW Speed Control: Frequency Converter
Type: Ball Mill
Highlight:

lab ball mill

,

laboratory ball mill machine

,

40L Laboratory Ball Mill

Product Description

40L Full-directional Laboratory Ball Mill For Nano Powder Grinding With Multiple Dimensional Rotations



Overview



Full-directional Laboratory Ball Mill serves as an indispensable tool for milling high-tech materials, fine grinding, powder mixing, nano powder production, new product development, and small-scale manufacturing. The Tencan planetary ball mill boasts a compact design, high efficiency, minimal noise, and comprehensive functionality, making it an exceptional choice. It is ideally suited for R&D institutions, universities, and corporate laboratories seeking to obtain fine powder samples. With its four working stations, the Tencan planetary ball mill allows for the simultaneous processing of up to four samples. Additionally, when equipped with vacuum ball mill jars, this machine can be utilized to obtain powder samples in a vacuum environment.



Working Principle



Full-directional Laboratory Ball Mill typically features four grinding positions mounted on a single disc. As the turntable rotates, the milling jars rotate on their own axes, completing a full 360-degree cycle. Inside these jars, balls move rapidly, grinding and mixing samples. This equipment is capable of crushing and blending various materials of differing compositions and particle sizes using either dry or wet methods. The smallest particle size achievable for ground samples can reach 0.1 micrometer. Due to its versatility, the Ball Mill is extensively applied in fields such as Geology, Mining, Metallurgy, Electronics, Building Materials, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection.



Applications



Full-directional Laboratory Ball Mill finds extensive application across numerous industries, including geology, mining, metallurgy, electronics, building materials, ceramics, the chemical industry, light industry, medicine, and environmental protection. It is particularly well-suited for production areas such as electronic and structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese, catalysts, phosphors, long-lasting luminescent phosphors, rare earth polishing powders, and electronic glass. Additionally, it is used in the production of powders for fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCCs, thermistors (both PTC and NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrites, and Mn-Zn ferrites, among others.



Features


1.The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even
2. Gear transmission ensures to keep consistency and repeatability of experiment.
3. You may get four different powder samples at one time.
4. Variable frequency controlled and program controlled.
5. It solves the problems of materials sinking and sticking to the pot.

Advantages:

Our planetary ball mill is capable of grinding a diverse array of powders using various mill jars and balls, encompassing ore powder, fluorescent powder, glass powder, pigment powder, and more. Below are some powder samples provided for your consideration.



Technical Features



Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 48hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.





Technical Parameters





Parameters of Full-Directional Laboratory Ball mill
Type Power
(KW)
Voltage
(V)
Dimension(mm) Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
QXQM-0.4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-1 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-2 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-6 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-8 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
QXQM-10 1.5 220V-50Hz 1290*900*960 35-290 70-580 1-9999 1-999
QXQM-12 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
QXQM-16 3 380V-50Hz 1530*1070*1220 30-225 60-510 1-9999 1-999
QXQM-20 4 380V-50Hz 1700*1100*1200 25-215 50-430 1-9999 1-999
QXQM-40 5.5 380V-51Hz 1900*1450*1480 20-195 40-390 1-9999 1-999



Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.

Lab Ball Mill Supplier Nano Powder Grinding Crusher Machine 40L Full-Directional Multiple Dimensional Rotations 0



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



Lab Ball Mill Supplier Nano Powder Grinding Crusher Machine 40L Full-Directional Multiple Dimensional Rotations 1



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable





TENCAN Planetary ball mills are available in different versions.

Please refer to our website www.lab-mills.com for a complete overview of the different performance features.
