Product Details:

Place of Origin: Hunan, China
Brand Name: TENCAN
Certification: CE ISO
Model Number: QXQM-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton or Plywood Case
Delivery Time: 10-15 working days after getting full payment
Payment Terms: T/T, Western Union
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Product Name: Laboratory Dual Planetary Ball Mill Model No.: QXQM-10
Total Volume: 10L Max Capacity: 3.33L
Rotate Speed: 70-580 Rpm Voltage: 220V-50Hz Or 110V-60Hz
Power: 1.5KW Speed Control: Frequency Converter
Type: Ball Mill
High Light:

lab ball mill

,

lab scale ball mill

,

10L Powder Laboratory Ball Mill

Product Description

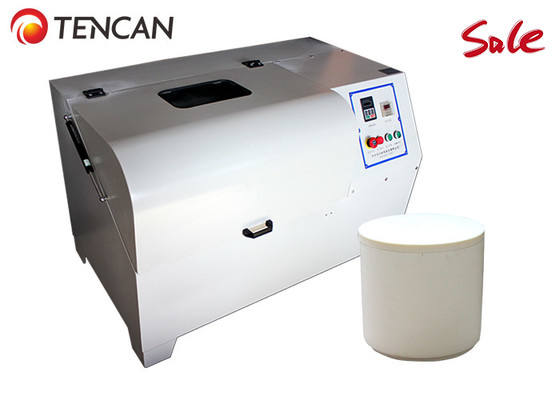

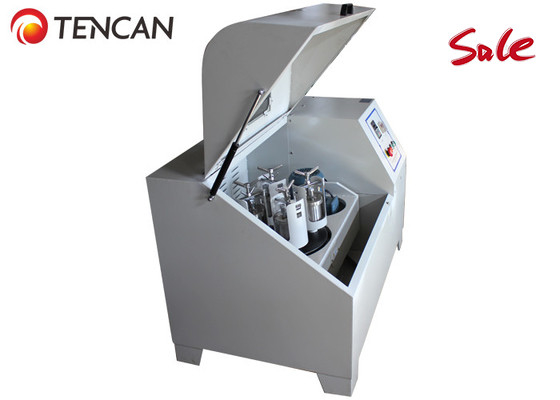

10L Full-directional laboratory ball mill Driven By Special Gear With Lower Noise For Powder Milling



Overview



Full-directional Laboratory Ball Mill is a fundamental device applied for high-tech materials grinding, fine milling, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill distinguishes itself through its advantages: a sleek and compact design, exceptional efficiency, low noise emissions, and a diverse set of functionalities.Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. The Tencan planetary ball mill is equipped with a four-station layout, enabling the simultaneous processing of a maximum of four samples. Equipped with a vacuum mill customized for grinding, the machine gains the capacity to collect powder samples in a vacuum environment.



Working Principle

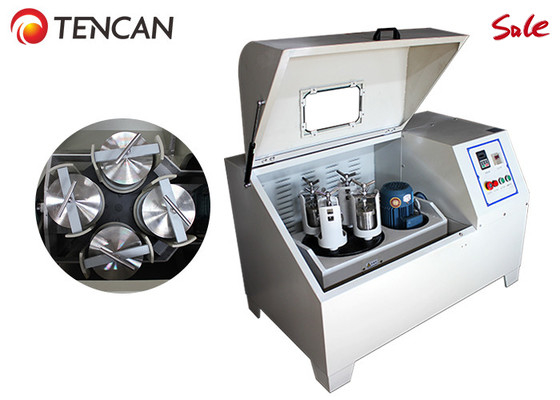

Full-directional Laboratory Ball Mill commonly includes four ball grinding stations positioned on a single disc. When the disc rotates, the mill pots spin around their own axes, making a complete 360-degree revolution. Moreover, the balls housed within the tanks grind and mix samples through high-speed motion. The resultant product is capable of crushing and blending a wide range of materials and particle sizes using either dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.



Applications



Full-directional Laboratory Ball Mill fis widely employed across a wide range of industries, spanning from geology and mining to metallurgy, electronics, construction materials, ceramics, the chemicals sector, light industry, pharmaceuticals, environmental preservation, and many more fields. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.





Features


1.The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even
2. Gear transmission ensures uniform and reproducible experimental results.
3. You may get four different powder samples at one time.
4. Variable frequency controlled and program controlled.
5. It solves the problems of materials sinking and sticking to the pot.

Advantages:
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.,



Technical Features



Drive Mode Gear drive and belt drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 48hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.





Technical Parameters





Parameters of Full-Directional Laboratory Ball mill
Type Power
(KW)
Voltage
(V)
Dimension(mm) Revolution Speed
(rpm)
Rotation Speed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
QXQM-0.4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-1 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-2 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-4 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-6 0.75 220V-50Hz 1100*750*825 35-335 70-670 1-9999 1-999
QXQM-8 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
QXQM-10 1.5 220V-50Hz 1290*900*960 35-290 70-580 1-9999 1-999
QXQM-12 1.5 220V-50Hz 1220*900*960 35-290 70-580 1-9999 1-999
QXQM-16 3 380V-50Hz 1530*1070*1220 30-225 60-510 1-9999 1-999
QXQM-20 4 380V-50Hz 1700*1100*1200 25-215 50-430 1-9999 1-999
QXQM-40 5.5 380V-51Hz 1900*1450*1480 20-195 40-390 1-9999 1-999

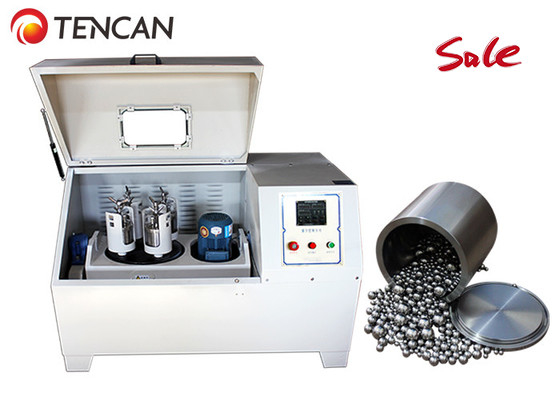

Accessories of Mill Jars & Balls



Available Mill Jars:



304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.

Laboratory Ball Mill Supplier Full-Directional Ball Milling Instrument Gear Drive Lower Noise For Powder Milling 10L 0



Recommendation For Matching Solutions About Mill Jars & Materials
Categories of Materials Recommended Mill Jars
Soil and other Materials which are not allowed with any impurity Agate mill jar
Metal & nonmetal materials which are not allowed with any impurity Zirconia mill jar
High hardness materials like diamond, tungsten carbide Tungsten carbide mill jar
Strong add & alkali materials or other materials at high temperature PTFE mill jar
Iron ore materials with lower impurity sensitivity 304 Stainless steel mill jar
Pigment or other materials with later process under high temperature Nylon mill jar
Aluminum materials like ceramic glaze Corundum mill jar
Electronic materials like lithium battery Polyurethane mill jar
Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
Vacuum mill jar



Available Mill Balls:



304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.



Laboratory Ball Mill Supplier Full-Directional Ball Milling Instrument Gear Drive Lower Noise For Powder Milling 10L 1



References About Grinding Medias & Materials
Materials of
Grinding Media
Hardness
(Mohs)
Features
Zirconia Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.
Stainless Steel Balls ≥6.0 Wear-resistant, general corrsion resistance, high temperature resistance.
Agate Balls ≥7.0 Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.
Alumina Balls ≥8.5 Wear-resistant, corrsion resistance and high temperature resistance.
Tungsten Carbide Balls ≥9.0 Super wear-resistance, without any impurity, corrosion & high temperature resistance.





Matching Solutions for Mill Jars & Balls
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill jar
Corundum Mill Jar
Stainless Steel Mill Jar
Zirconia Mill Jar
Nylon Mill Jar
PTFE Mill Jar
Polyurethane Mill Jar
Tungsten Carbide Mill Jar
√ means: most suitable ▲ means: suitable







TENCAN Planetary ball mills are available in different versions.

Please refer to our website www.lab-mills.com for a complete overview of the different performance features.
