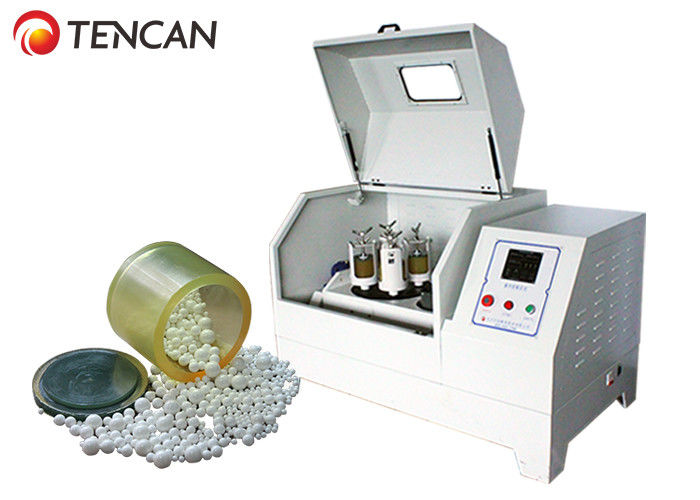

6L Full-Directional Laboratory Ball Mill For Nano Powder Making With 4*1.5L Mill Jars
|Place of Origin:||Hunan, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Carton or Plywood Case|
|Delivery Time:||10-15 working days after getting full payment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||150 sets per month|
|Product Name:||Laboratory Dual Planetary Ball Mill||Model No.:||QXQM-6|
|Total Volume:||6L||Max Capacity:||1.98L|
|Rotate Speed:||70-670 Rpm||Voltage:||220V-50Hz Or 110V-60Hz|
|Power:||0.75KW||Speed Control:||Frequency Converter|
lab ball mill,
lab scale ball mill,
Nano Powder Making Ball Mill
6L Full-directional laboratory ball mill For Nano powder Making With 4*1.5L Mill Jars
Full-directional Laboratory Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. Tencan planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.
Full-directional Laboratory Ball Mill often has four ball grinding positions installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Full-directional Laboratory Ball Mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.
1.The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even
2. Gear transmission ensures to keep consistency and repeatability of experiment.
3. You may get four different powder samples at one time.
4. Variable frequency controlled and program controlled.
5. It solves the problems of materials sinking and sticking to the pot.
A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.,
|Drive Mode||Gear drive and belt drive|
|Operation Mode||Two or four grinding tanks working together|
|Maximum Loading Capacity||2/3 of the capacity of milling tank|
|Feeding Size||Soil material≤10mm, other materials≤3mm|
|Output Granularity||Smallest 0.1 μm|
|Rotational Speed Ratio||1/2|
|Max. Continuous Operating Time||48hours|
|Optional Modes of Speed Control||Frequency conveter and automatic timing control|
|Materials of Jar||Stainless steel, agate, nylon, corundum, zirconia, etc.|
|Parameters of Full-Directional Laboratory Ball mill|
Time of Forward &
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
|Recommendation For Matching Solutions About Mill Jars & Materials|
|Categories of Materials||Recommended Mill Jars|
|Soil and other Materials which are not allowed with any impurity||Agate mill jar|
|Metal & nonmetal materials which are not allowed with any impurity||Zirconia mill jar|
|High hardness materials like diamond, tungsten carbide||Tungsten carbide mill jar|
|Strong add & alkali materials or other materials at high temperature||PTFE mill jar|
|Iron ore materials with lower impurity sensitivity||304 Stainless steel mill jar|
|Pigment or other materials with later process under high temperature||Nylon mill jar|
|Aluminum materials like ceramic glaze||Corundum mill jar|
|Electronic materials like lithium battery||Polyurethane mill jar|
|Easily oxidized materials or some special materials which need to
be protected under special atmosphere.
|Vacuum mill jar|
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
|References About Grinding Medias & Materials|
|Zirconia Balls||≥9.0||Super wear-resistance, without any impurity, corrosion & high temperature resistance.|
|Stainless Steel Balls||≥6.0||Wear-resistant, general corrsion resistance, high temperature resistance.|
|Agate Balls||≥7.0||Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance.|
|Alumina Balls||≥8.5||Wear-resistant, corrsion resistance and high temperature resistance.|
|Tungsten Carbide Balls||≥9.0||Super wear-resistance, without any impurity, corrosion & high temperature resistance.|
|Matching Solutions for Mill Jars & Balls|
|Items||Agate Balls||Alumina Balls||Stainless Steel Balls||Zirconia Balls||Tungsten Carbide Balls|
|Agate Mill jar||√|
|Corundum Mill Jar||▲||√||▲|
|Stainless Steel Mill Jar||√|
|Zirconia Mill Jar||▲||√|
|Nylon Mill Jar||▲||√|
|PTFE Mill Jar||√||▲|
|Polyurethane Mill Jar||√||▲|
|Tungsten Carbide Mill Jar||▲||√|
|√ means: most suitable ▲ means: suitable|
TENCAN Planetary ball mills are available in different versions.
Please refer to our website www.lab-mills.com for a complete overview of the different performance features.
