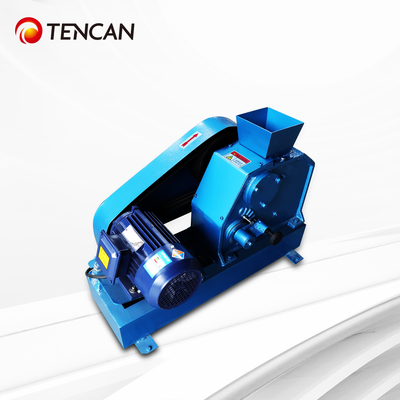

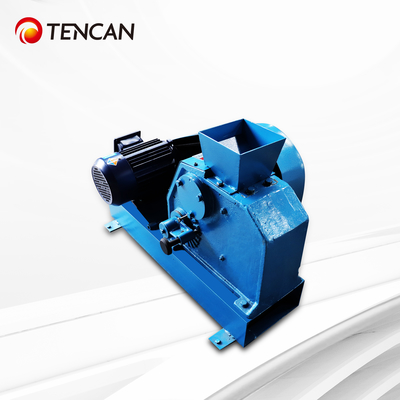

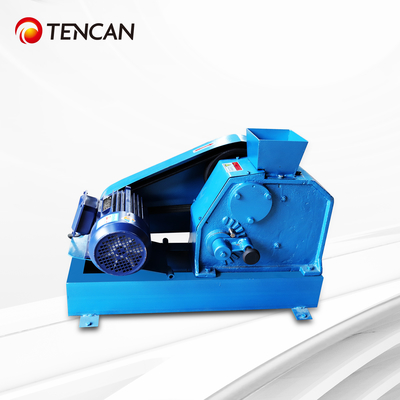

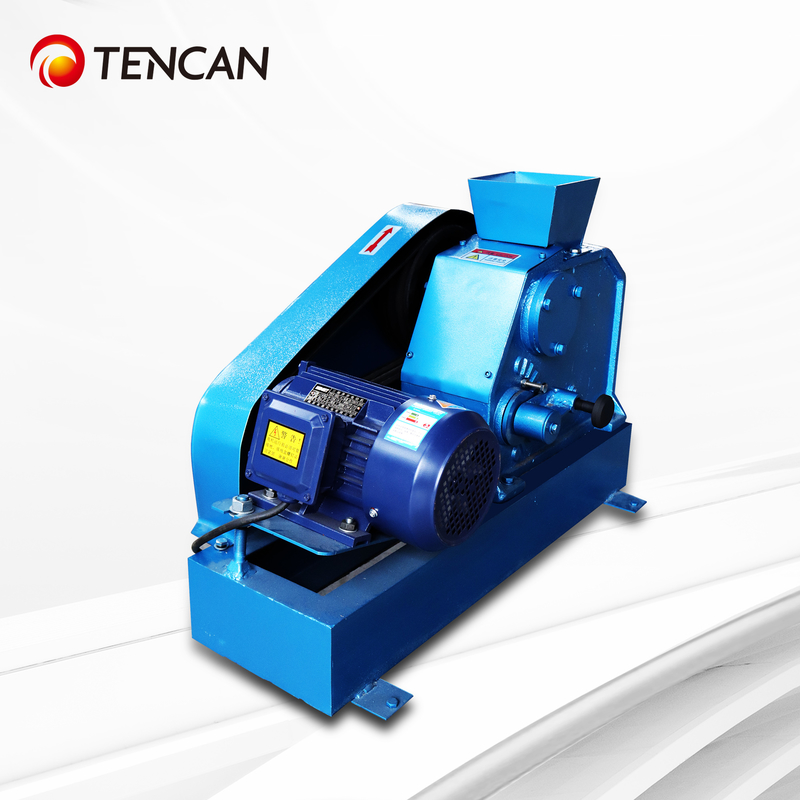

TENCAN PE60×100 Laboratory Jaw Crusher – Primary Crushing for Limestone, Ore, Coal & Minerals

TENCAN PE60×100 Laboratory Jaw Crusher – Primary Crushing for Limestone, Ore, Coal & Minerals

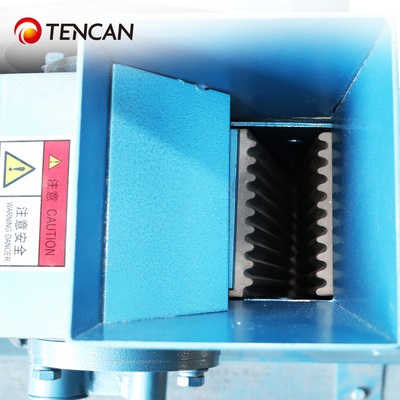

The Machine Structure of Lab Jaw Crusher:

This series of roll crusher is composed of machine frame, drive motor, rollers, adjustable spring, gear transmission system, feeding hopper, and discharge port. The roll crusher features: smooth operation, low noise, adjustable particle size, compact structure, and easy maintenance.

Overview of Lab Jaw Crusher
The laboratory roll crusher is primarily used for intermediate crushing of various ores and bulk materials with a compressive strength of less than 250Mpa. The roll crusher series covers a wide range of specifications, with feed sizes ranging from 10mm to 100mm, making it an ideal choice for secondary crushing in laboratories. It is widely applied in coal, metallurgy, mining, chemical engineering, building materials, and other industries for crushing materials such as coal, limestone, cement clinker, slag, and brittle minerals.

Working Principle of Lab Jaw Crusher


Applications of Lab Jaw Crusher

The roll crusher is mainly used for reducing medium-hard and brittle materials into finer particles for further processing in grinding mills. It is suitable for crushing coal, coke, limestone, gypsum, and other brittle materials in laboratories and small-scale production.

Features of Lab Jaw Crusher

1. **Adjustable Particle Size** – The gap between rollers can be easily adjusted to control output size.
2. **Low Dust & Noise** – Enclosed design minimizes dust and noise during operation.
3. **High Efficiency** – Uniform crushing with minimal fines generation.
4. **Overload Protection** – Spring-loaded mechanism prevents damage from hard foreign objects.
5. **Durable Rollers** – Made of high manganese steel or tungsten carbide for extended service life.
6. **Easy Maintenance** – Simple structure allows quick replacement of wear parts.

Technical Parameters of Lab Jaw Crusher
