Tencan Laboratory High Precision Planetary Ball Mill for Nano-Scale Processing
Product Details:
| Place of Origin: | Hunan China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-0.4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton & Foam |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Set/Sets per Month metal powder making machine |
|
Detail Information |
|||
| Output Granularity: | 400-12500mesh | Power: | 0.25KW |
|---|---|---|---|
| Rotational Speed: | 90-870rpm | Max Feeding Capacity: | Less Than 2/3 Of The Capacity Of The Grinding Jar |
| Function: | Particle Size Fineness | Feeding Size Of Materials: | Less Than10mm |
| Key Selling Points: | Energy Saving | Product Name: | Planetary Ball Mill |
| Highlight: | High Precision Planetary Ball Mill,Laboratory Planetary Ball Mill,Nano-Scale Planetary Ball Mill |
||
Product Description
Product Description:
The planetary ball mill is a high-end ball mill designed and developed by our company. It has a heavy-duty structure that enables it to handle even the most challenging grinding projects. The machine is equipped with four grinding tanks, each with a capacity of 0.1L, capable of grinding up to 2/3 of the material capacity of the grinding tanks. It can also produce particles with a minimum particle size of 0.1 μm. The maximum feeding amount is 10mm, and the total weight of the device is 25kg. It is suitable for a variety of materials and provides a fast and effective grinding method. Planetary ball mills are highly suitable for grinding, mixing, and dispersing materials, making them an ideal choice for laboratories and research institutions.
Features:

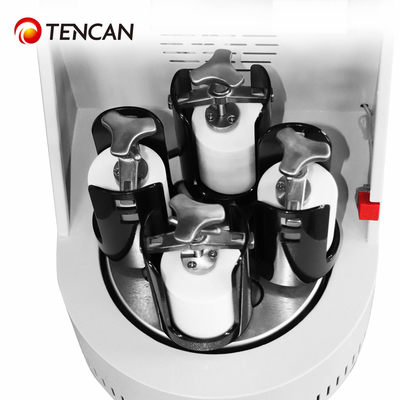

- Multi directional grinding -4 grinding stations, capable of processing simultaneously
- Adjustable speed -90-870 rpm (programmable for optimal efficiency)
- Ultra fine production -400-12500 mesh (adjustable particle size)
- Key Selling Points: Energy Saving
- Wide material compatibility - metals, ceramics, polymers, composite materials
- Customizable cans - available in stainless steel, zirconia, agate, or PTFE options
- Safety and stability - low noise (<60 dB), overload protection, and secure clamping
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | Planetary Ball Mill |
| Max Feeding Capacity | Less than 2/3 of the capacity of the grinding jar |
| Function | Particle size fineness |
| Keyword | Lab Ball Mill |
| Weight | 25kg |
| Rotational Speed | 90-870rpm |
| Output Granularity | 400-12500mesh |
| Type | High Energy Ball Mill |
| Output(kg/h) | 0.01-0.132kg/h |
| Output Granule | Minimum 0.1μm |
| Power | 0.25KW |
| Ball Mill Grinder | Ball Mill Grinding Machine, Ball Mill Grinder Machine |
Applications:
Battery materials - Lithium ion cathode/anode powders (NMC, LFP, graphite)
Drugs - drug micronization, API homogenization
Ceramics and Metallurgy - Zirconia, Alumina, Metal Alloy Powder
Nanotechnology - Graphene, Quantum Dots, Nanocomposite Materials
Customization:
- Brand Name: TENCAN
- Place of Origin: Hunan China
- Certification: ISO CE
- Minimum Order Quantity: 1 set
- Price: negotiable
- Packaging Details: Carton & Foam
- Delivery Time: 3-7 days
- Payment Terms: T/T, L/C
- Supply Ability: 200 Set/Sets per Month metal powder making machine
- Product Name: Planetary Ball Mill
- Feeding Size of materials: Less Than10mm
- Power: 0.25KW
- Warranty: 1 Year
- Function: Particle Size Fineness
Support and Services:
Free technical consultation
On-site installation & training
1-year warranty & lifetime maintenance support
Packing and Shipping:
Packaging and Shipping for Planetary Ball Mill:
- The Planetary Ball Mill is placed in a plywood box.
- The machine is covered with a bubble wrap for extra protection.
- The machine labeled with a warning sticker.
- The package is then shipped to the customer via a reliable courier service.
Why choose our planetary ball mill?
✔ High efficiency -5 times faster than traditional ball mills
✔ Precision control - adjustable speed, time, and grinding medium
✔ Durability - sturdy structure and durable components
✔ Global Certification - ISO, CE, and Custom Compliance Options
FAQ:
A1: The brand name of the Planetary Ball Mill is TENCAN.
A2: The place of origin of the Planetary Ball Mill is Hunan, China.
A3: The Planetary Ball Mill is ISO and CE certified.
A4: The minimum order quantity for the Planetary Ball Mill is 1 set.
A5: The price of the Planetary Ball Mill is negotiable. The packaging is carton and foam. The delivery time is 3-7 days.
