TENCAN 10L Planetary Ball Mill Optimized for SiO2 Nanoparticle Preparation Speed Control Frequency Control Voltage 220V or 110V
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Plywood Case |
| Delivery Time: | 3-7 working days after receive full payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram, |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | Lab Square Planetary Ball Mill | Model No.: | XQM-10 |
|---|---|---|---|
| Voltage: | 220Vor 110V | Power: | 1.5kW |
| Rotate Speed: | 70-580 RPM | Speed Control: | Frequency Control |
| Total Volume: | 10L | Max Capacity: | 3.3L |
| Highlight: | Frequency Control Planetary Ball Mill,10L Planetary Ball Mill,SiO2 Nanoparticle Planetary Ball Mill |
||
Product Description

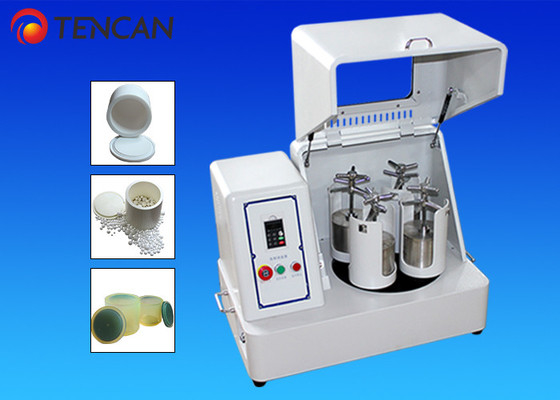

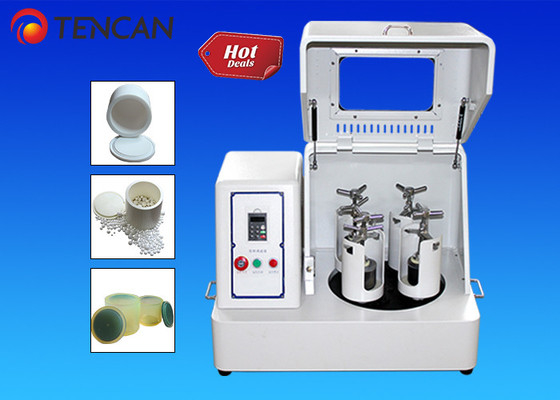

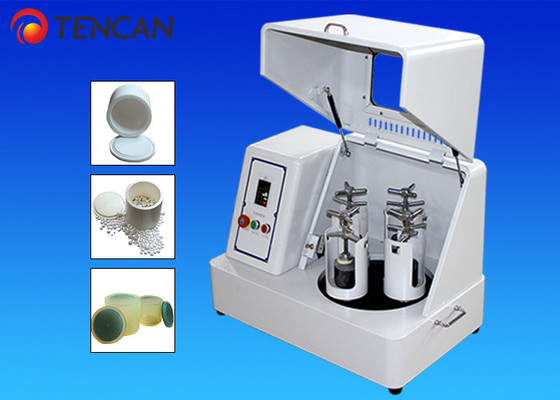

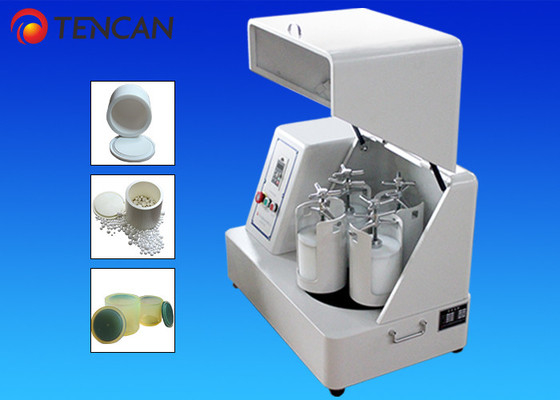

TENCAN 10L Planetary Ball Mill - Optimized for SiO2 Nanoparticle Preparation
Product Overview
The TENCAN 10L Square-Type Planetary Ball Mill represents cutting-edge grinding technology specifically engineered for processing challenging materials such as Silicon Oxide (SiO₂). This precision-crafted system combines sophisticated mechanics with innovative design to achieve nano-scale particle reduction, establishing it as a crucial instrument for advanced materials research and development laboratories.
Key Features
Versatile four-position configuration enables parallel processing of multiple samples
Premium agate grinding components ensure zero contamination during material processing
Ultra-fine grinding capability with particle size reduction down to 0.1μm (100nm)
Enhanced stability through robust square-type structural design
Flexible processing with both dry and wet grinding methodologies
Vacuum-compatible grinding environment for oxygen-sensitive materials
Technical Specifications
Model: XQM-10 Vertical Planetary Ball Mill
Processing Capacity: 2500g per processing cycle (4 samples simultaneously)
Maximum Input Material Size: 1-5mm
Minimum Output Particle Size: <50μm (achievable within 2 hours)
Grinding Media: Agate jars and grinding balls
Operational Control: Programmable interface with variable speed adjustment
Application Performance
Our planetary ball mill delivers exceptional results when processing Silicon Oxide (SiO₂):
Effectively reduces particle dimensions from initial 1-5mm to below 50μm
Completes the entire grinding cycle in under 2 hours
Preserves material integrity and purity through agate grinding components
Produces highly consistent results suitable for advanced particle analysis
Ideal For
Advanced materials science investigations
Semiconductor material preparation and development
High-performance ceramic powder processing
Specialized nanomaterial production
Precision quality control laboratories
This robust system combines high-efficiency grinding with precise control, making it the perfect solution for laboratories and research facilities working with Silicon Oxide and similar hard materials.
⇒
Before Grinding After Grinding
Features
1.Gear transmission system ensures stable revolving speed, guaranteeing experimental consistency and repeatability
2.Advanced planetary movement mechanism delivers high-speed operation, maximum energy transfer, superior efficiency, and ultra-fine particle reduction
3.Versatile design allows simultaneous production of four different powder samples with varying sizes and materials
4.Frequency converter control system enables precise rotating speed selection based on experimental requirements, with built-in under-voltage and over-current protection
5.Comprehensive timing functions including power-off scheduling, self-timing forward and reverse rotation capabilities, with flexible operation modes (one-direction, alternating, continuous, or timed) to maximize grinding efficiency
6.Superior technical attributes include low center of gravity, stable performance, compact structure, intuitive operation, reliable safety features, minimal noise generation, and reduced material loss
7.Integrated safety switch system prevents potential accidents by automatically stopping operation if the safety cover is opened during machine operation
This advanced grinding system combines precision engineering with versatile functionality, making it the optimal solution for laboratories requiring high-performance processing of Silicon Oxide and similar challenging materials.
Working Principle
The vertical square planetary grinder achieves efficient grinding of materials through planetary motion mechanism:
Planetary motion: The main turntable drives four ball milling tanks to revolve around the central axis, while each tank rotates in the opposite direction around its own axis, forming a composite motion trajectory.
Grinding mechanism: The grinding balls inside the tank collide, shear, and friction during high-speed motion, crushing and mixing materials, suitable for dry/wet and vacuum environments.
Particle size control: By adjusting the speed, grinding time, and grinding ball ratio, the material can be crushed to the nanometer level (0.1 microns).
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | < 10mm for soft material; < 3mm for hard material |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 hours |
| Materials of Jar | stainless steel,agate,nylon,corundum,zirconia, PU, PTFE etc |
Technical Parameters
| Main Parameters of 8L 110 / 220v Planetary Ball Mill - Square design | |||||
| Model | Power(kW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-12 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Squre type Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-1 | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2 | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4 | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-6 | 6.0L | 500ml, 1000ml, 1500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L |
| XQM-8 | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10 | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12 | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16 | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
