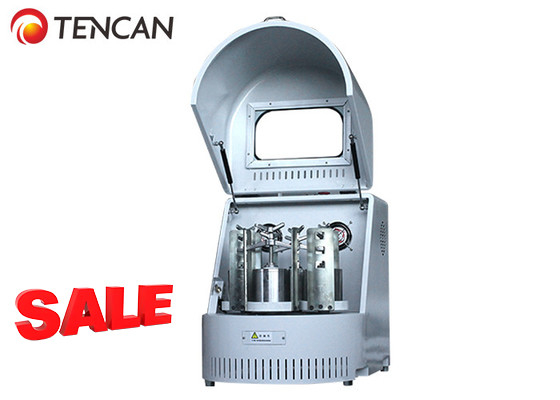

0.25kW Speed Control Frequency Control TENCAN Planetary Ball Mill for Food and Chemicals Powder Grinding 0.4L Capacity
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-0.4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam |
| Delivery Time: | 3-7 working days after getting full payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Product Name: | 0.4L Planetary Ball Mill | Model No.: | XQM-0.4A |
|---|---|---|---|
| Voltage: | 220-50Hz/110V-60Hz | Power: | 0.25kW |
| Rotate Speed: | 90-870 Rpm | Speed Control: | Frequency Control |
| Dimensions: | 500*300*340mm | Net Weight: | 29kg |
| Highlight: | Food Planetary Ball Mill,0.25kW Planetary Ball Mill,0.4L Planetary Ball Mill |
||
Product Description
TENCAN 0.4L Planetary Ball Mill for Food, Chemicals Powder Granding
Overview
The TENCAN 0.4L Vertical Planetary Ball Mill is an essential tool for high-tech material mixing, fine grinding, sample preparation, and small-scale production. Designed for R&D labs, universities, and industrial laboratories, this compact and efficient mill delivers high-performance grinding with low noise and versatile functionality. It can process four samples simultaneously and supports vacuum grinding when equipped with vacuum ball mill tanks, ensuring optimal results for sensitive materials.
Working Principle

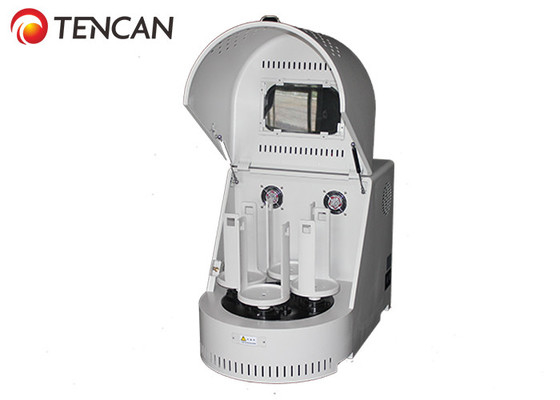

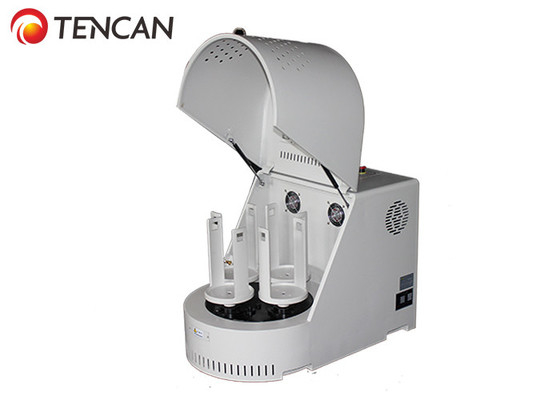

The mill features four grinding tanks mounted on a rotating turntable. As the turntable spins, the tanks undergo planetary motion, causing the grinding balls and samples to collide at high speed. This intense mechanical impact efficiently reduces samples to fine powders, with particle sizes as small as 0.1μm. Both dry and wet grinding methods are supported, accommodating a wide range of materials.
Applications
-
Material Processed: Cinnabar (Pigment)
-
Feed Size: 100μm
-
Output Granularity: <20μm (meeting customer requirements)
-
Grinding Time: 2 hours
-
Sample Quantity: 2 kgs per batch
-
Equipment Used: XQM-6 model with Nylon pots and zirconia balls
Key Features
-
Precision & Consistency: Gear-driven mechanism ensures stable rotation speed for repeatable results.
-
High Efficiency: Planetary motion delivers high-energy impacts, enabling ultrafine grinding.
-
Multi-Sample Processing: Grind four different materials or sizes in a single run.
-
Adjustable Speed: Frequency converter allows precise speed control with overload protection.
-
Programmable Operation: Offers timed grinding, auto-reverse, and multiple modes (continuous, intermittent) for optimized processing.
-
User-Friendly Design: Low center of gravity, compact structure, quiet operation, and minimal wear.
-
Safety Protection: Safety switch halts operation if the cover is opened during use.
Ideal for pigment processing and advanced material research, the TENCAN 0.4L Planetary Ball Mill combines reliability, precision, and versatility for superior sample preparation.
Technical Parameters
| Technical Features of Mini Vertical Planetary Ball Mill | |
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding jars working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling jar |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest granule reaches 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 72hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
| Main Parameters of Mini Vertical Planetary Mill Ball | |||||||
| Model | Power (KW) |
Voltage | Dimension(mm)) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
| XQM-0.4A | 0.25 | 220V-50Hz | 530*300*340 | 45-435 | 90-870 | 1-9999 | 1-999 |

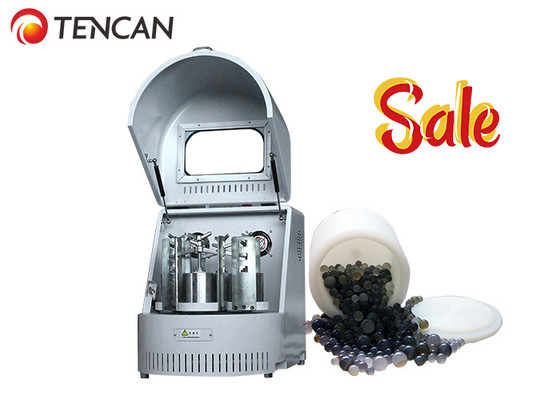

Accessories for Planetary Ball Mill
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, PTFE and etc.
Available Mill Balls: Agate balls, tungsten carbide balls, alumina balls, zirconia balls
