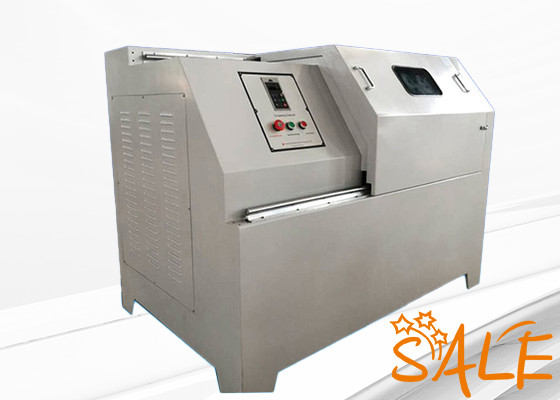

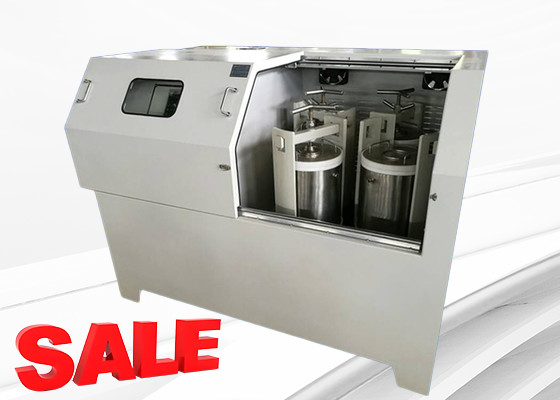

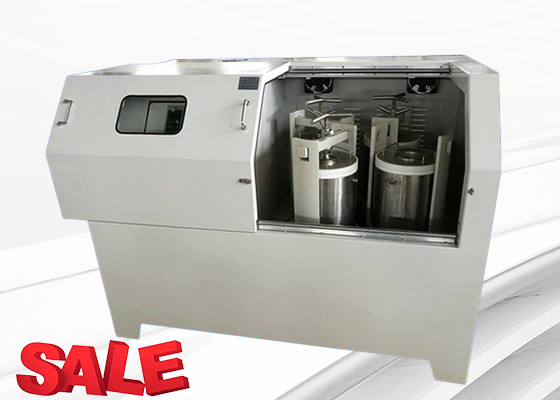

60L Vertical Planetary Ball Mill Frequency Control Precision Grinding System for Advanced Materials
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-60L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 25-35 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Production Type Planetary Ball Mill | Model No.: | XQM-60 |
|---|---|---|---|
| Total Volume: | 60L | Max Capacity: | 19.8L |
| Rotate Speed: | 40-240 Rpm | Speed Control: | Frequency Control |
| Voltage: | 380V-50Hz | Power: | 7.5KW |
| Highlight: | Frequency Control Planetary Ball Mill,60L Planetary Ball Mill,Precision Grinding Planetary Ball Mill |
||
Product Description
60L Vertical Planetary Ball Mill - Precision Grinding System for Advanced Materials
Industrial-Grade Processing Solution
This 60L vertical planetary ball mill represents a significant advancement in material processing technology, offering dual wet and dry grinding capabilities for research and industrial applications. The system's innovative design combines high-capacity processing with precision particle size reduction, making it ideal for laboratories and production facilities requiring consistent nano-scale results.
Advanced Grinding Technology
Featuring a unique vertical planetary motion system, the mill generates multi-directional impact forces through four independently controlled grinding chambers. This configuration ensures uniform energy distribution, achieving particle refinement down to 0.1μm with exceptional repeatability. The vertical orientation optimizes space efficiency while maintaining stable operation at high rotational speeds.
Key Performance Features
-
Dual Processing Modes: Supports both aqueous and solvent-free grinding applications
-
High-Capacity Design: 60L total volume enables production-scale throughput
-
Precision Control: Digital frequency regulation with ±1% speed accuracy
-
Versatile Applications: Processes materials ranging from soft polymers to hard ceramics
-
Advanced Safety: Integrated protection systems with automatic shutdown
-
Special Configurations: Optional vacuum and inert gas processing capabilities
Industrial Applications
The system excels in critical material development areas including:
-
Energy storage materials (battery components, solid electrolytes)
-
Advanced ceramics (structural and functional applications)
-
Electronic materials (ferrites, varistors, dielectric compositions)
-
Pharmaceutical compounds (API micronization and formulation)
-
Nanocomposites (carbon-based and hybrid materials)
-
Operational Advantages
-

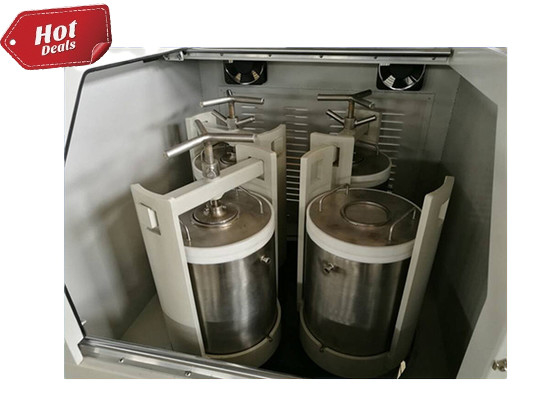

Simultaneous processing of four independent samples
-
Programmable operation modes for optimized grinding cycles
-
Reduced energy consumption through efficient vertical design
-
Low-noise operation (<70dB) suitable for laboratory environments
-
Easy maintenance and cleaning procedures
This industrial-grade planetary ball mill provides researchers and manufacturers with a reliable solution for high-volume material processing, combining laboratory precision with production-scale capacity. Its versatile design accommodates a wide range of materials and applications, from basic research to pilot-scale production.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of Vertical Industrial Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-20 | 4 | 380V-50Hz | 1200*750*920 | 25-215 | 50-430 |
| XQM-40 | 5.5 | 380V-50Hz | 1400*850*1160 | 20-195 | 40-390 |
| XQM-60 | 7.5 | 380V-50Hz | 1600*990*1250 | 27-174 | 40-260 |
| XQM-100 | 11 | 380V-50Hz | 1750*1140*1330 | 27-160 | 40-240 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
