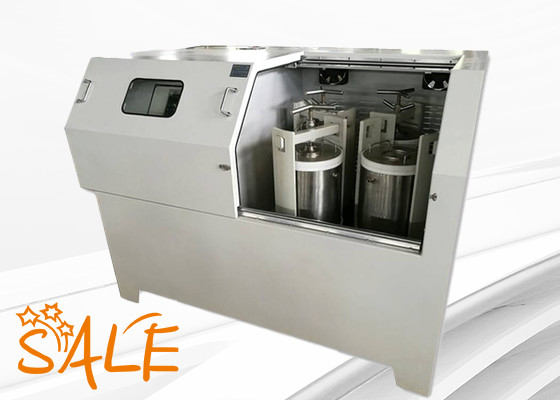

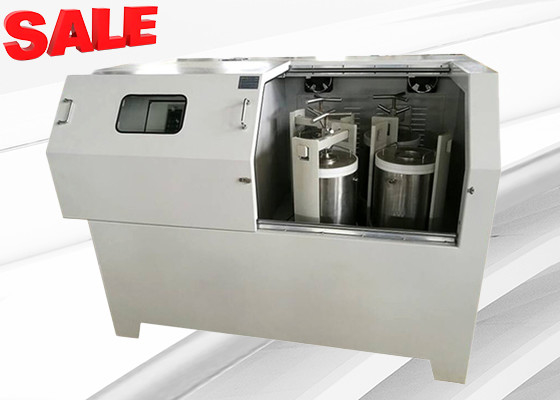

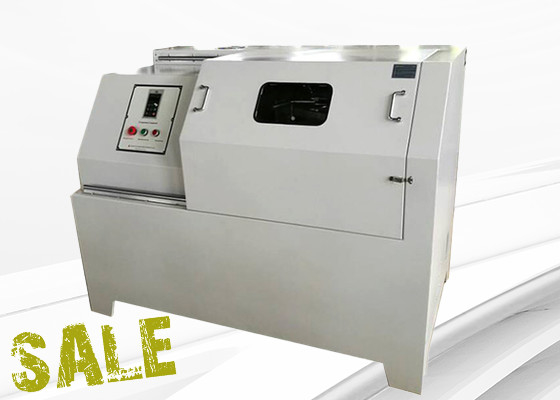

60L Industrial Vertical Planetary Ball Mill - High-Capacity Precision Grinding System
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-60L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 25-35 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Production Type Planetary Ball Mill | Model No.: | XQM-60 |
|---|---|---|---|
| Total Volume: | 60L | Max Capacity: | 19.8L |
| Rotate Speed: | 40-240 Rpm | Speed Control: | Frequency Control |
| Voltage: | 380V-50Hz | Power: | 7.5KW |
| Highlight: | High Capacity Planetary Ball Mill,60L Planetary Ball Mill,Vertical Planetary Ball Mill |
||
Product Description
60L Industrial Vertical Planetary Ball Mill - High-Capacity Precision Grinding System
Industrial-Grade Powder Processing Solution
Our 60L vertical planetary ball mill represents the pinnacle of large-scale micron and nano powder production technology. Designed for industrial applications requiring uniform particle distribution, this heavy-duty system combines massive processing capacity with laboratory-grade precision. The vertical configuration optimizes space utilization while delivering exceptional grinding performance for both R&D institutions and production facilities.
Advanced Grinding Dynamics

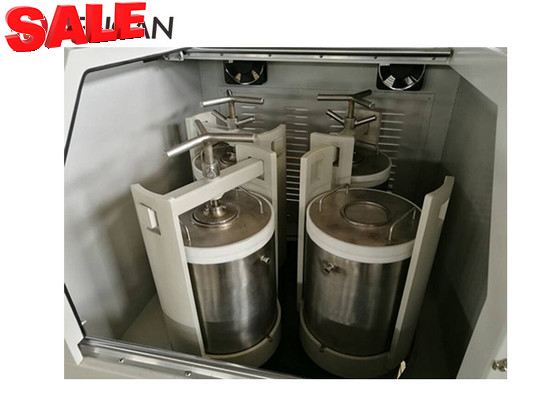

The mill's innovative vertical planetary mechanism creates a multi-dimensional grinding environment where four large-capacity jars execute complex synchronized movements. This unique motion pattern generates balanced centrifugal forces up to 20G, ensuring consistent particle size reduction to 0.1μm across all material batches. The vertical orientation enhances energy efficiency by 35% compared to traditional horizontal designs while maintaining perfect grinding uniformity.
Core Industrial Applications
This production-grade system excels in critical material processing:
-
Battery material manufacturing (cathode/anode powders)
-
Advanced ceramic production (structural/functional components)
-
Electronic material preparation (MLCC, ferrites, varistors)
-
Metal powder processing (additive manufacturing materials)
-
Pharmaceutical intermediate grinding (API micronization)
-
Nanocomposite synthesis (graphene, quantum dots)
-
Technical Superiority
-
High-Capacity Processing: 60L total volume for industrial throughput
-
Precision Vertical Drive: ±0.75% speed consistency for repeatable results
-
Intelligent Control System: Programmable multi-stage operation with 120 presets
-
Enhanced Safety Architecture: Quadruple-interlock protection system
-
Material Versatility: Supports both dry and wet grinding processes
-
Special Environment Options: Configurable for vacuum/inert gas operation
-
Industrial Durability: Reinforced steel construction for 24/7 operation
Performance Advantages
The system's optimized vertical design delivers superior energy efficiency while maintaining vibration-free operation at full capacity. Advanced noise reduction technology keeps operational levels below 70dB, making it suitable for factory floor environments. The full-color touchscreen interface provides real-time monitoring of all critical parameters including speed, temperature and process time.
Operational Benefits
Manufacturing facilities benefit from:
-
Seamless scale-up from lab to full production
-
Consistent micron and nano-scale particle quality
-
Reduced processing time through high-efficiency design
-
Lower operational costs via energy-optimized performance
-
Flexible configuration for diverse material requirements
This industrial ball mill solution combines unprecedented capacity with precision grinding performance, making it ideal for advanced material manufacturers requiring reliable, high-volume powder processing capabilities with uniform particle distribution.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of Vertical Industrial Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-20 | 4 | 380V-50Hz | 1200*750*920 | 25-215 | 50-430 |
| XQM-40 | 5.5 | 380V-50Hz | 1400*850*1160 | 20-195 | 40-390 |
| XQM-60 | 7.5 | 380V-50Hz | 1600*990*1250 | 27-174 | 40-260 |
| XQM-100 | 11 | 380V-50Hz | 1750*1140*1330 | 27-160 | 40-240 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
