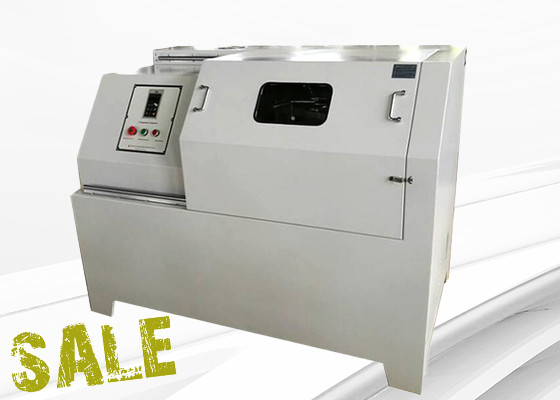

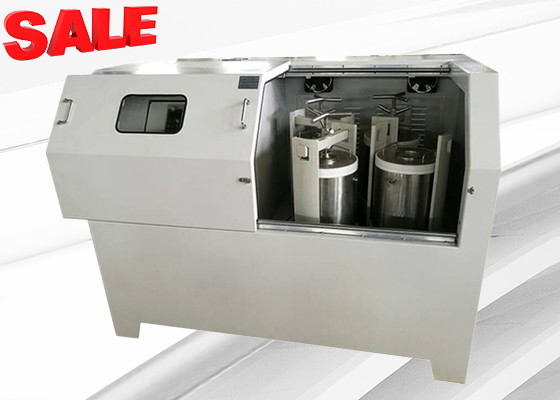

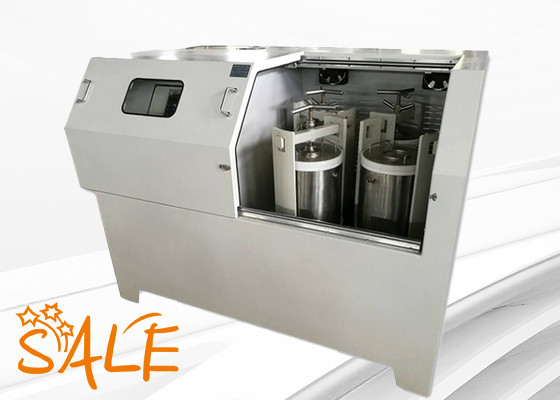

380V 5.5KW XQM-40L Industrial Vertical Planetary Ball Mill - High-Power Nano Grinding System
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | XQM-40L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case+Foam |
| Delivery Time: | 25-35 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Production Type Planetary Ball Mill | Model No.: | XQM-40 |
|---|---|---|---|
| Total Volume: | 40L | Max Capacity: | 13.2L |
| Rotate Speed: | 40-240 Rpm | Speed Control: | Frequency Control |
| Voltage: | 380V-50Hz | Power: | 5.5KW |
| Highlight: | 5.5KW Planetary Ball Mill,Industrial Vertical Planetary Ball Mill,High Power Planetary Ball Mill |
||
Product Description
380V 5.5KW XQM-40L Industrial Vertical Planetary Ball Mill - High-Power Nano Grinding System
Industrial-Grade Processing Powerhouse
The XQM-40L vertical planetary ball mill represents the cutting edge in industrial-scale nano powder production, combining robust 5.5KW 380V motor power with precision grinding technology. This heavy-duty system is engineered for continuous operation in demanding production environments while maintaining laboratory-grade accuracy in particle size reduction.
Advanced Vertical Grinding Dynamics
Featuring an optimized vertical planetary configuration, this mill generates powerful multi-directional grinding forces through its unique jar trajectory. The vertical orientation enhances energy transfer efficiency while minimizing floor space requirements. Four strategically positioned grinding chambers work in perfect synchronization to deliver uniform particle sizes down to 0.1μm, with exceptional batch-to-batch consistency.
Key Industrial Applications
This production-grade system excels in critical material processing:
-
Battery material synthesis (cathode powders, solid electrolytes)
-
Advanced ceramic production (structural/functional components)
-
Electronic material preparation (ferrites, varistors, MLCC)
-
Metal alloy development (additive manufacturing powders)
-
Pharmaceutical intermediate processing (API micronization)
-
Nanocomposite fabrication (graphene hybrids, quantum dots)
-
Technical Specifications
-
High-Torque Motor System: 5.5KW 380V industrial powerplant
-
Precision Planetary Drive: ±0.8% speed consistency
-
Intelligent Process Control: Programmable multi-stage operation
-
Enhanced Safety Systems: Mechanical/electrical protection
-
Large Capacity Processing: 40L total volume capacity
-
Material Versatility: Dry/wet grinding capability
-
Special Atmosphere Options: Vacuum/inert gas compatible
Performance Advantages
The system's vertical configuration delivers 25% greater energy efficiency than comparable horizontal models. Its balanced rotational dynamics ensure vibration-free operation at production volumes, with noise levels maintained below 72dB. The heavy-duty construction supports 24/7 operation while maintaining precise particle size control.
Operational Benefits
Manufacturing facilities benefit from:
-
Seamless scale-up from lab to production
-
Consistent nano-scale particle quality
-
Reduced processing time through high-efficiency design
-
Lower operational costs via energy-optimized performance
-
Flexible configuration for diverse material requirements
-
This industrial ball mill solution combines production-scale capacity with precision grinding performance, making it ideal for advanced material manufacturers requiring reliable, high-volume nano powder processing capabilities.
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |

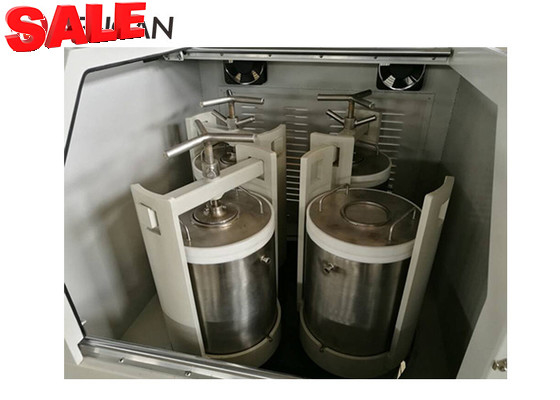

| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of Vertical Industrial Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-20 | 4 | 380V-50Hz | 1200*750*920 | 25-215 | 50-430 |
| XQM-40 | 5.5 | 380V-50Hz | 1400*850*1160 | 20-195 | 40-390 |
| XQM-60 | 7.5 | 380V-50Hz | 1600*990*1250 | 27-174 | 40-260 |
| XQM-100 | 11 | 380V-50Hz | 1750*1140*1330 | 27-160 | 40-240 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
