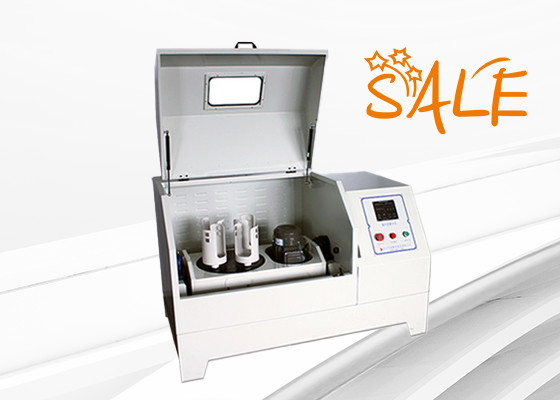

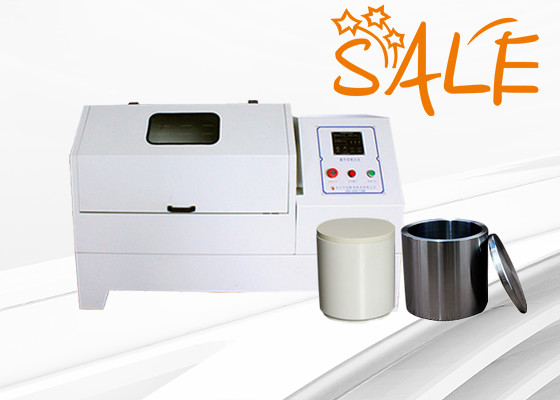

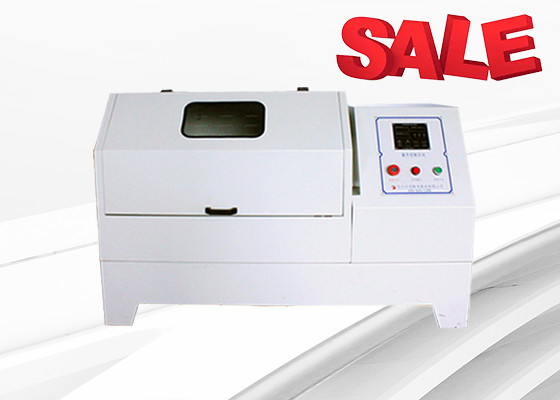

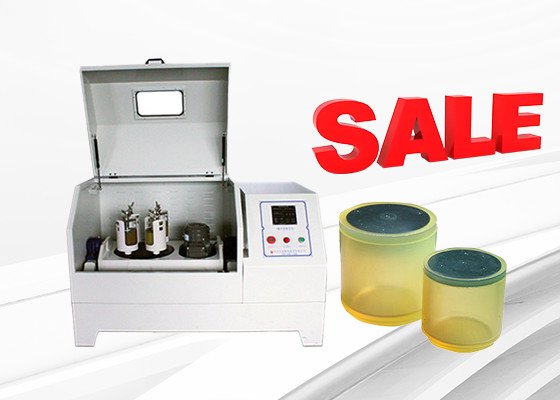

360 Degree Flip 6L All-Round Planetary Ball Mill with Frequency Control and 4*1500ml Grinding Tanks Speed
Product Details:
| Place of Origin: | Hunan, CHina |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QXQM-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case or Carton |
| Delivery Time: | 10 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Full-directional Planetary Ball Mill | Model No.: | QXQM-6 |
|---|---|---|---|
| Total Volume: | 6L | Max Capacity: | 2L |
| Rotate Speed: | 70-670 RPM | Speed Control: | Frequency Control |
| Voltage: | 220V-50Hz Or 110V-60Hz | Power: | 0.75kW |
| Highlight: | 6L Planetary Ball Mill,4*1500ml Planetary Ball Mill,360 Degree Planetary Ball Mill |
||
Product Description
6L Omnidirectional Planetary Ball Mill - Advanced Multi-Axis Grinding System
Next-Generation Grinding Technology
Our 6L full-directional planetary ball mill represents a breakthrough in precision powder processing, featuring revolutionary 360° multi-axis rotation technology. This high-capacity benchtop system delivers unparalleled grinding uniformity for advanced material research and small-scale production applications. With four 1500ml processing chambers, the mill enables simultaneous preparation of multiple samples while maintaining laboratory-grade precision.
Innovative Motion System
The mill's patented omnidirectional mechanism creates a dynamic 3D grinding environment where each jar simultaneously rotates on multiple axes. This complex planetary movement generates perfectly distributed impact forces, achieving consistent particle sizes down to 100 nanometers. The continuous 360° rotation ensures complete material coverage without dead zones, while preventing sample accumulation for maximum grinding efficiency.
Specialized Material Processing
This advanced system excels in demanding applications:
-
Energy storage materials (battery cathodes, solid electrolytes)
-
Advanced ceramics (structural, functional, bioceramics)
-
Electronic components (MLCC, varistors, ferrites)
-
Nanocomposites (graphene hybrids, quantum dots)
-
Pharmaceutical compounds (API micronization)
-
Optical materials (phosphors, luminescent powders)
-
Technical Excellence
-
True 3D Grinding Motion: Eliminates all processing dead angles
-
Precision Control System: Digital frequency regulation with programmable cycles
-
Enhanced Material Flow: Prevents sample adhesion and uneven distribution
-
High-Capacity Processing: Four 1500ml chambers for efficient batch production
-
Advanced Safety Features: Automatic shutdown protection system
-
Universal Media Compatibility: Supports various grinding ball materials
-
Special Environment Options: Configurable for vacuum or inert gas operation
Performance Advantages
The system's optimized mechanical design delivers superior energy efficiency with 30% greater impact force than conventional mills. Its balanced rotation mechanism operates at just 68dB, while the reinforced frame ensures vibration-free performance. The intuitive interface allows precise programming of grinding parameters for specialized material requirements.
Industry-Specific Benefits
Research institutions benefit from the system's ability to produce ultra-fine powders with perfect homogeneity. Industrial users gain production-ready results with scalable processing parameters. The mill's unique omnidirectional technology makes it indispensable for applications requiring absolute consistency in particle size distribution and morphology.
Technical Features
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 48 hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
| Parameters of Full-Directional Planetary Ball mill | |||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
