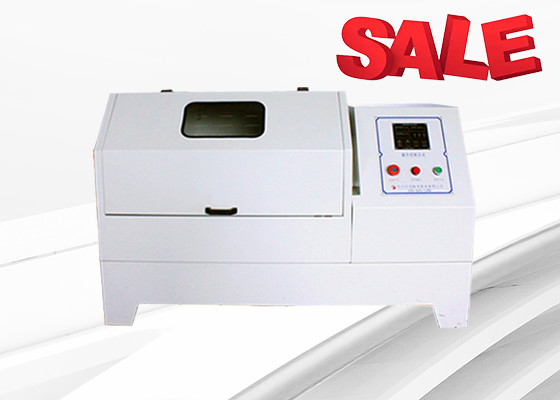

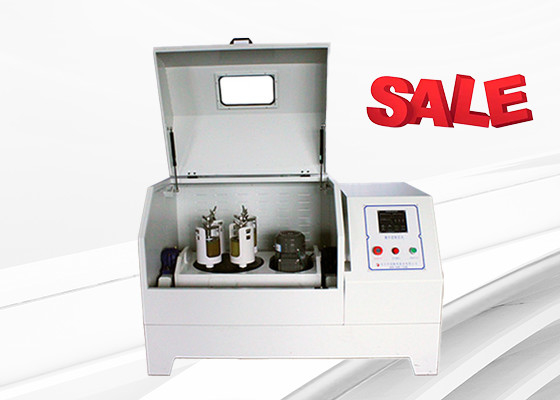

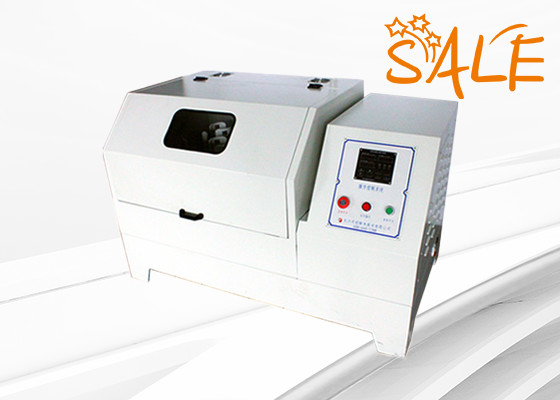

4L Full Directional Planetary Ball Mill 360 Degrees Turnover with 4x 1000ml mill jars
Product Details:
| Place of Origin: | Hunan, CHina |
| Brand Name: | TENCAN |
| Certification: | CE ISO |
| Model Number: | QXQM-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case or Carton |
| Delivery Time: | 10 working days after getting full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Full-directional Planetary Ball Mill | Model No.: | QXQM-4 |
|---|---|---|---|
| Total Volume: | 4L | Max Capacity: | 1.32L |
| Rotate Speed: | 70-670 RPM | Speed Control: | Frequency Control |
| Voltage: | 220V-50Hz Or 110V-60Hz | Power: | 0.75kW |
| Highlight: | 360 Degrees Turnover Planetary Ball Mill,4L Planetary Ball Mill,4x 1000ml Planetary Ball Mill |
||
Product Description
4L Omnidirectional Planetary Ball Mill - Revolutionary 360° Grinding Technology
Innovative Design Concept
Our 4L full-directional planetary ball mill introduces groundbreaking 360° omnidirectional grinding technology, setting a new standard for precision powder processing. This advanced system eliminates traditional grinding limitations by incorporating complete spatial rotation, ensuring absolutely uniform particle size distribution without dead angles. Ideal for cutting-edge research institutions and quality-focused production facilities, this mill delivers unprecedented consistency in nanomaterial preparation.
Breakthrough Motion Mechanism
The system's patented 360° planetary movement creates a dynamic, three-dimensional grinding environment where four 1000ml jars simultaneously rotate on multiple axes. This omnidirectional action generates perfectly balanced impact forces, achieving particle refinement down to 0.1μm with exceptional homogeneity. The continuous multidirectional motion prevents material accumulation and ensures complete grinding media utilization throughout the entire chamber volume.
Cutting-Edge Applications
This revolutionary mill excels in specialized material processing:
-
Advanced electronic components (MLCC, varistors, ferrites)
-
Energy materials (battery cathodes, fuel cell components)
-
Functional ceramics (piezoelectric, dielectric substrates)
-
Optical materials (phosphors, luminescent powders)
-
Nanocomposites (graphene hybrids, smart materials)
-
Biomedical coatings (drug carriers, bioceramics)
-
Technical Superiority
-
True 360° Processing: Eliminates all grinding dead zones for perfect uniformity
-
Intelligent Control System: Programmable multi-axis motion with digital feedback
-
Advanced Material Handling: Prevents sample adhesion and uneven settling
-
Precision Gear System: ±0.5% rotational accuracy for repeatable results
-
Multi-Sample Efficiency: Process four distinct materials simultaneously
-
Universal Compatibility: Supports all grinding media types and sizes
-
Specialized Configurations: Optional cryogenic and vacuum operation modes
Performance Advantages
The mill's optimized mechanical design delivers 40% higher energy efficiency compared to conventional planetary systems. Its balanced rotation mechanism operates at just 65dB, while the reinforced structure ensures vibration-free performance even at maximum speeds. The intuitive interface allows precise programming of complex motion patterns for specialized applications.
Industry-Specific Benefits
Research laboratories benefit from the system's ability to produce perfectly homogeneous nanomaterials with batch-to-batch consistency. Industrial users gain production-ready results with scalable parameters. The mill's unique omnidirectional technology makes it indispensable for applications requiring absolute particle uniformity and maximum material yield.
Technical Features
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 48 hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
| Parameters of Full-Directional Planetary Ball mill | |||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 |

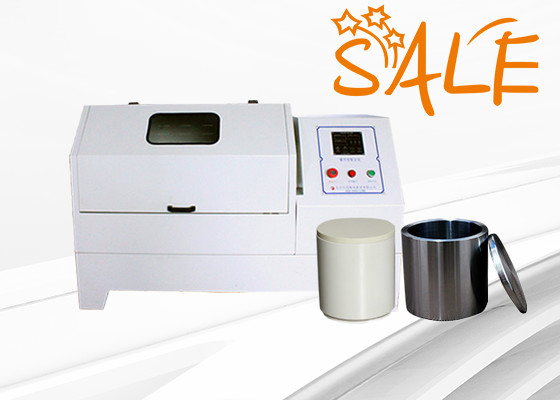

Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
