Sieve Shaker Lab Equipment Vibrating Screeners Single Motor 0.12KW Rotary Direct Discharge 520mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TENCAN |
| Model Number: | SY-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | One set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood case with foam |
| Delivery Time: | within 15 working daus after receiving full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | Direct Discharge Vibrating Screen | Motor: | Single Motor (0.12KW) Or Double Motor (2*0.12KW) |
|---|---|---|---|
| Screen Diameter: | 520mm | Active Area: | 0.2124 |
| Dimensions: | 740*600*500mm | Model No.: | SY-600 |
| Highlight: | Sieve Shaker Lab Equipment,Single Motor Vibrating Screeners,0.12KW Vibrating Screeners |
||
Product Description

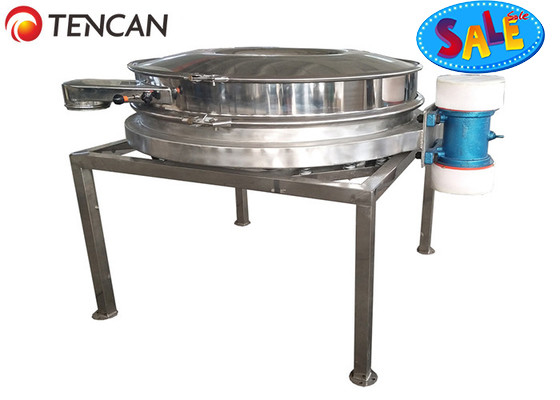

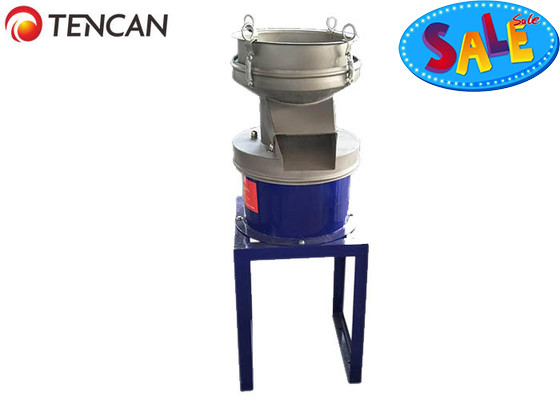

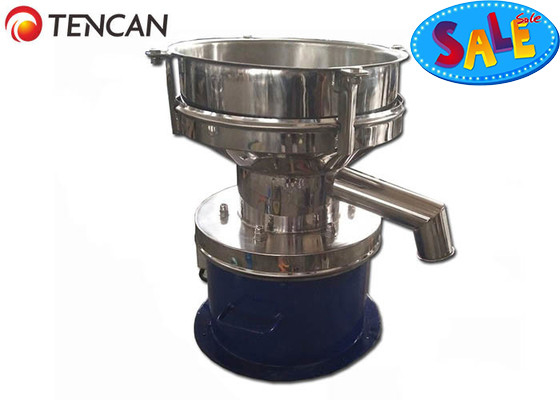

China Tencan Direct Discharge Single Motor 0.12KW Vibrating Screen Machine,Rotary Vibrating Screen
The direct discharge vibrating screen offers a choice between single and double motor structures as its vibrating power source, primarily used for rigorous screening of particulate and powdered materials. It features multiple adjustment options for the material's travel path, significantly enhancing its versatility. The direct discharge design significantly boosts processing capacity. Given its high capacity and productivity, this screen is frequently utilized in industries such as flour, starch, detergent, metal powder, additives, chemicals, and non-mineral products for demanding and precise particle and powder screening. Additionally, it can be seamlessly integrated into production lines ranging from 600mm to 1800mm. Its popularity among end-users stems from its large screening capacity and ease of integration into production lines.
Working Principle
Sginle Motor Direct Discharge Vibrating Screen
Double Motors Direct Discharge Vibrating Screen
Technical Parameters
| Model | Power(kw) | Diameter(mm) | Active Area(centiare) | Size(mm) |
| SY-600 | 0.12 | 520 | 0.2124 | 740*600*500 |
| SY-800 | 0.18 | 720 | 0.4072 | 1010*800*600 |
| SY-1000 | 0.18 | 890 | 0.6221 | 1200*970*640 |
| SY-1200 | 0.25 | 1090 | 0.9331 | 1430*1170*790 |
| SY-1500 | 0.55 | 1390 | 1.5175 | 1780*1470*760 |
| Model No. | SY-600 | SY-800 | SY-1000 | SY-1200 | SY-1500 |
| Single Motor Power | 0.12KW | 0.18KW | 0.25KW | 0.55KW | 0.55KW |
| Double Motor Power | 0.12KW*2 | 0.18KW*2 | 0.18KW*2 | 0.25KW*2 | 0.55*2 |
| Screen Diameter | 520mm | 720mm | 890mm | 1090mm | 1390 |
| Active Area | 0.2124 | 0.4072 | 0.6221 | 0.9331 | 1.5175 |
| Dimensions | 740*600*500mm | 1010*800*600mm | 1200*970*640mm | 1430*1170*790mm | 1780*1470*760mm |
