Customizable Planetary Ball Mill with Agate Jar and Balls for Various Grinding Needs
Product Details:
| Place of Origin: | Hunan, China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywppd Case & Foam |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western union，L/C |
| Supply Ability: | 200 Sets per Month |
|
Detail Information |
|||
| Materials Of Jar: | Agate Jars | Output Size: | Minimum 0.1μm |
|---|---|---|---|
| Warranty: | 1 Year | Voltage: | 220V 50Hz |
| Key Word: | Lab Planetary Ball Mill For Experiment | Weight: | 90kg |
| Power: | 0.75KW | Feeding Size: | 0.1-10mm |
| Highlight: | 220V Planetary Ball Mill,50Hz Planetary Ball Mill,Agate Jar Planetary Ball Mill |
||
Product Description

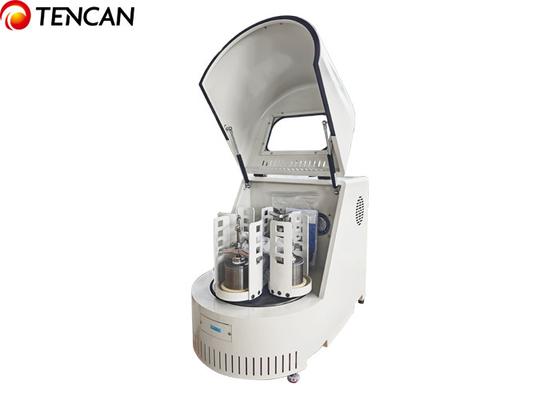

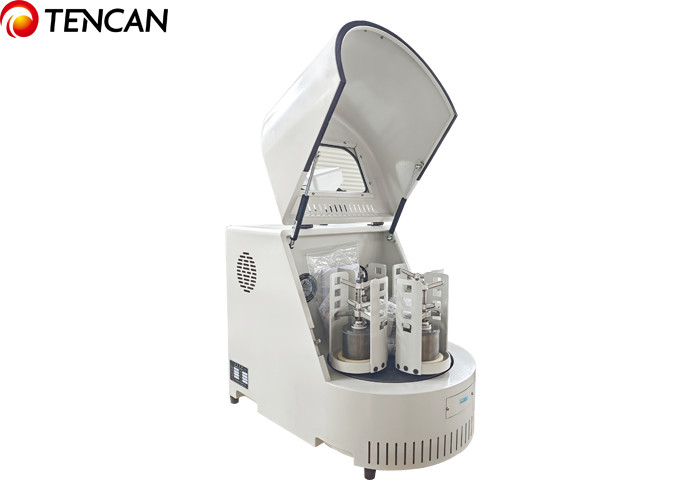

Customizable Planetary Ball Mill with Agate Jar and Balls for Various Grinding Needs
Product Description:
Engineered with a robust 0.75KW motor, this Planetary Ball Mill achieves rotational speeds up to 670 rpm for rapid grinding and homogenization of materials to target consistencies and particle dimensions. The unit operates with either two or four grinding jars functioning synchronously, guaranteeing uniform processing and optimal efficiency.
Capable of processing feed sizes from 0.1-10mm, this milling system accommodates diverse materials and initial particle sizes. It reliably produces precise outcomes, achieving fineness levels as minute as 0.1μm.
Designed for user-friendly operation, the mill incorporates multiple safety mechanisms to ensure operator protection. Its space-efficient design and manageable weight (90kg) facilitate convenient relocation and compact storage, making it exceptionally suitable for laboratory, research, and educational environments.
This Planetary Ball Mill serves as an optimal solution for various material processing applications including grinding, blending, and mechanical alloying. Secure your unit today to enhance the capabilities of your laboratory operations.
Features:
Product Designation: Planetary Ball Mill
Operational Configuration: Dual or Quad Jar Synchronous Processing
Primary Application: Experimental Laboratory Grinding
Power Requirements: 220V 50Hz
Feed Particle Range: 0.1-10mm
Unit Mass: 90kg
High-Energy Ball Milling System
Precision Grinding Mill
Advanced Ball Mill Grinder
Technical Parameters:
| Product Name: | Sand Grinding Planetary Ball Mill |
| Feeding Size: | 0.1-10mm |
| Rotate Speed: | 0-670rpm |
| Materials of Jar: | Agate |
| Output Size: | Minimum 0.1μm |
| Power: | 0.75KW |
| Voltage: | 220V 50Hz |
| Operate Mode: | Two Or Four Grinding Jars Working Together |
| Warranty: | 1 Year |
| Weight: | 90kg |
Applications:
This versatile grinding system is suitable for processing diverse sample types including soft, hard, and brittle materials such as minerals, geological specimens, metallurgical slags, ceramic compositions, and soil samples. The mill finds extensive application across multiple disciplines including geological research, mining engineering, metallurgical processing, electronic materials development, construction materials, ceramic engineering, chemical processing, light industry, pharmaceutical research, and environmental science.
The system supports both wet and dry grinding methodologies, adapting to specific sample requirements. It efficiently homogenizes powders and suspensions within seconds, and is particularly effective for biological cell disruption and nucleic acid (DNA/RNA) extraction procedures.
The XQM-2 model offers a maximum processing capacity of 0.66L with configurable dual or quadruple jar operation. Integrated safety interlocks prevent operation when the protective cover is open, while the advanced cooling system maintains optimal grinding temperatures. The system carries ISO CE certification and is shipped in protective plywood cases with custom foam inserts.
Packing and Shipping:
Product Packaging:
Each mill is securely packaged in industrial-grade packaging with cushioning foam inserts and protective wrapping to ensure transit integrity. Packaging includes clear handling instructions and safety information for proper handling.
Shipping:
Units are dispatched within 1-2 business days via reputable logistics partners. Shipping costs are calculated based on destination and package weight. Customers receive tracking information upon shipment confirmation.
FAQ:
Q: What is the brand designation?
A: The equipment carries the TENCAN brand.
Q: What is the specific model identification?
A: The model designation is XQM-2.
Q: What is the manufacturing origin?
A: The equipment is manufactured in Hunan, China.
Q: What quality certifications does the product hold?
A: The product is ISO CE certified.
Q: What payment methods are accepted?
A: We accept T/T, Western Union, and L/C payments.
Q: What is the minimum purchase quantity?
A: The minimum order quantity is one unit.
Q: What is the pricing structure?
A: Pricing is subject to negotiation based on order specifications.
Q: What protective packaging is used?
A: Units are shipped in plywood cases with custom foam insulation.
Q: What is the production lead time?
A: Standard delivery period is 15-20 days.
Q: What is the production capacity?
A: Monthly manufacturing capacity reaches 200 units.
