Glovebox Lab Planetary Milling Ball Mill With Minimum 0.1μM Output Size
Product Details:
| Place of Origin: | Changsha，Hunan， China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | XQM-0.2S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywppd Case & Foam |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western union |
| Supply Ability: | 500 Sets per Month |
|
Detail Information |
|||
| Power: | 0.09KW | Key Word: | Labortory Used Planetary Ball Mill |
|---|---|---|---|
| Feeding Size: | Less Than 10mm | Festure: | High Speed And High Efficiency |
| Accessories: | Zirconia Jars & Zirconia Balls | Working Model: | 2 Or 4 Pots One Time |
| Max Production Capacity: | 0.066L | Weight: | 48kg |
| High Light: | Lab Planetary Milling Ball Mill,Glovebox Planetary Ball Mill,Minimum 0.1uM Ball Mill |
||
Product Description

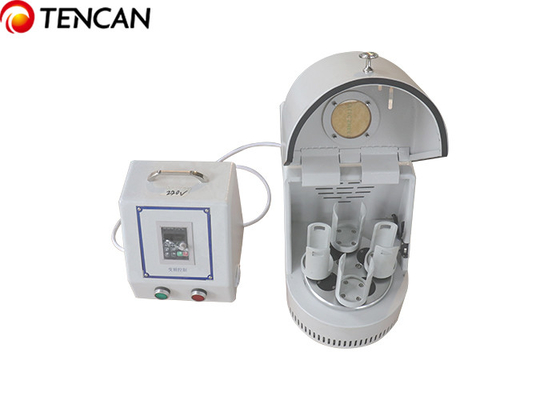

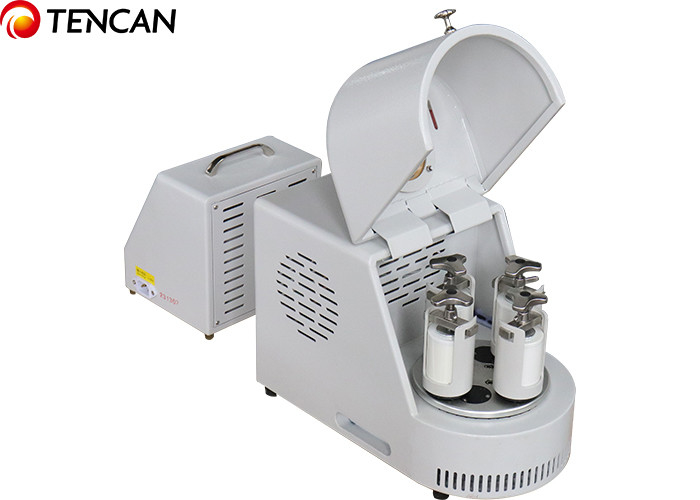

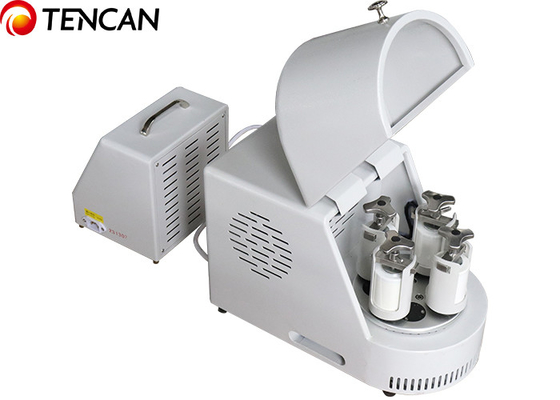

Glovebox Use Lab Planetary Milling Ball Mill with Minimum 0.1μm Output Size
Product Description:
The Super Mini Planetary Ball Mill, also known as XQM-0.2S, is a crucial device utilized for the milling, fine grinding, and mixing of high-tech materials. This equipment is widely used in the fields of nanotechnology, new product development, and small scale production.
Tencan Planetary Ball Mill offers several advantages and features, including a compact and space-saving design, high efficiency, low noise levels, and comprehensive functionality. It is an ideal option for R&D institutions, universities, and enterprises' laboratories for obtaining superior quality powder samples.
The Planetary Ball Mill from Tencan is designed with four working positions, allowing users to obtain a maximum of four samples simultaneously. Additionally, when equipped with vacuum ball mill jars, this machine can be used for grinding under vacuum conditions, making it a versatile instrument.
Model No.XQM-0.2S of the Super Mini Planetary Ball Mill is specifically designed to operate inside a glove box, under an inert gas purification atmosphere. This setup effectively removes water and oxygen during the process and makes it suitable for various applications in industries such as Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection.
Features:
The experiment's consistency and repeatability are ensured by the stable revolving speed of the gear transmission.
The machine adopts the planetary movement principle, resulting in high speed, energy, and efficiency, while also producing granules of small size.
With the capability to produce four powder samples of varying sizes and materials simultaneously, the machine offers convenience and efficiency in experiment preparation.
Controlled by a frequency converter, the machine allows you to set the ideal rotating speed for your desired experimental results. The converter is also equipped with under voltage and over-current protection for the motor.
The planetary ball mill offers multiple functions such as timing power off, self-timing forward and reversal rotation. Depending on your experimental needs, you may choose from various operation modes including one-way direction, alternation, succession, and time setting, to enhance the grinding efficiency.
Technical features of XQM-2S include small volume, multiple functions, low center of gravity, stable performance, compact structure, easy operation, reliable safety, low noise, and minimal loss.
Technical Parameters:
| Product Name | Glovebox Experiment Planetary Ball Mill |
|---|---|
| Ball Mill Type | Planetary Milling Ball Mill |
| Max Production Capacity | 0.066L |
| Rotate Speed | 120-1160rpm |
| Power | 0.09KW |
| Weight | 48kg |
| Feeding Size | Less Than 10mm |
| Working Model | 2 Or 4 Pots One Time |
| Accessories | Zirconia Jars & Zirconia Balls |
| Output Size | Minimum 0.1μm |
| Voltage | 220V-50Hz |
Applications:
The Planetary Ball Mill, manufactured by TENCAN, is a high-efficiency grinding machine designed for laboratory use. It is used for grinding nano powders and fine powders with a minimum output size of 0.1μm. The maximum production capacity of this ball mill is 0.066L.
- High-efficiency grinding machine
- Designed for laboratory use
- Used for grinding nano powders and fine powders
- Minimum output size of 0.1μm
- Maximum production capacity of 0.066L
The Planetary Ball Mill is suitable for a variety of applications, including but not limited to:
- Chemical industry - for grinding chemicals and raw materials
- Pharmaceutical industry - for grinding medicinal substances
- Ceramic industry - for grinding ceramic powders
- Mining industry - for grinding ores and minerals
- Food industry - for grinding food products
- Cosmetic industry - for grinding cosmetic powders
- Efficient and uniform grinding of materials
- High-speed rotation for faster grinding
- Stable and reliable performance
- Easy to operate and maintain
- Compact design for easy storage and transportation
- High-quality materials and construction for long-lasting use
- Customizable options to fit your specific needs
- Professional technical support and after-sales service
- Competitive pricing
- ISO and CE certification for guaranteed quality
The TENCAN Planetary Ball Mill is a reliable and efficient grinding machine suitable for laboratory use. With its high-speed rotation and uniform grinding, it is the perfect choice for grinding nano powders and fine powders in various industries. Trust TENCAN for all your grinding needs and experience the difference in quality and performance.
Customization:
Brand Name: TENCAN
Model Number: XQM-0.2S
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case & Foam
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 500 Sets per Month
Weight: 48kg
Voltage: 220V-50Hz
Accessories: Zirconia Jars & Zirconia Balls
Warranty: 1 Year
Product Name: Glovebox Experiment Planetary Ball Mill
Keywords: Grinding Planetary Ball Mill, Ball Mill Grinder, Ball Milling Machine
Packing and Shipping:
The Planetary Ball Mill will be packaged in a sturdy cardboard box with foam padding to ensure safe transportation.
Inside the box, the product will be wrapped in plastic to protect it from any potential damage during shipping.
The box will also include a user manual and any necessary accessories, such as a power cord or spare parts.
Shipping will be done through a reputable courier or freight company to ensure timely and secure delivery.
The product will be labeled with the necessary shipping information, including the recipient's address and tracking number.
For international orders, all necessary customs documents will be included to facilitate smooth delivery.
Customers can expect their Planetary Ball Mill to arrive in excellent condition and ready to use.
