1-10mm Feed Size 220V Ball Milling Machine For Light Type Horizontal Planetary Mill
Product Details:
| Place of Origin: | Changsha，Hunan， China |
| Brand Name: | TENCAN |
| Certification: | ISO CE |
| Model Number: | WXQM-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywppd Case & Foam |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western union, L/C |
| Supply Ability: | 350 Sets per Month |
|
Detail Information |
|||
| Accessories: | Zirconia Jars & Zirconia Balls | Power: | 0.75KW |
|---|---|---|---|
| Output Size: | Minimum 0.1μm | Customized Serices: | Electronic Touch Panel |
| Weight: | 86kg | Voltage: | 220V-50Hz |
| Key Word: | Light-type Horizontal Planetary Ball Mill | Working Model: | 2 Or 4 Pots One Time |
| High Light: | 220V Horizontal Planetary Mill,10mm Feed Size Ball Mill,Horizontal Ball Milling Machine |
||
Product Description

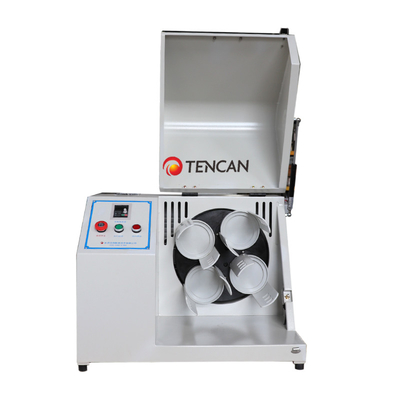

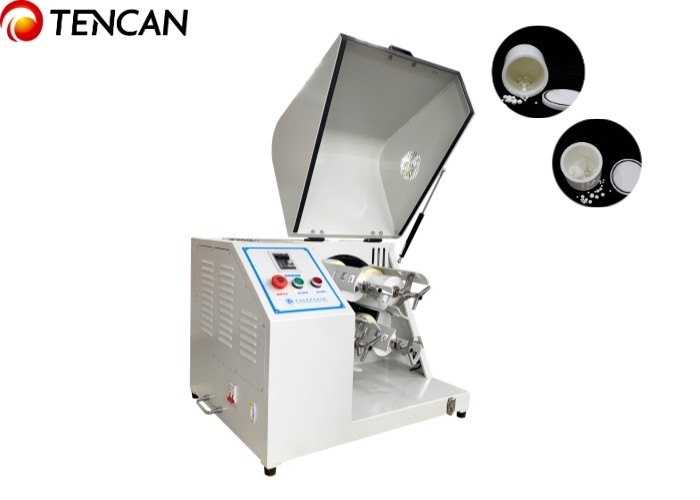

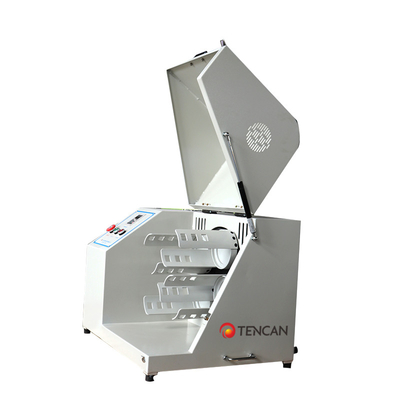

1-10mm Feed Size 220V Ball Milling Machine for Light-type Horizontal Planetary Mill
Product Description:
Horizontal Planetary Ball Mill is an essential device used for the milling, fine grinding, powder mixing, nano powder production, new product development, and small batch production of high-tech materials. With its small size, high efficiency, low noise, and complete functions, Tencan planetary ball mill offers various advantages and features. This equipment is highly recommended for research institutions, universities, and enterprise laboratories for obtaining fine powder samples. Equipped with four working positions, Tencan planetary ball mill can provide up to four samples at a time. Additionally, by using vacuum ball mill jars for grinding, this machine is also suitable for producing powder samples under vacuum conditions.
Horizontal Planetary Ball Mill has four ball grinding tanks installed on one turntable. The rotation of the turntable causes the tank axis to make planetary movements, resulting in the balls in the tanks grinding and mixing the samples in a high-speed motion. This machine can smash and blend various types of materials using dry or wet grinding methods. It can produce output powder with a minimum granularity of 0.1μm and is suitable for long-term experiments and closed milling operations.
Features:
The operation of this machine is very simple and user-friendly.
The gear used in this machine is specially designed to minimize noise, providing a quieter working environment.
The mill pot of this machine is designed in a horizontal structure, which prevents materials from sticking to the inner walls of the jar and sinking to the bottom, ensuring a smooth and efficient operation.
Technical Parameters:
| Feeding Size | Less Than 10mm |
|---|---|
| Key Word | Light-type Horizontal Planetary Ball Mill |
| Voltage | 220V-50Hz |
| Customized Services | Electronic Touch Panel |
| Warranty | 1 Year |
| Working Model | 2 Or 4 Pots One Time |
| Weight | 86kg |
| Power | 0.75KW |
| Max Production Capacity | 1.98L |
| Rotate Speed | 70-670rpm |
Customization:
Brand Name: TENCAN
Model Number: WXQM-6
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case & Foam
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 350 Sets per Month
The TENCAN WXQM-6 Planetary Ball Mill is a high-tech milling device designed for efficient grinding of various materials. It is widely used in industries such as electronics, ceramics, chemicals, and pharmaceuticals.
Our Planetary Ball Mill can be tailored to meet your specific needs with our customized services. We understand the importance of flexibility and efficiency in the modern industry, and our electronic touch panel allows for easy control and adjustment of the milling process. With our 2 or 4 pots one time working model, you can increase your production capacity and save time and effort.
We stand by the quality of our product and offer a 1-year warranty for the TENCAN WXQM-6 Planetary Ball Mill.
To ensure optimal performance, our Planetary Ball Mill comes with high-quality zirconia jars and zirconia balls as accessories.
The minimum output size of our Planetary Ball Mill is 0.1μm, making it suitable for fine grinding and micronizing of materials.
FAQ:
- Q: What is the brand of this product?
A: The brand name of this product is TENCAN. - Q: What is the model number of this product?
A: The model number of this product is WXQM-6. - Q: What is the place of origin for this product?
A: The place of origin for this product is Changsha, Hunan, China. - Q: Is this product certified?
A: Yes, this product is certified with ISO CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
- Q: Is the price negotiable for this product?
A: Yes, the price for this product is negotiable. - Q: How is this product packaged?
A: This product is packaged in a Plywood Case & Foam. - Q: How long is the delivery time for this product?
A: The delivery time for this product is 7-15 days. - Q: What are the payment terms for this product?
A: The payment terms for this product are T/T and Western Union. - Q: What is the supply ability for this product?
A: The supply ability for this product is 350 sets per month.
